General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• Use an area approximately 5’ × 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
• For quickest assistance, have product number EC18046 and your box available.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18046
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Product Specifications:

• Overall Width: 48½ in
• Overall Height: 73 in
• Ground clearance: ⅞ in
• Space between slats: ⅝ in

A — Left Post (1)

1¾" x 1¾" x 72⅞"

B — Right Post (1)

1¾" x 1¾" x 72⅞"

C — Wooden Slats (14)

⅝" x 4½" x 47¼"

D — Spacer (28)

E — Post Cap (2)

F — 1" Self-Drilling Stainless Steel Screw (8)

Deck Mount

Power Drill

¼" Wood Drill Bit

¼" Lag Screws 3" Length (4)

Matching Driver Bit

Patio Mount

Hammer Drill

¼" Concrete Drill Bit

Hammer

¼" Concrete Wedge Anchor 2¼ Length (4)

Matching Wrench

• Assemble on box or other smooth surface to prevent scratching

• Insert (2) Spacers (D) and (1) Wooden Slat (C) into Left and Right Posts (A & B).
• Align spacer and board channel with post fin.

• Slide (2) Spacers (D) and (1) Wooden Slat (C) into the top of each Post (A & B).

• Push on the sides of your posts (A & B) to make square.
• Insert (2) 1" Self-Drilling Stainless Steel Screws (F) into Posts (A & B) at the bottom of the unit.

• Slide Wooden Slat (C) to the bottom of your channel.
• Stand screen upright.

• Slide (12) Wooden Slats (C) and (24) Spacers (D) into Posts (A & B) through the top of the unit.

• Insert (2) 1" Self-Drilling Stainless Steel Screws (F) into Posts (A & B).
• Rotate screen 180 degrees.

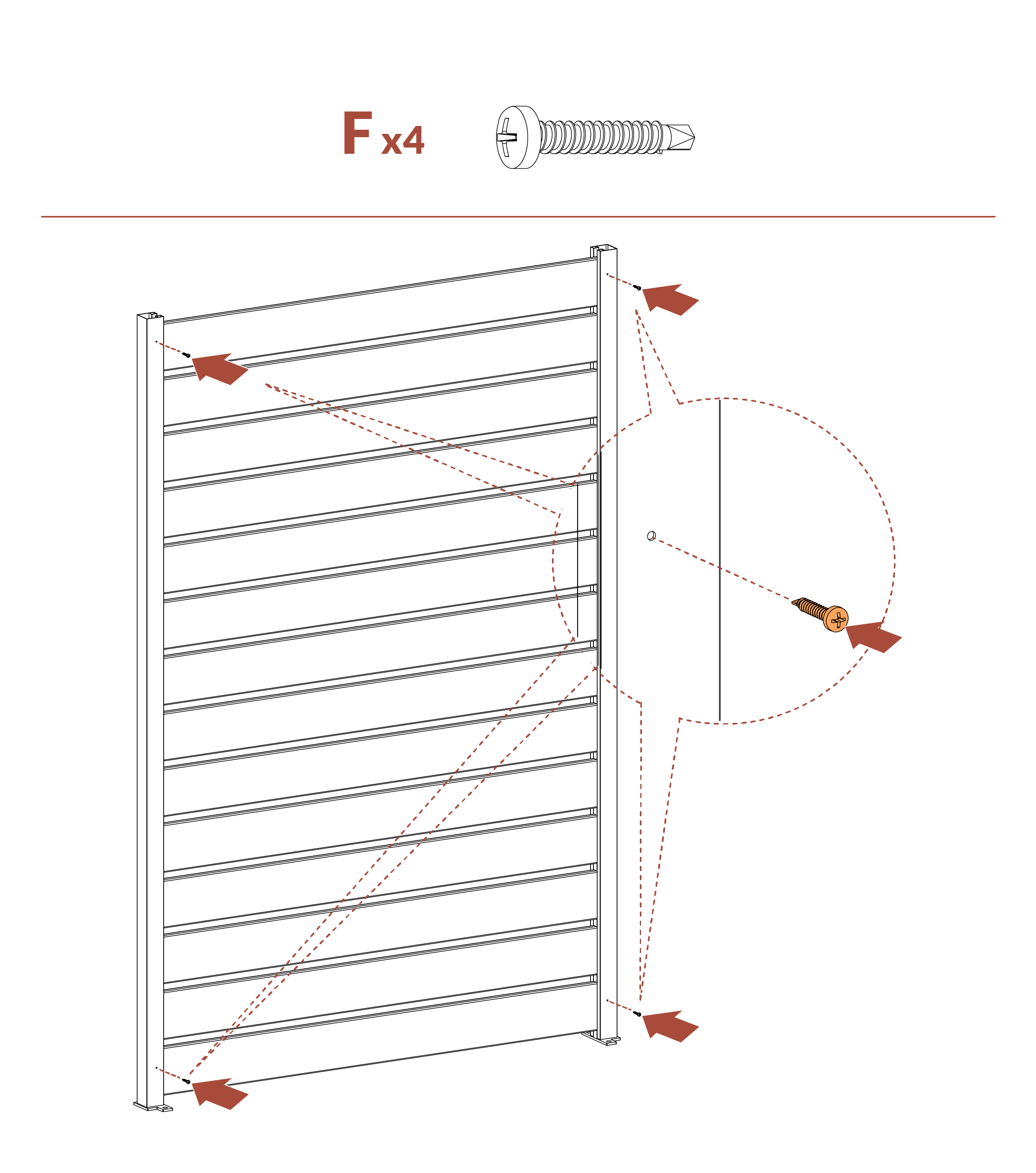

• Insert (4) 1" Self-Drilling Stainless Steel Screws (F) into Posts (A & B).

• Install (2) Post Caps (E) onto Posts (A & B).

• Surface mounting hardware is not included
• Follow the mounting hardware manufacturer’s instructions to ensure proper and safe installation

Deck Mounting Step 1

• Use pre-routed holes on foot of Posts (A & B) to mark on surface.

Deck Mounting Step 2

• If mounting to deck boards only, use a support block underneath

Deck Mounting Step 3

• Use a drill to install hardware into pre-drilled holes.

• Surface mounting hardware is not included
• Follow the mounting hardware manufacturer’s instructions to ensure proper and safe installation

Surface Mounting Step 1

• Ensure there is at least 3" between the edge of the concrete and the surface mount.
• Use pre-routed holes on foot of Posts (A & B) to mark on surface.

Surface Mounting Step 2

• Use a drill and drill bit to make holes in concrete to install wedge anchors.

Surface Mounting Step 3

• Use a hammer to tap wedge anchors into pre-drilled holes over concrete.

Surface Mounting Step 4

• Place Posts (A & B) over exposed portions of wedge anchors.

Surface Mounting Step 5

• Use a wrench to secure nut and washer on wedge anchor.
