EC18031 Sierra Privacy Screen

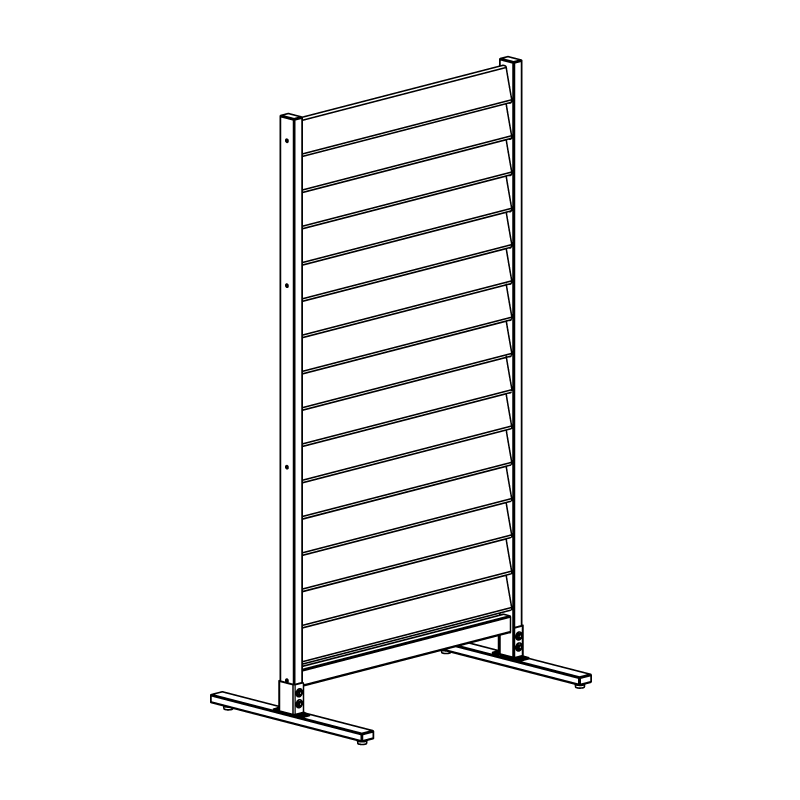

Sierra Wood Freestanding Privacy Screen
EC18031
Approximate assembly time for 30 min (Screen Assembly) / 60 min (Surface Mounting)
Click here to watch an installation video
Introduction
General Information
Important Safety Notes:
- Check the inside of the larger pieces in your box for other materials packed inside.
- We recommend an area approximately 5’ x 8’ for unobstructed assembling.
- You should not need to use excessive force when assembling components.
- No free replacement parts will be provided for wind-related damage.
Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.
Need Help or Replacement Parts?
Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.
If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.
- Website: https://parts.nychbrands.com
- Email: support@encloscreens.com
- Phone: 704-892-5222 or 877-234-6196
Customer service agents are available 9am–5pm EST, Monday–Friday.
For Quick Assistance:
- Have reference item number EC18031
- Provide the specific part name
- Include the batch lot number
Product Specifications

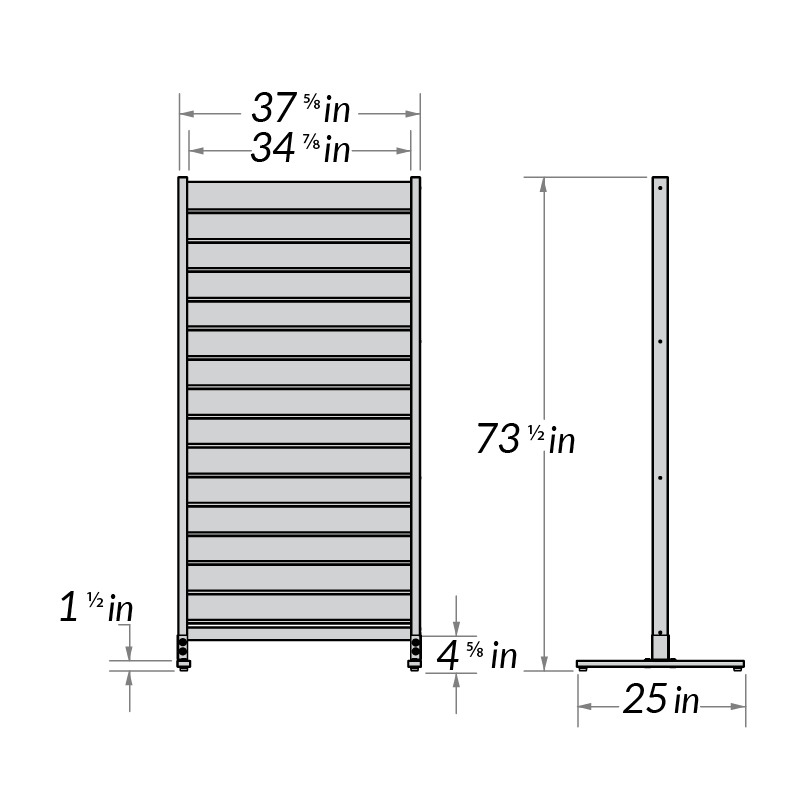

Detailed Dimensions & Specifications
Product Specifications:
- Overall height: 73 ½ in
- Overall width: 37 ⁵⁄₈ in
- Foot length: 25 in
- Tipping may occur if left freestanding in areas with wind exposure
Part Identification
A. Post (1)
1 ½" x 2 ³⁄₈" x 72"
B. Post 2 (1)
1 ½" x 2 ³⁄₈" x 72"

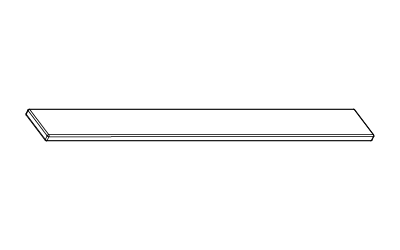

C. Slat (15)
⁵⁄₈" x 4 ½" x 36 ¾"

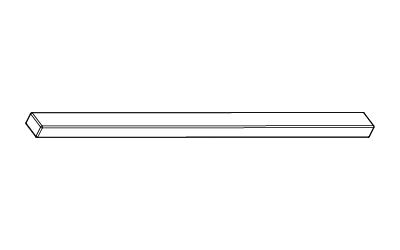

D. Rail (2)
1 ¼" x 2" x 36 ¾"

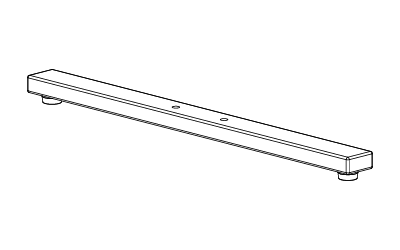

E. Feet (2)
1" x 2" x 25"
F. Joiner Bracket (2)

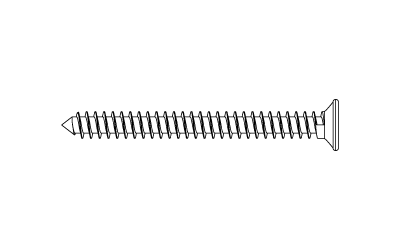

G. M5×40mm Wood Screw (8)

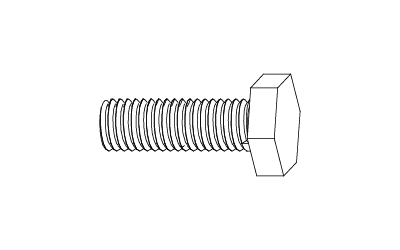

H. M6×30mm Bolt (4)

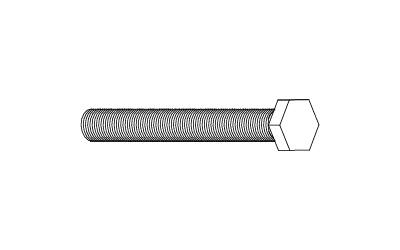

I. M6×80mm Bolt (4)

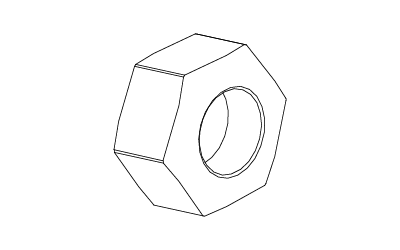

J. Nut (4)

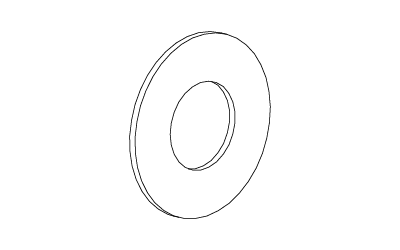

K. Washer (12)

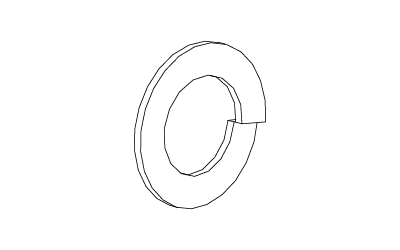

L. Lock Washer (8)

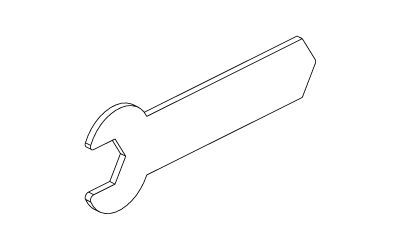

M. Wrench (2)

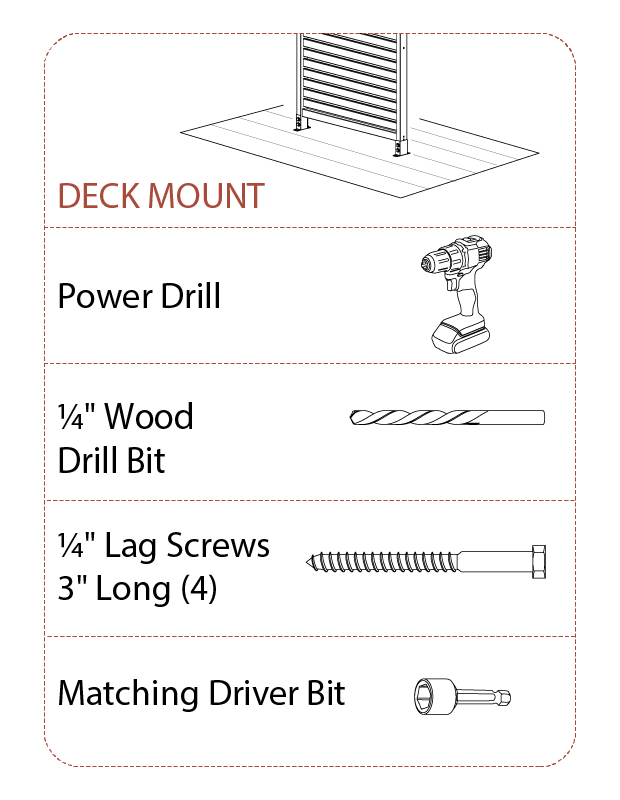

Tools & Optional Hardware (Not Included)
Assembly Step 1
- We recommend 2 people for a smoother assembly.
Assembly Step 2
Assembly Step 3
Assembly Step 4
Assembly Step 5
Surface mounting is recommended. Screen does not serve as a substitute for a security railing.

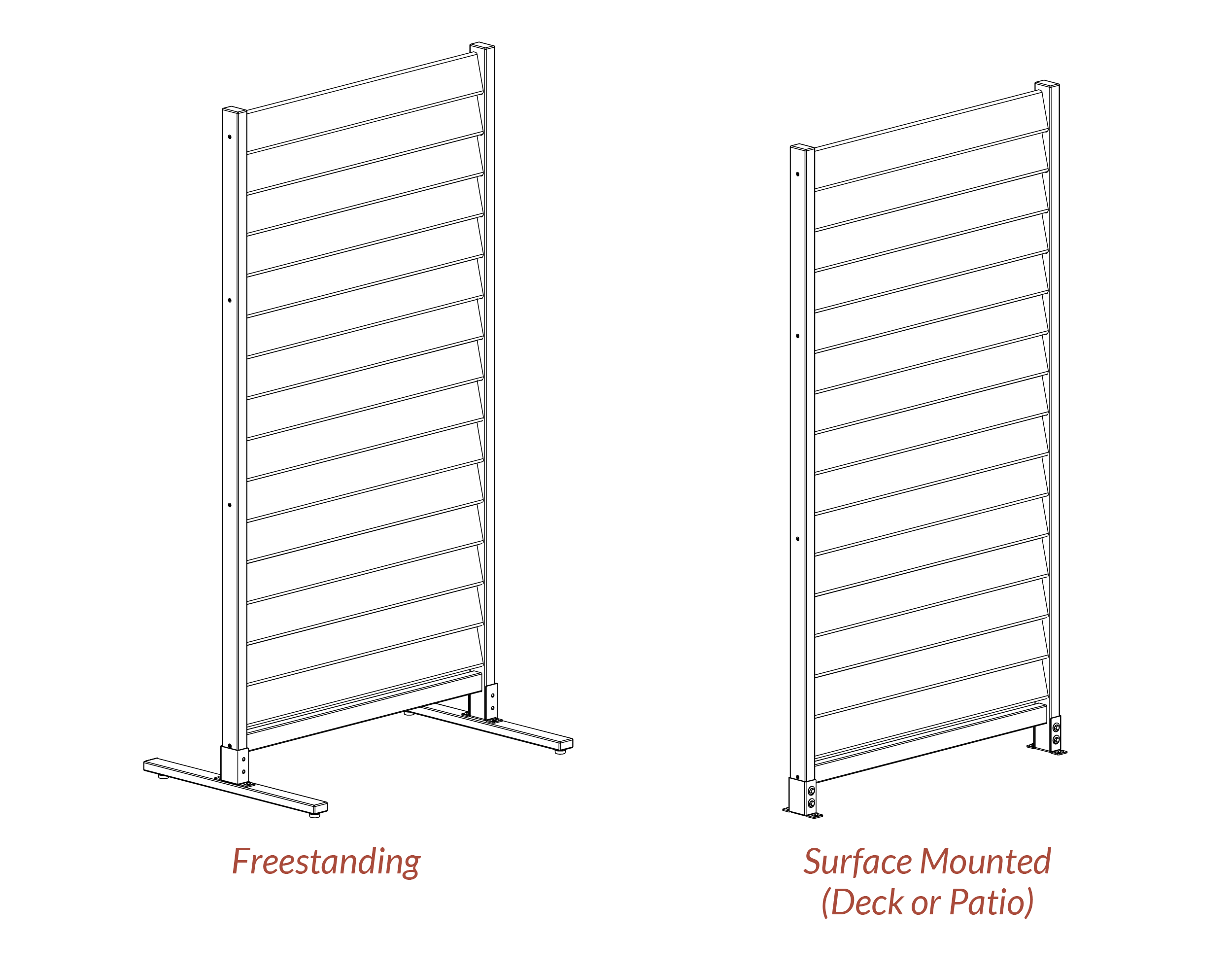

Freestanding Installation
Recommended Only For Indoor Use or Low-Wind Environments
Freestanding Step 1:
Freestanding Step 2:

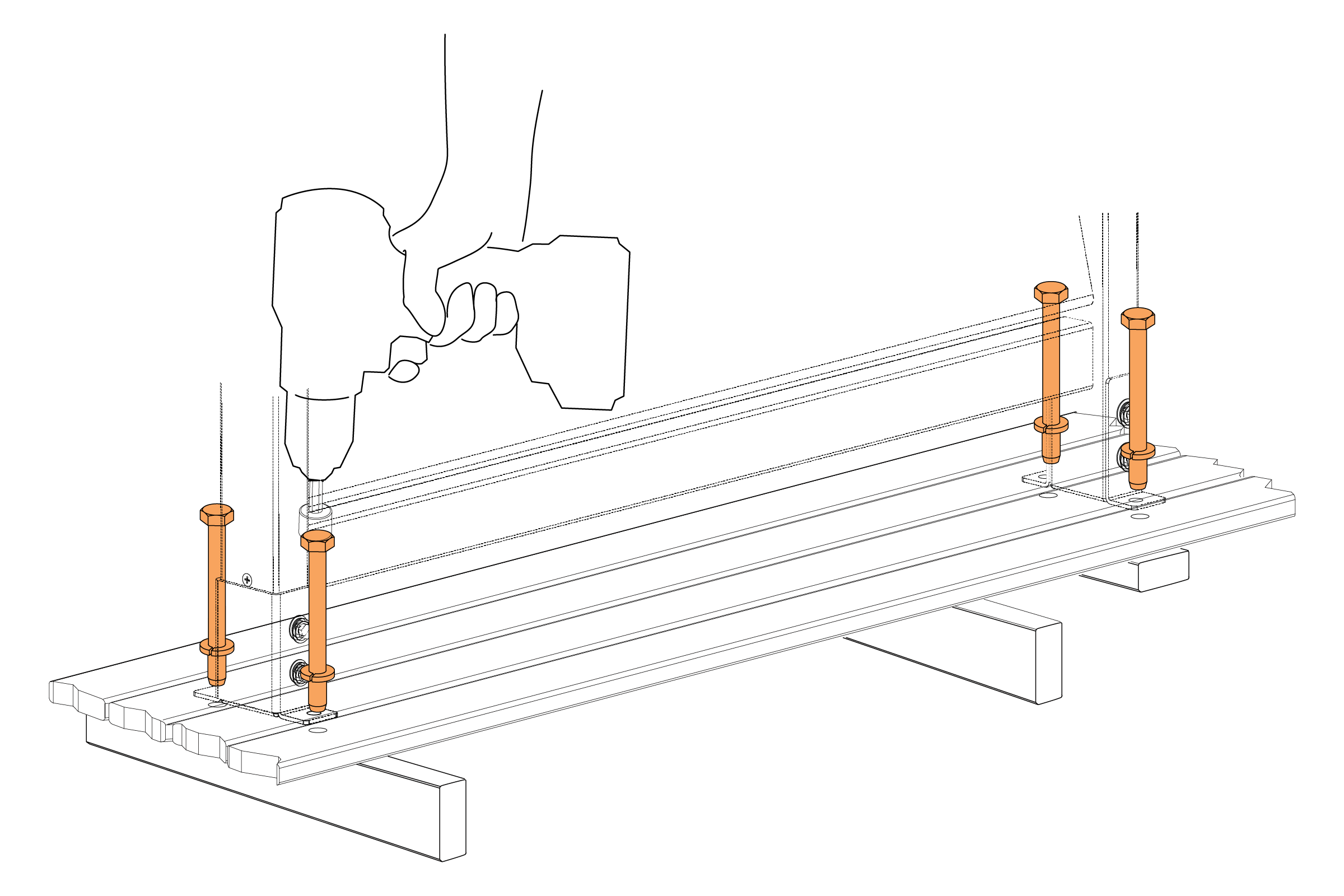

Surface Mounted (Deck)

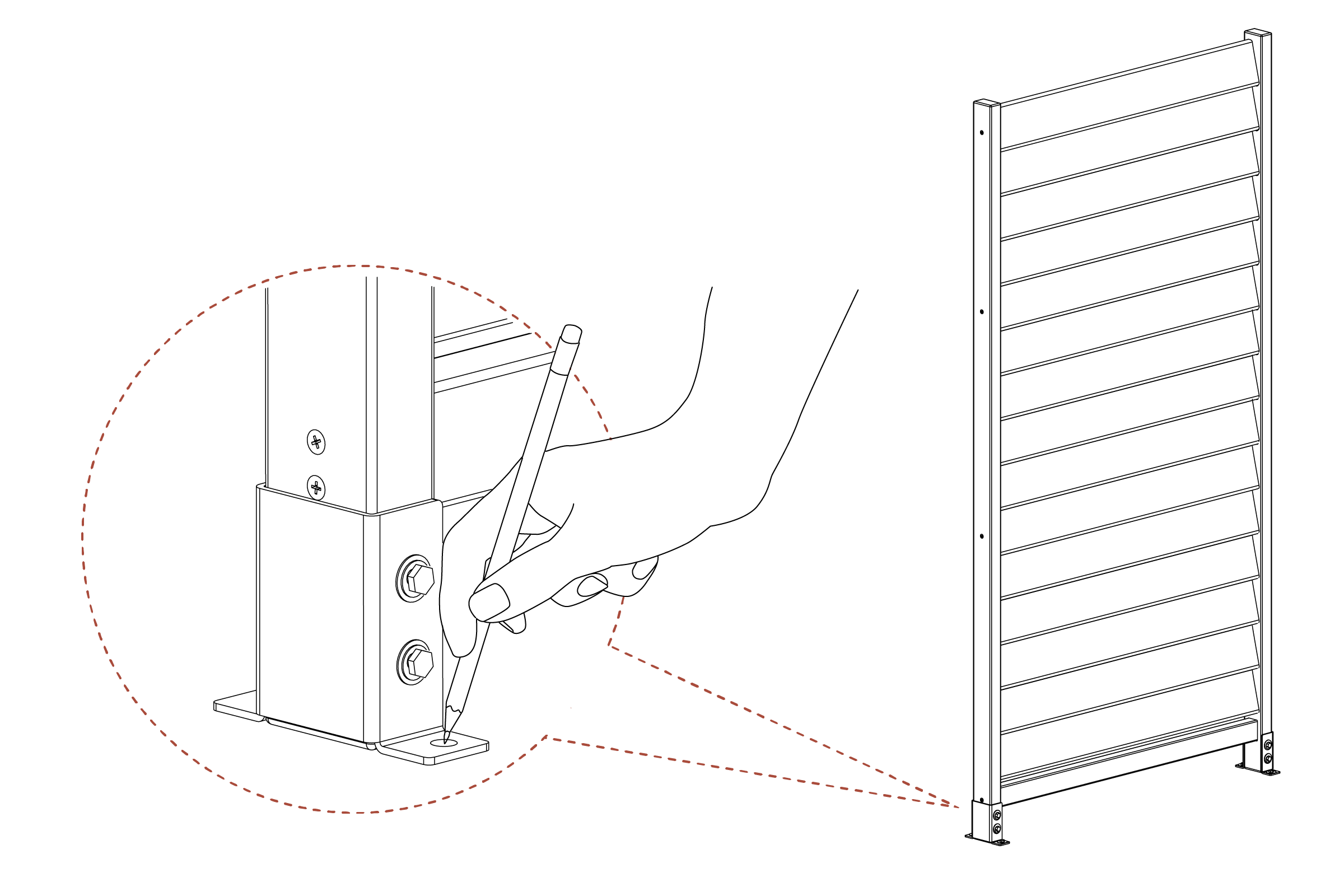

Surface Mounted Deck Step 1
Surface Mounted Deck Step 2

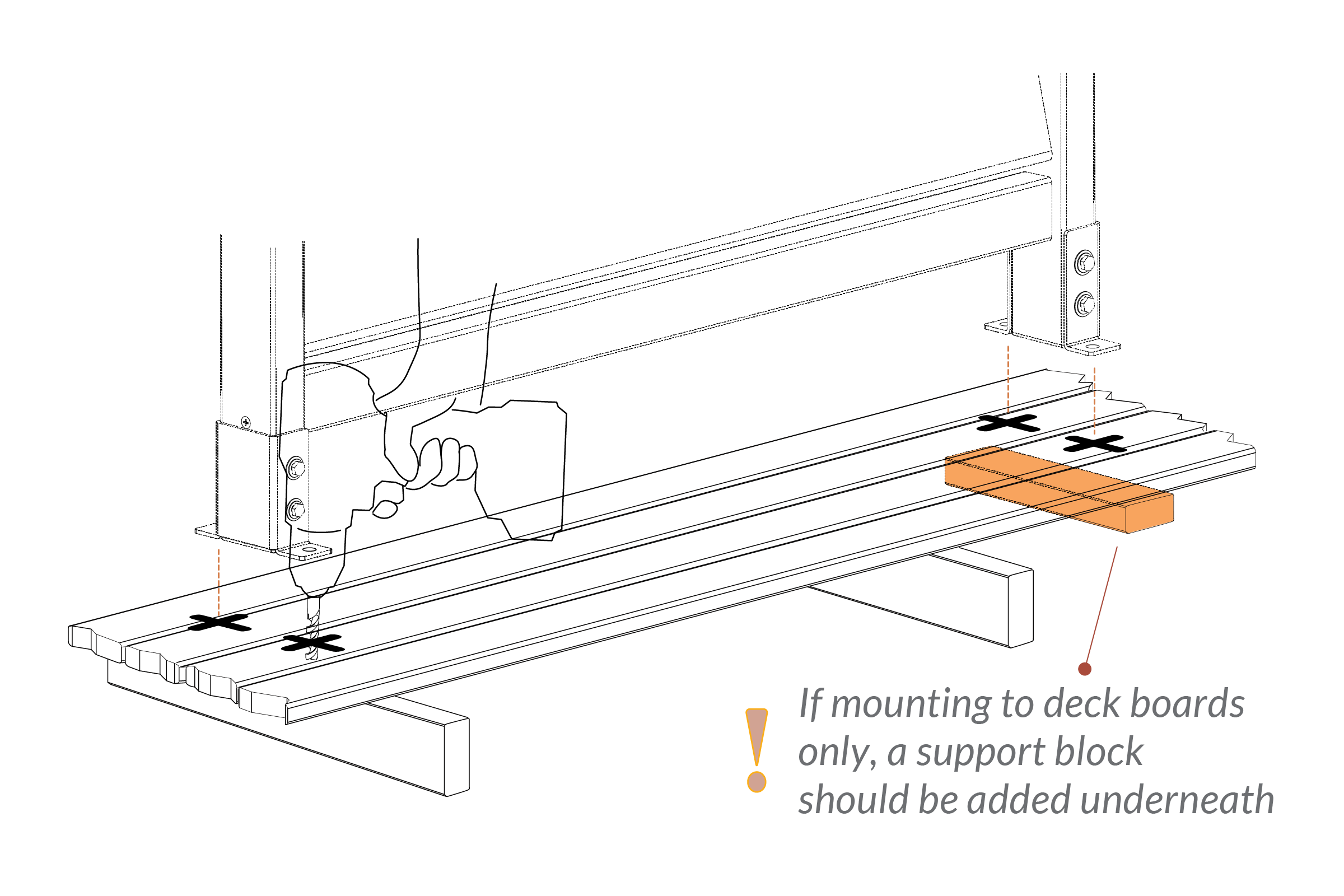

Surface Mounted Deck Step 3
- Surface mounting hardware not included
- Refer to mounting hardware instructions to ensure proper installation.
Surface Mounted Deck Step 4

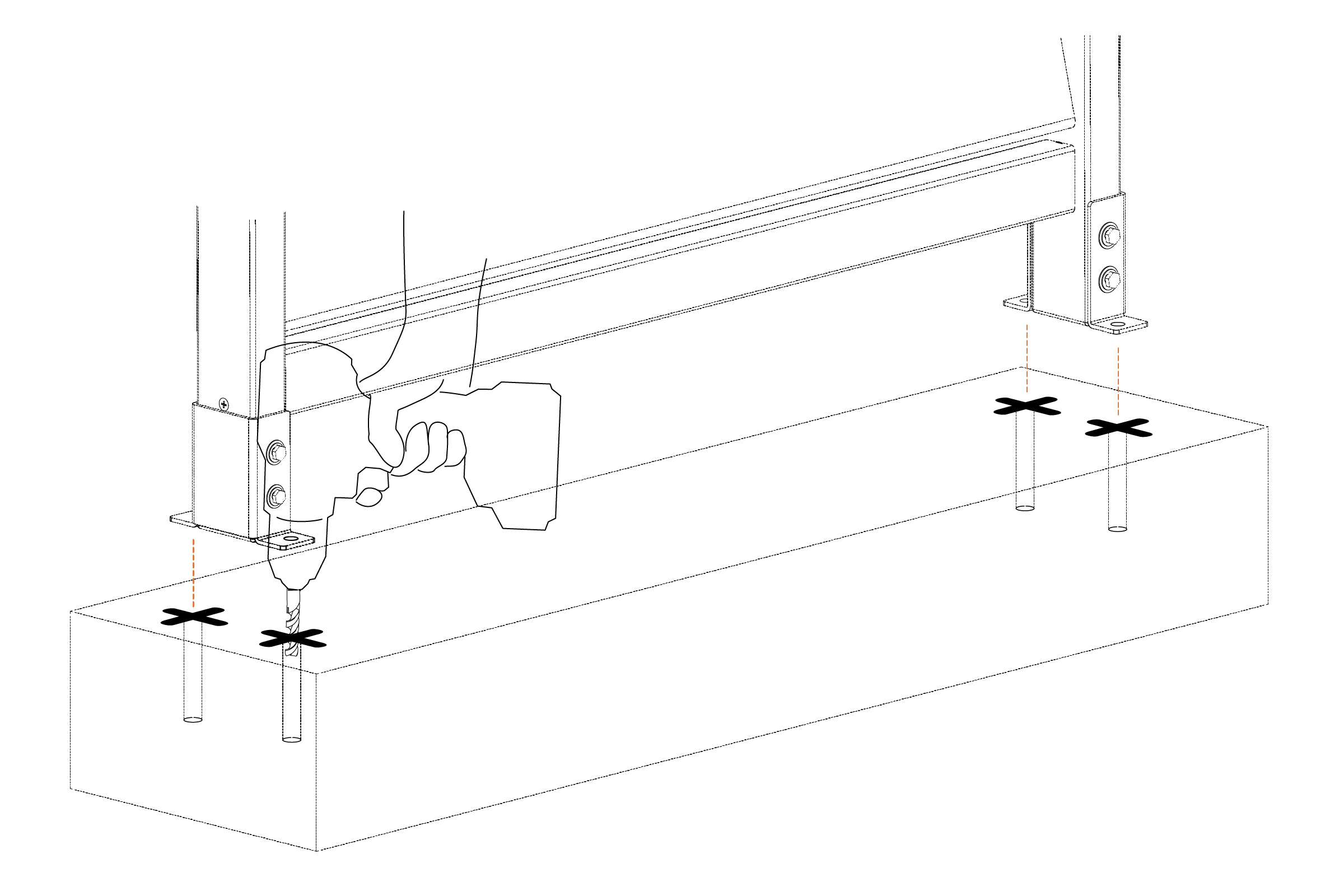

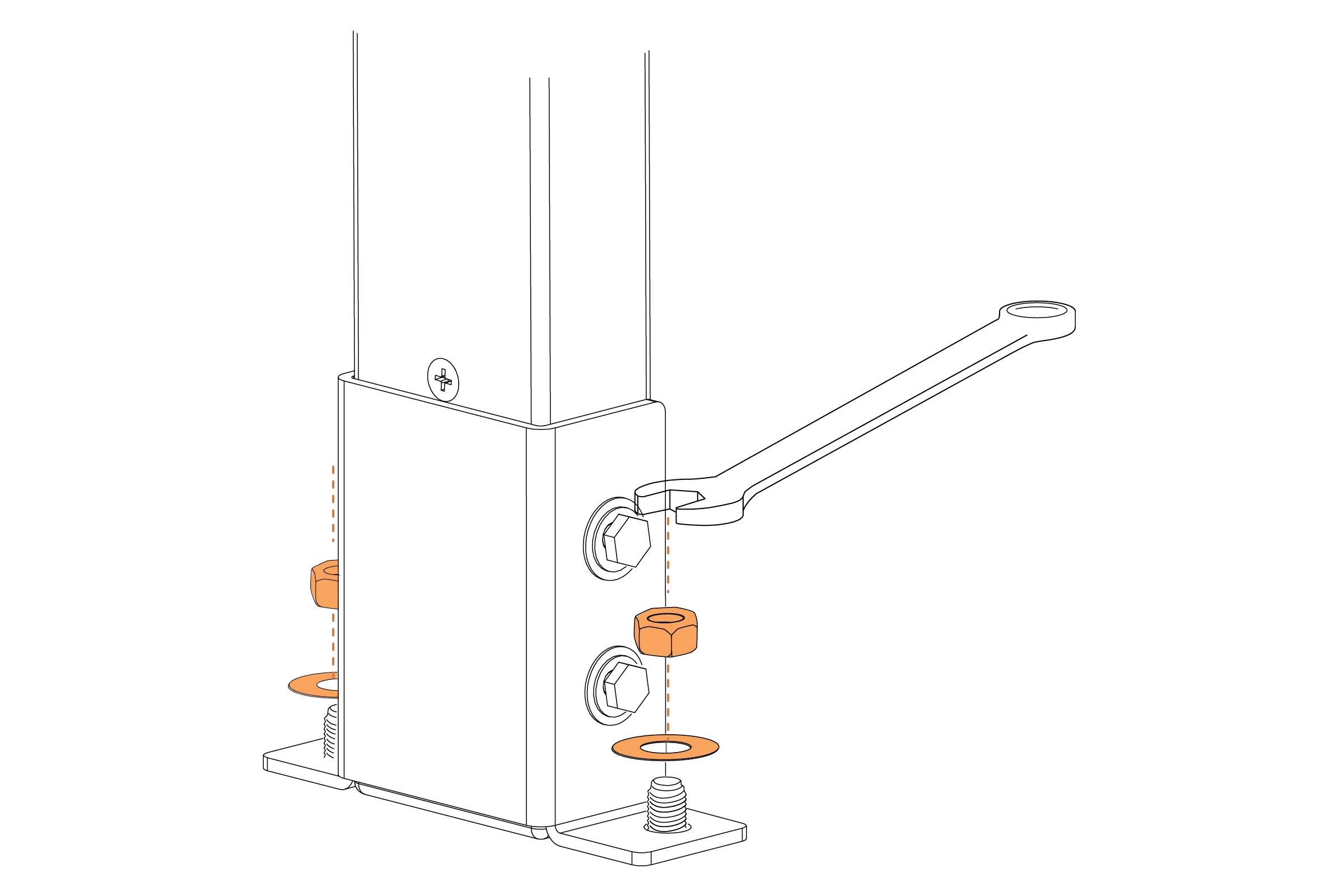

Surface Mounted (Patio)
Surface Mounted Patio Step 1
Surface Mounted Patio Step 2
Surface Mounted Patio Step 3
- Surface mounting hardware not included
- Refer to mounting hardware instructions to ensure proper installation.
Surface Mounted Patio Step 4
Surface Mounted Patio Step 5
Surface Mounted Patio Step 6
Need Help?
- Email: support@encloscreens.com
- Phone: 704-892-5222 or 877-234-6196
- Text: 980-580-6508
