General Information

Important Safety Notes:

• Check inside larger pieces in the box for additional packed materials before assembly.
• Assemble components on a non-abrasive surface (such as the shipping box) to avoid scratching.
• Do not use excessive force when assembling components.
• We recommend an open area approximately 5 ft × 8 ft for unobstructed assembly.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18029
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Front View

Side View

Bird's Eye View

Product Specifications:

• Panel Width: 49⅝ in
• Panel Height: 50⅜ in
• Post Width: 3 in
• Stake Depth in Ground: 11½ in

Drill

Mallet

Wood Block

Tulip Bulb Auger

Level

We recommend 2 people for a smoother assembly and installation.

A — Post (3)

3 in × 3 in × 48 in

B — Board (20)

⅝ in × 4½ in × 44 in

C — Stake (2)

1¼ in × 1 in × 16 in

D — Dowel (6)

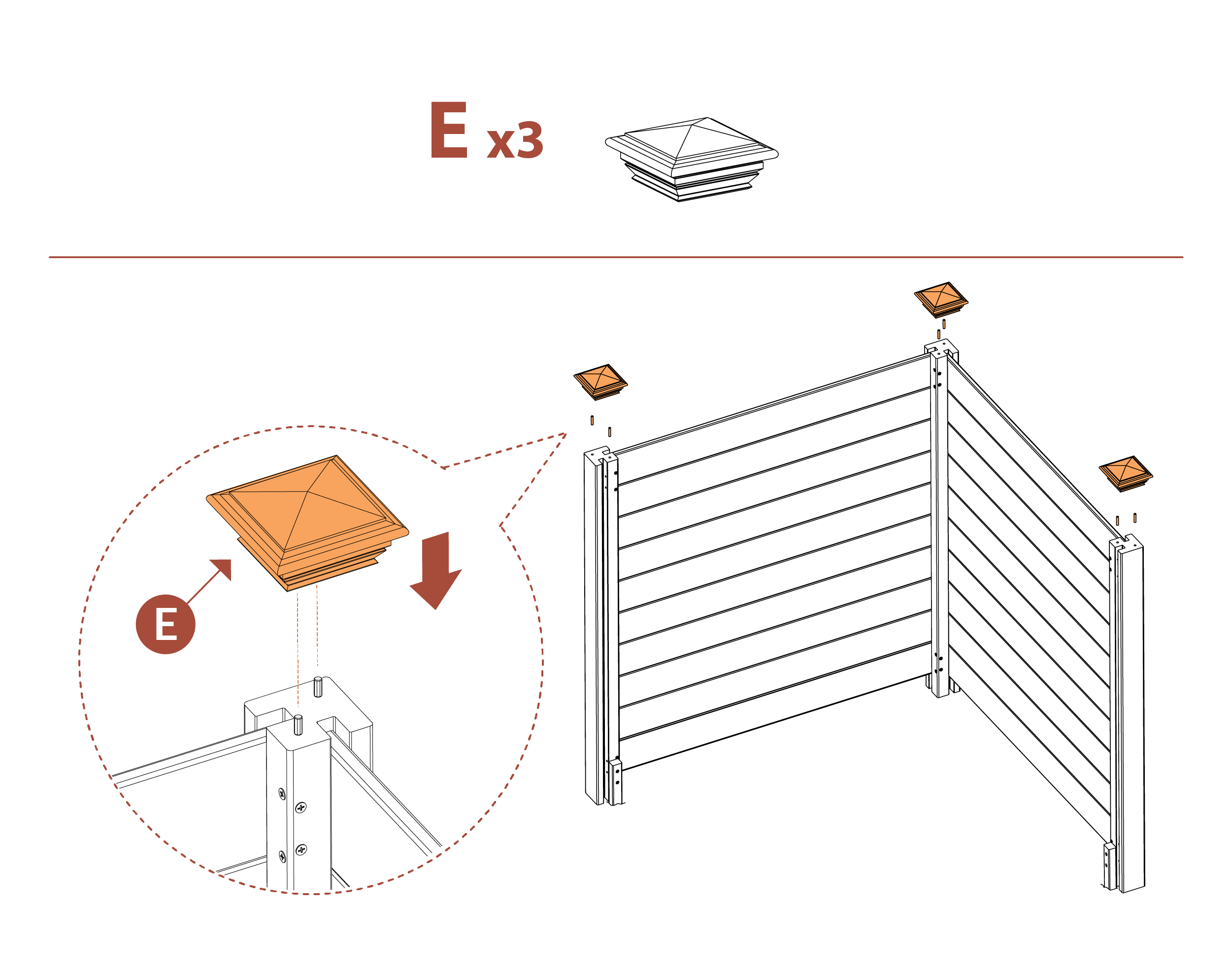

E — Post Cap (3)

F — #10 2⅜ in Wood Screw (4)

G — #8 2½ in Wood Screw (16)

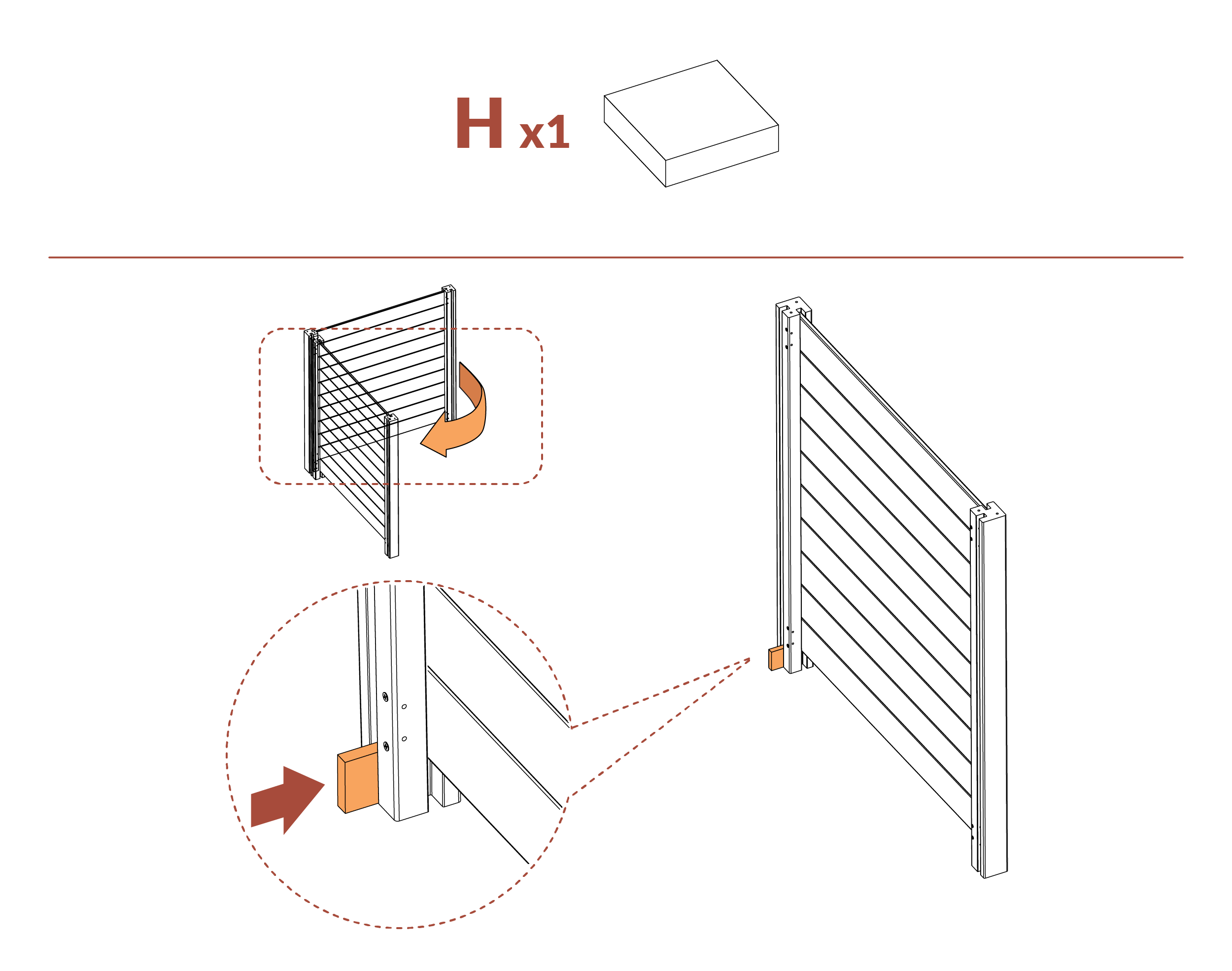

H — Wood Spacer (2)

Check it out!

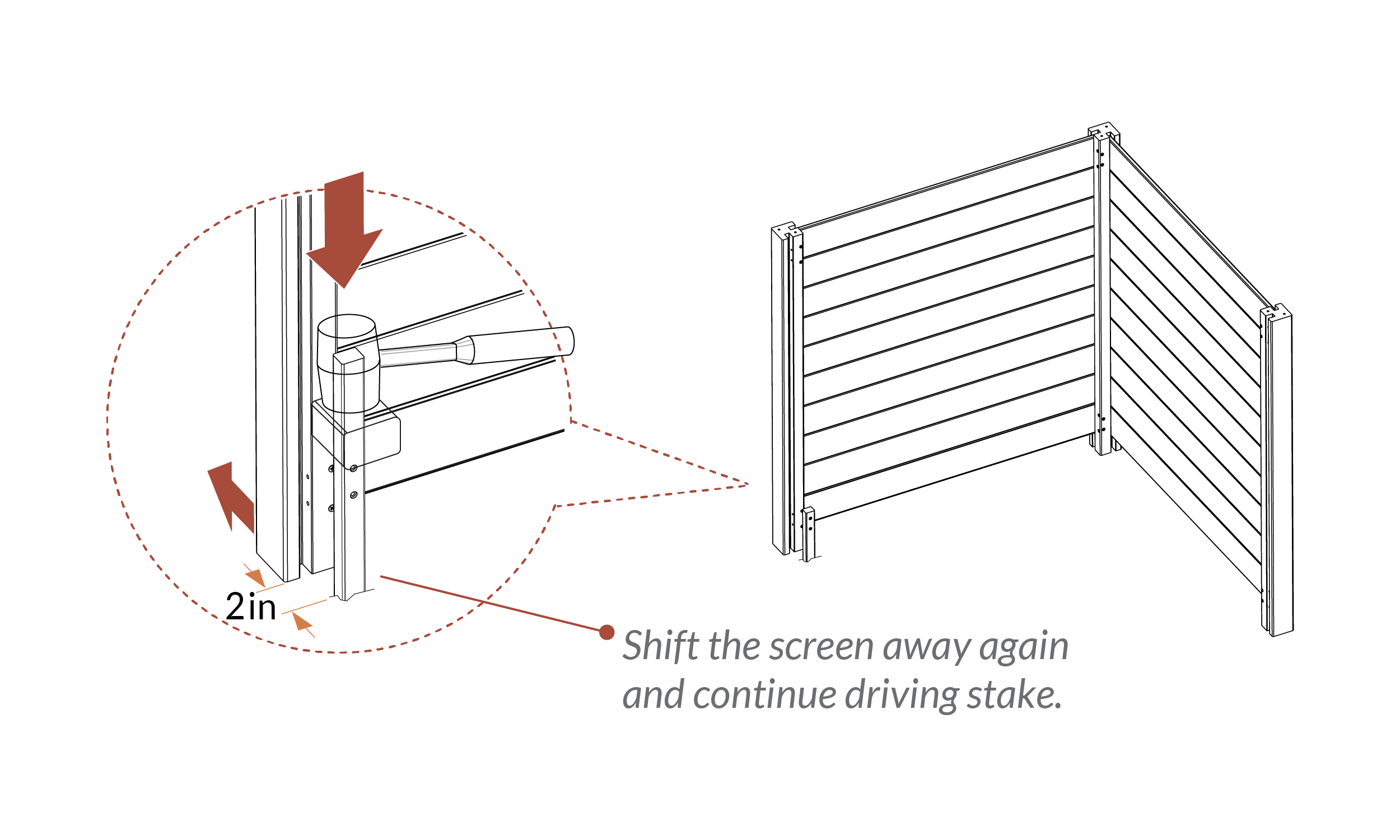

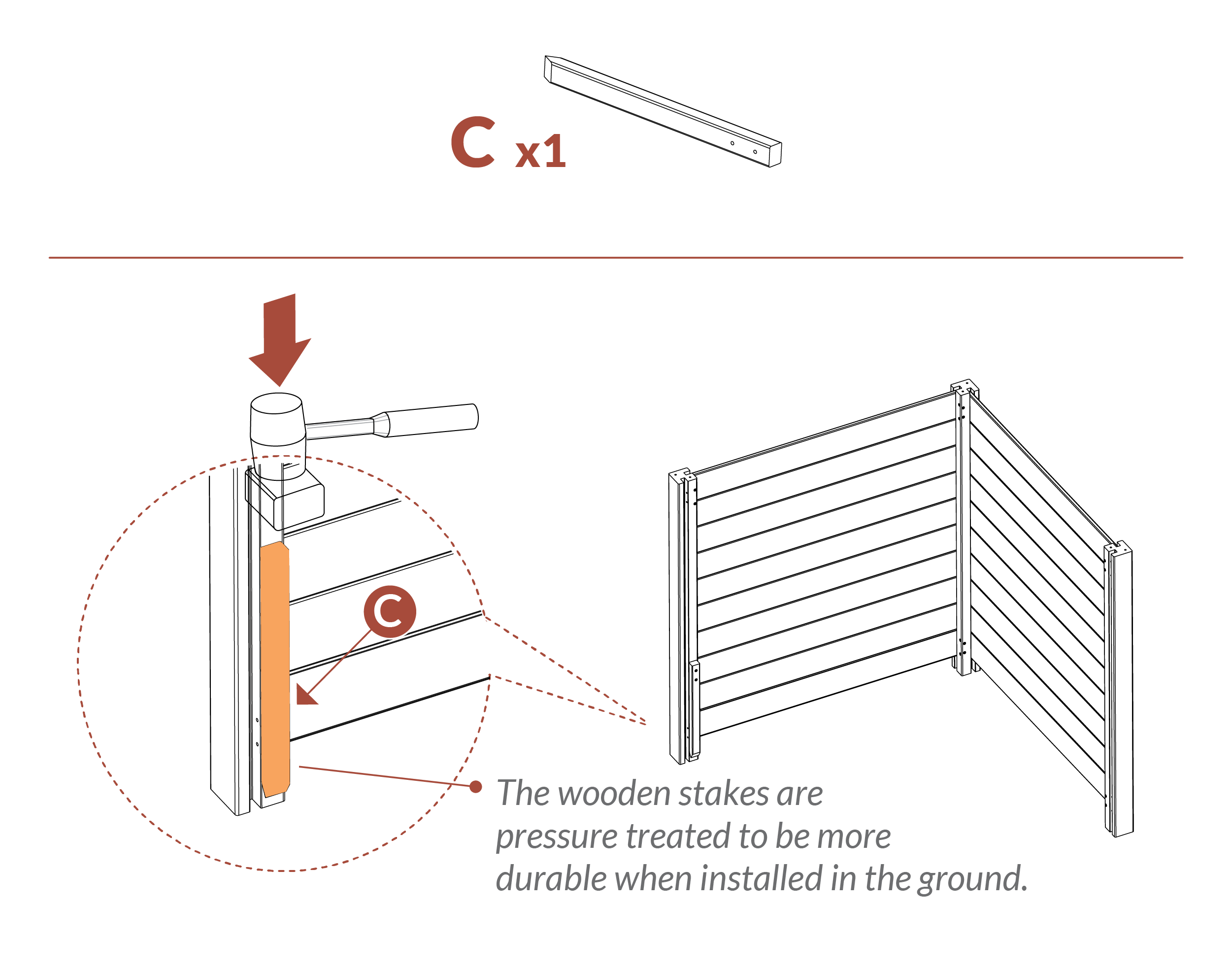

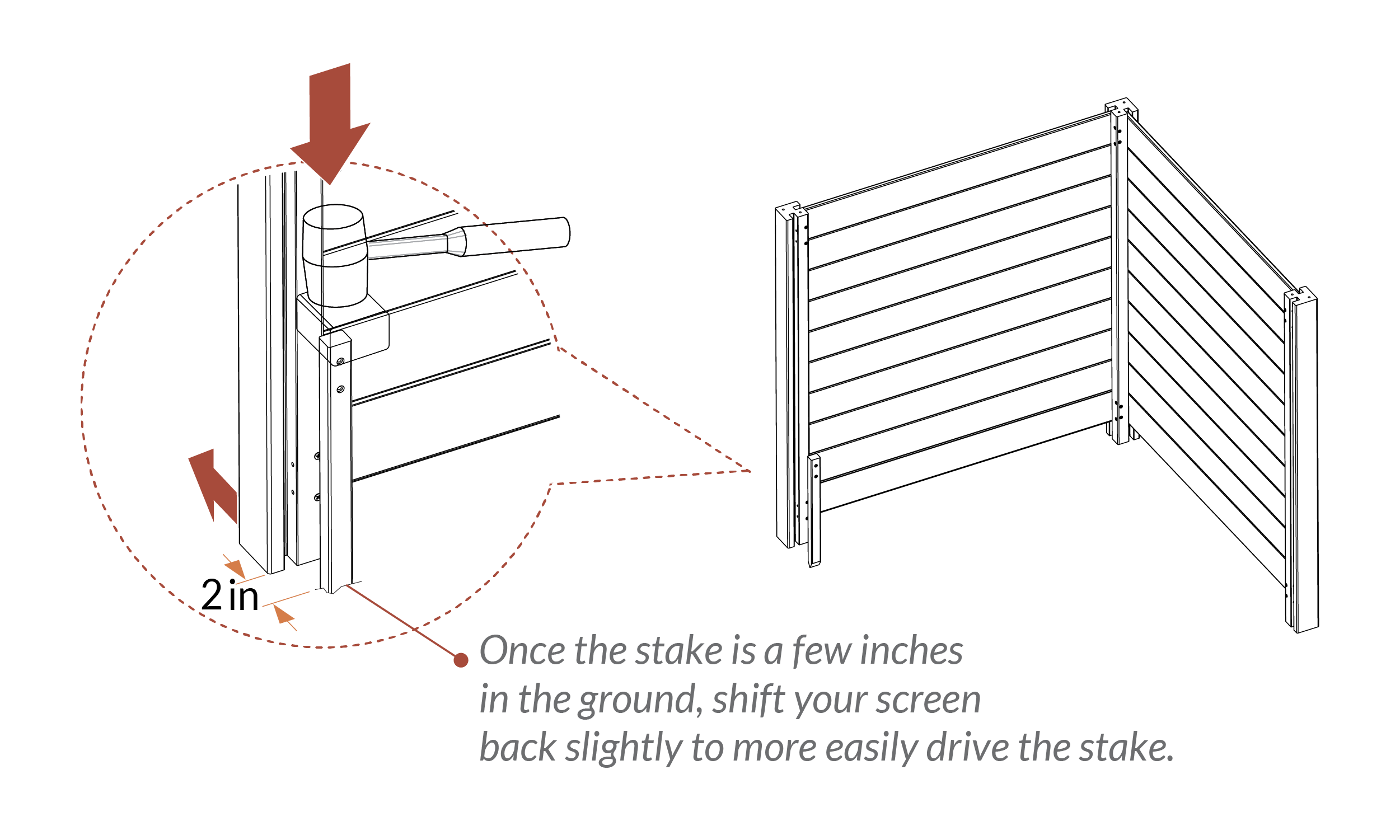

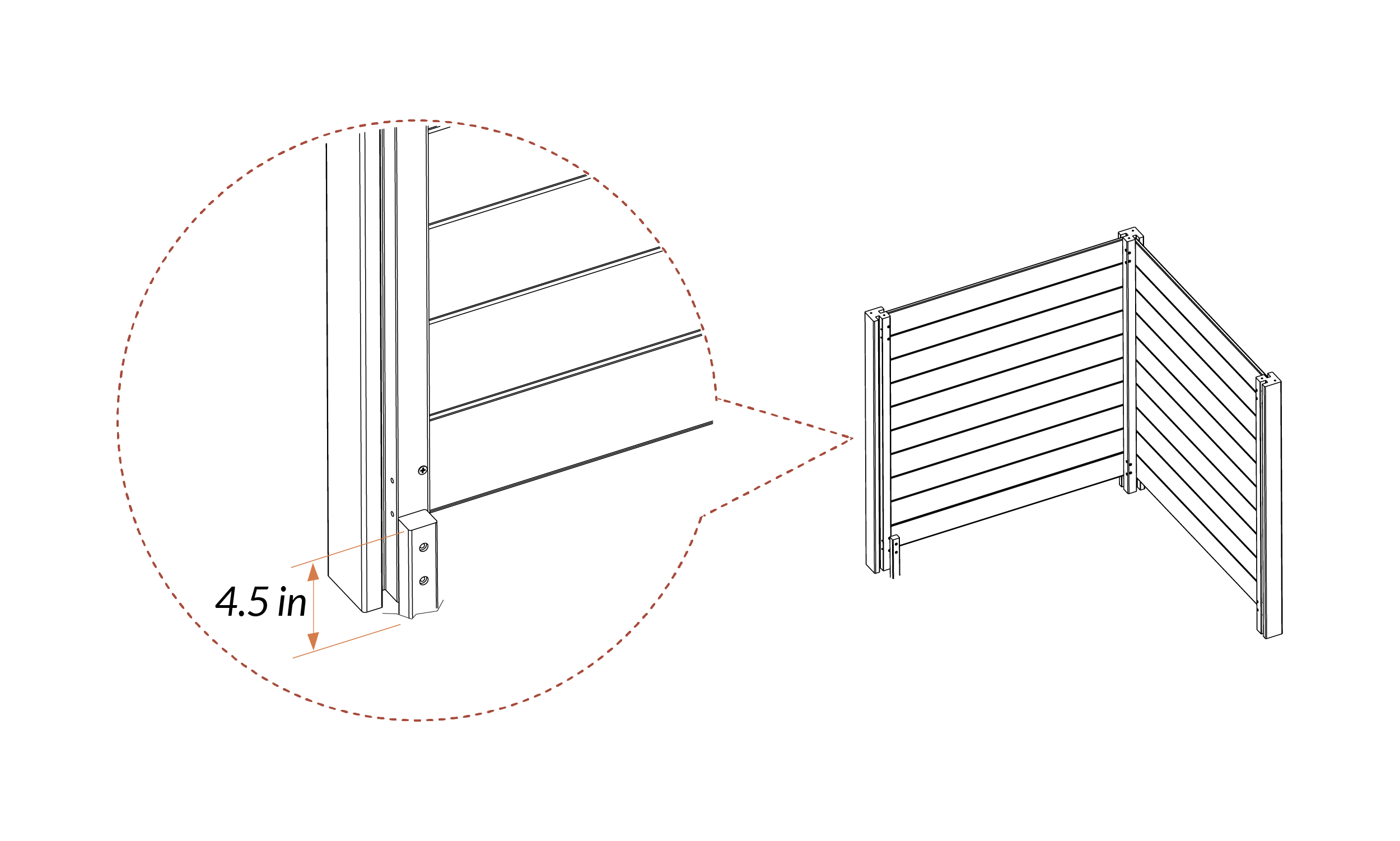

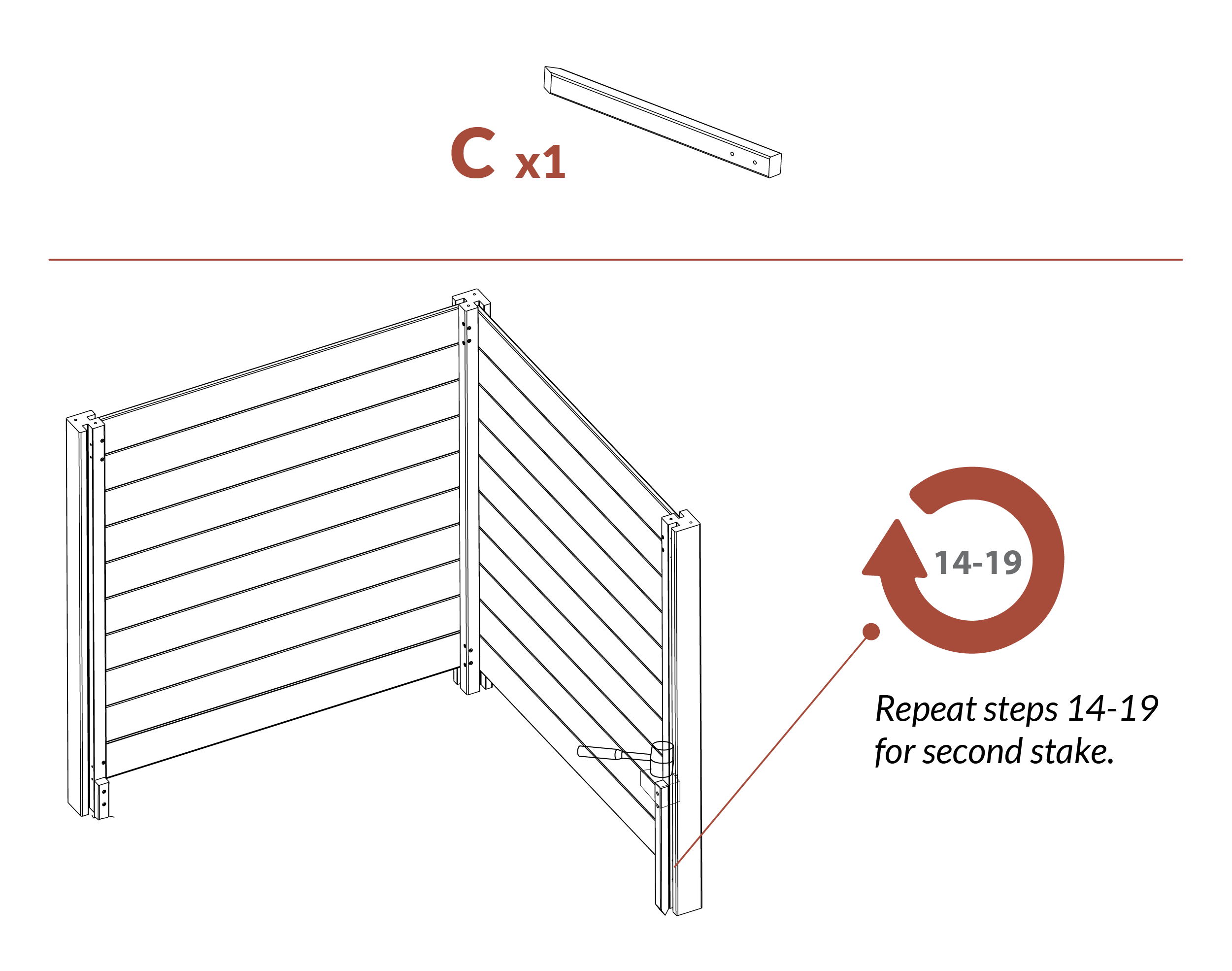

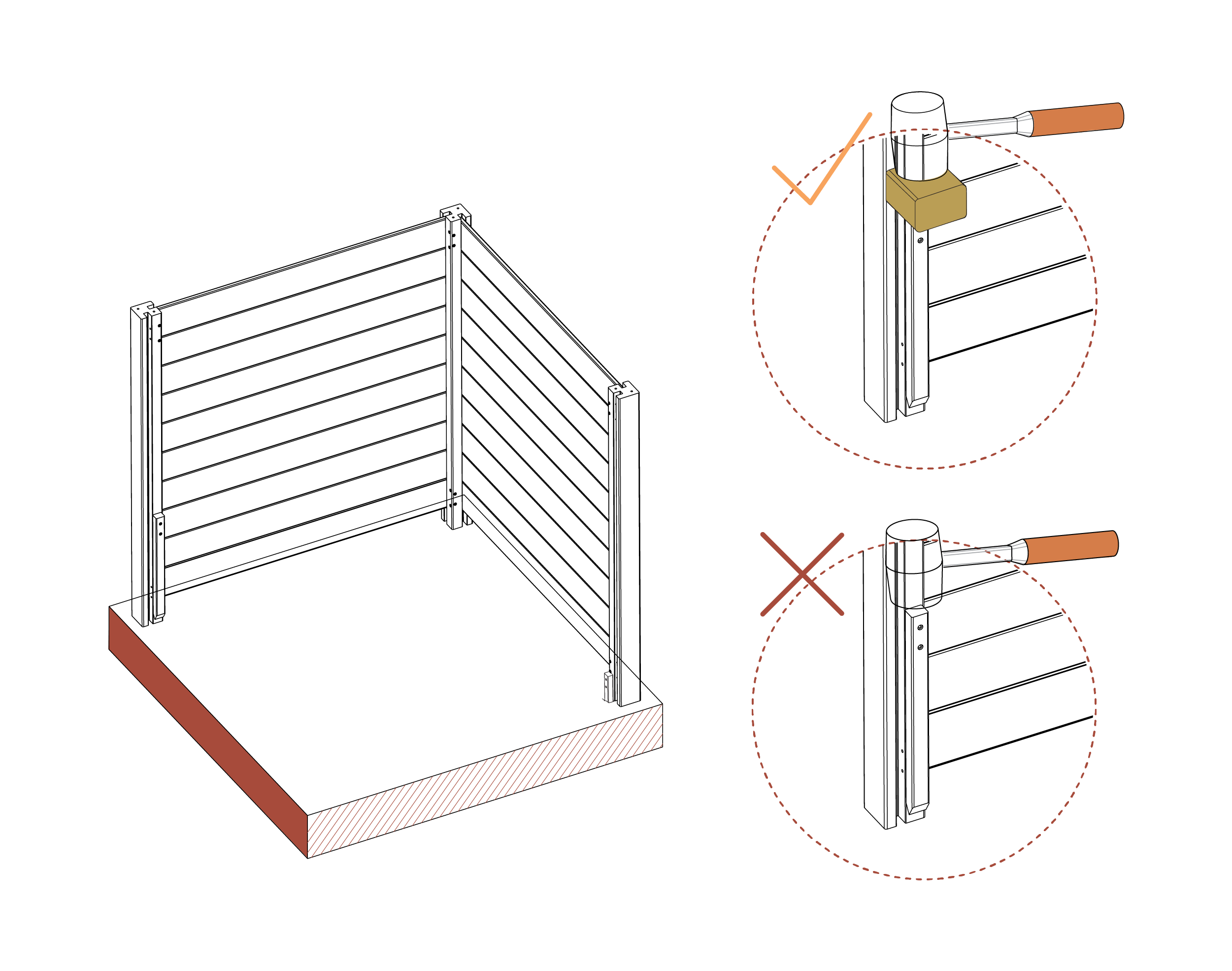

• Watch this video on how the post anchors should be inserted into the ground or follow steps 14-21.
