EC18039 Assembly Instructions

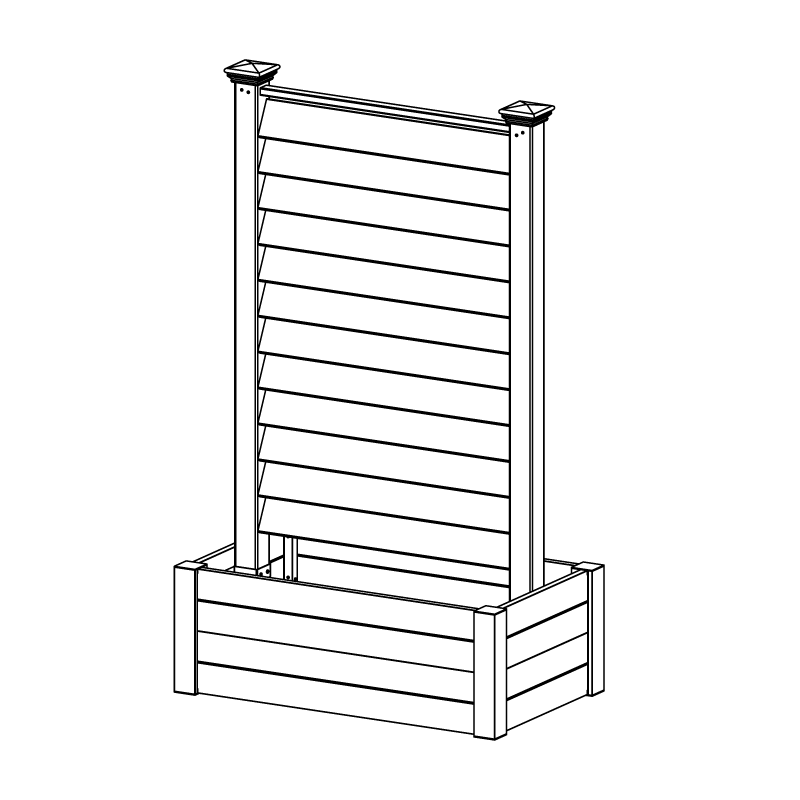

EC18039 Lexington Planter Privacy Box

Approximate assembly time for 45 min

Click here to watch an installation video.

Introduction

General Information

Important Safety Notes:

Check the inside of the larger pieces in your box for other materials packed inside.
Use an area approximately 5’ × 8’ for unobstructed assembling.
You should not need to use excessive force when assembling components.
For quickest assistance, have product number EC18039 and your box available.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Website: https://parts.nychbrands.com
Email: support@encloscreens.com
Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

Have reference item number EC18039
Provide the specific part name
Include the batch lot number

Product Specifications

Detailed Dimensions & Specifications

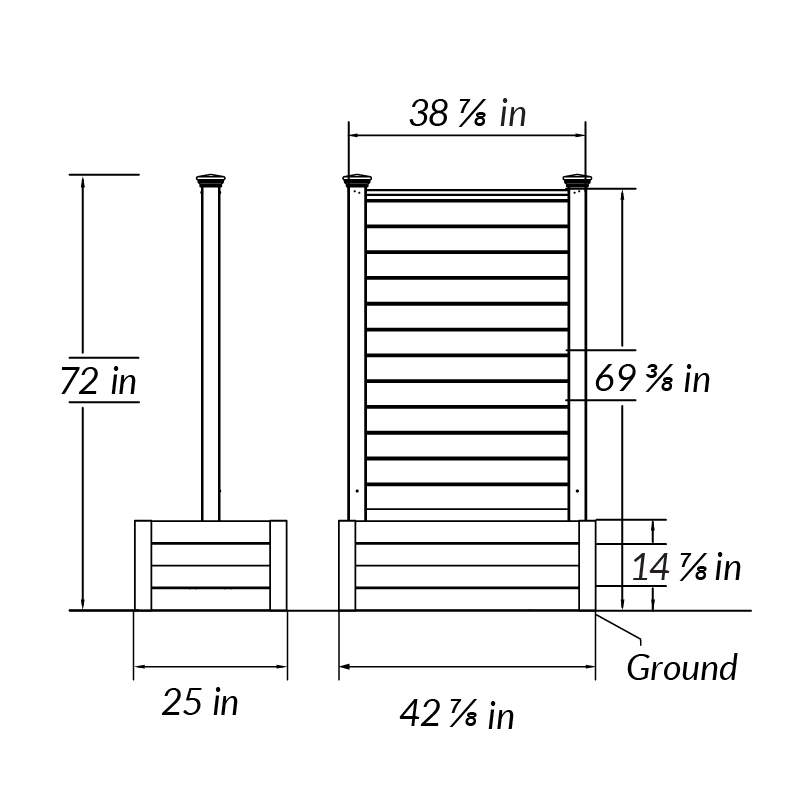

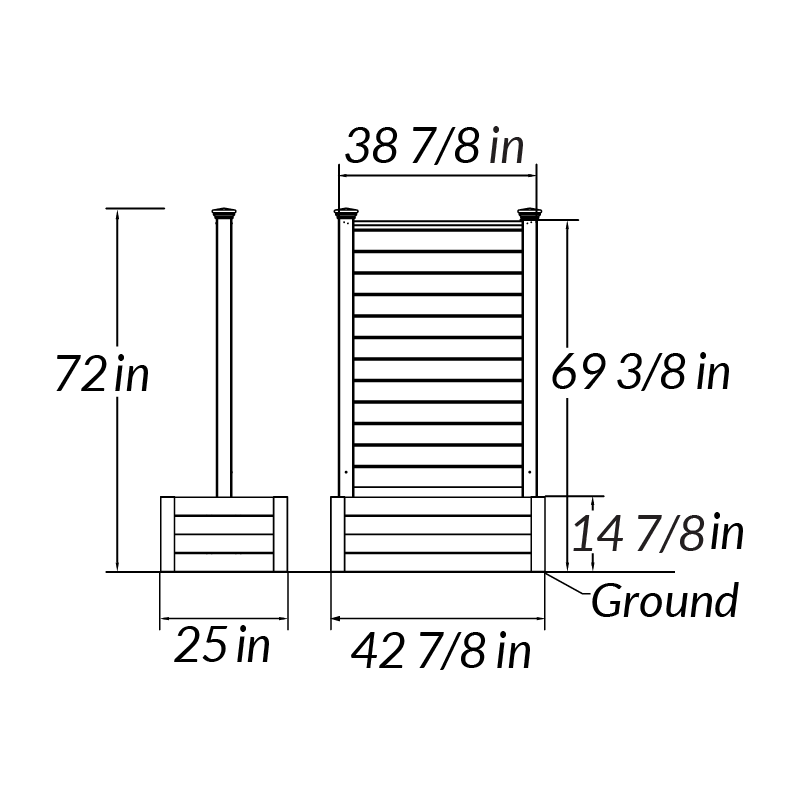

EC18039 Lexington Vinyl Planter Detailed Dimensions

Product Specifications:

Screen Height: 72"
Screen Width: 43"
Planter Box Width: 38 7/8"
Planter Box Height: 14 7/8"

Step 1: Part Identification

A. Left Post (1)

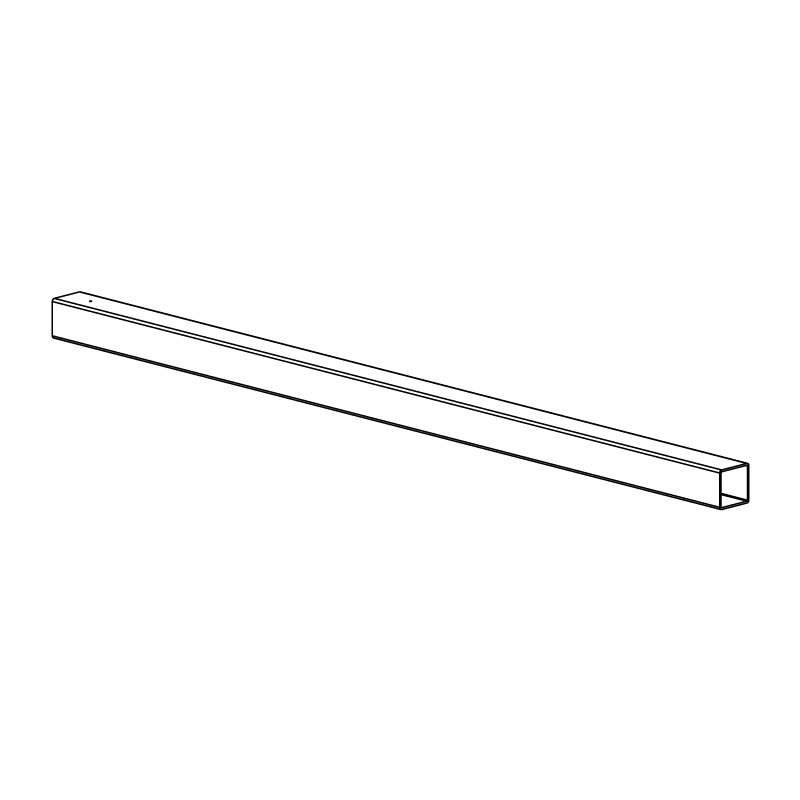

Part A Left Post (1) 3" x 3" x 68 5/8"

3" × 3" × 68 5/8"

B. Right Post (1)

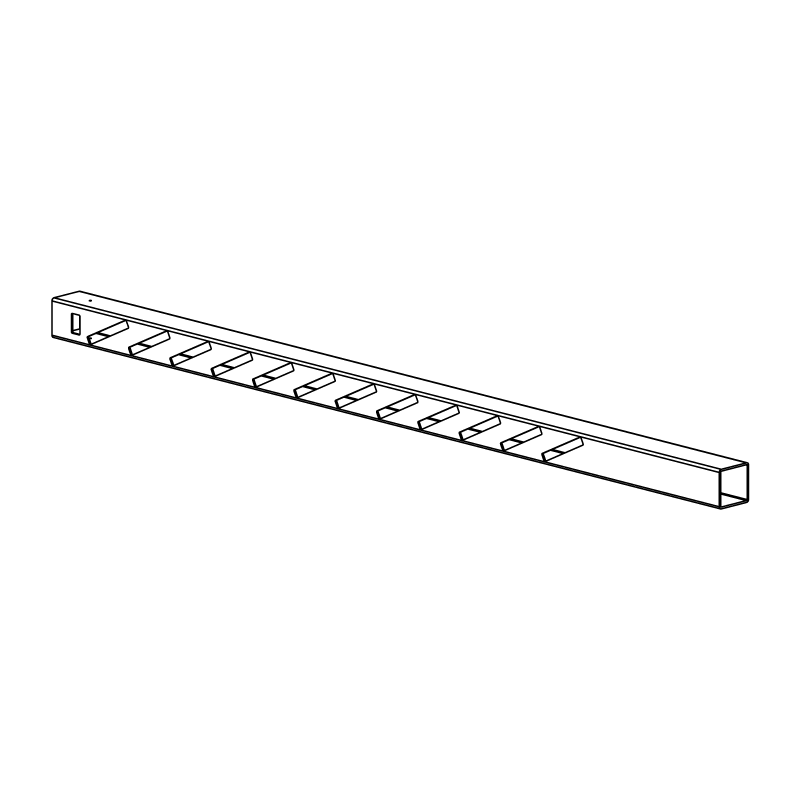

Part B Right Post (1) 3" x 3" x 68 5/8"

3" × 3" × 68 5/8"

C. Slats (12)

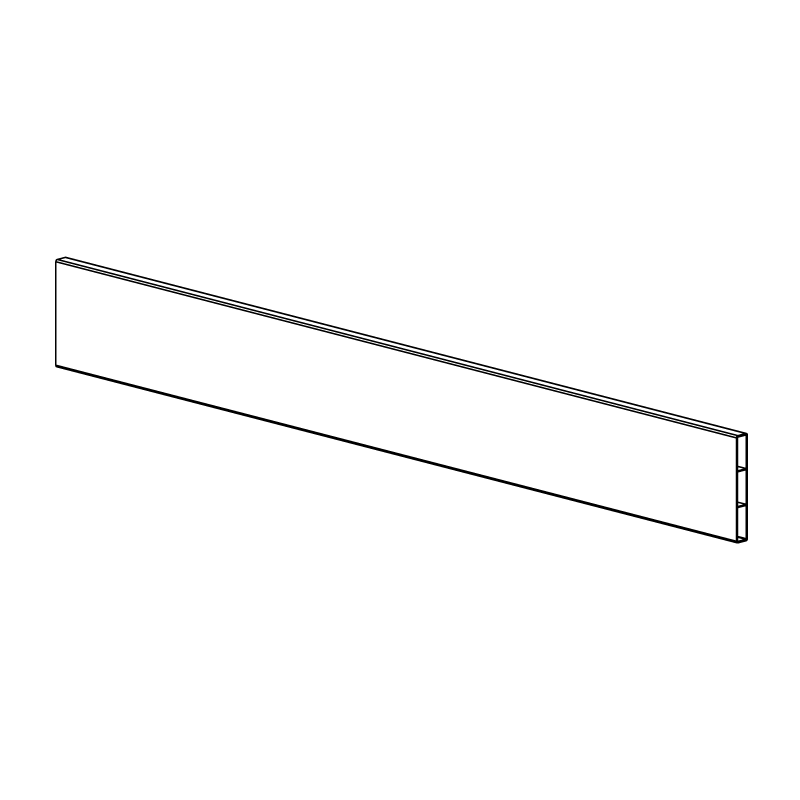

Part C Slats (12) 5/8" x 4 1/2" x 39"

5/8" × 4 1/2" × 39"

D. Top Rail (1)

Part D Top Rail (1) 7/8" x 11/2" x 39"

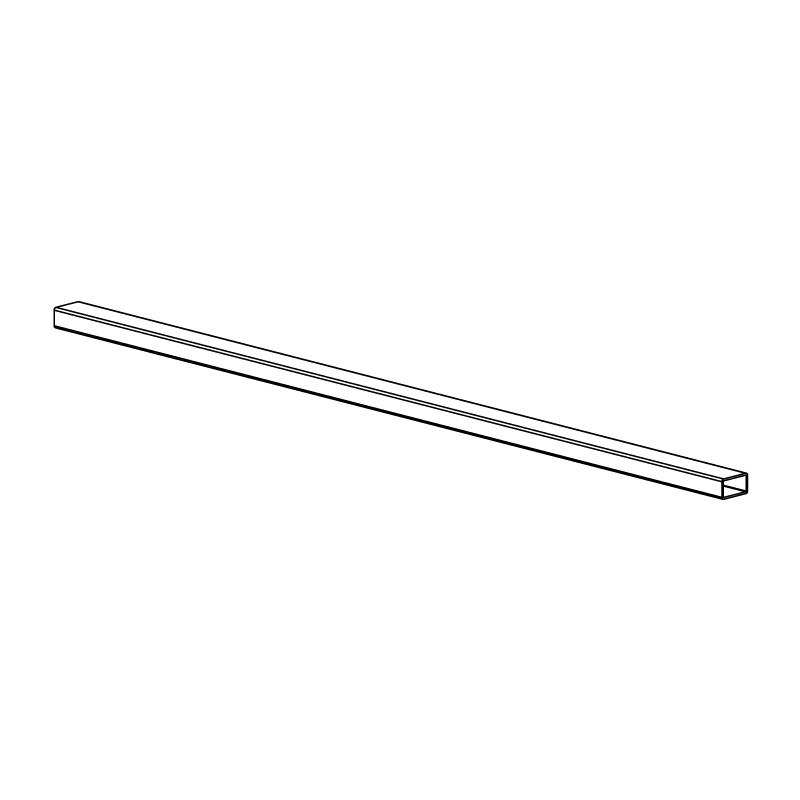

7/8" × 1 1/2" × 39"

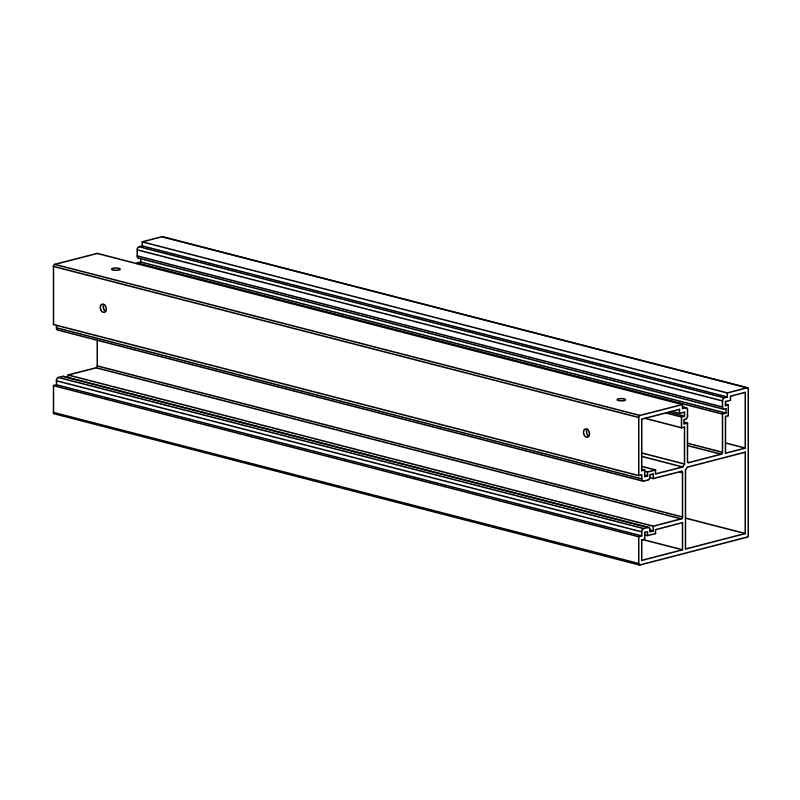

E. Floor Boards (2)

Part E Planter Box Posts(4) 2 3/4" x 2 3/4" x 15"

7/8" × 11" × 39 1/4"

F. Floor Supports (3)

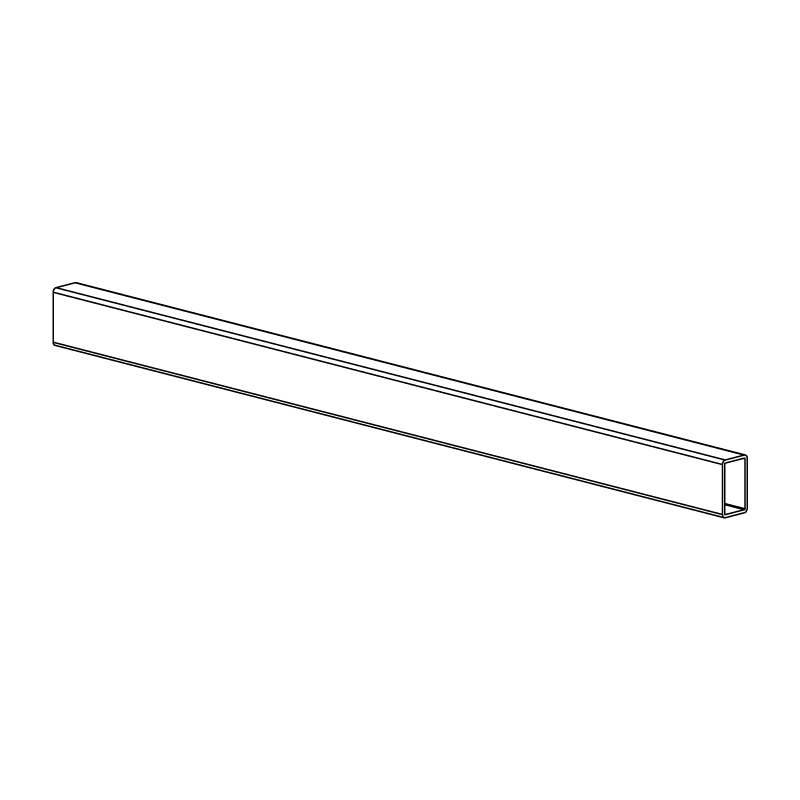

Part F Floor Supports (3) 1 1/2" x 7/8 " x 23 5/8"

1 1/2" × 7/8" × 23 5/8"

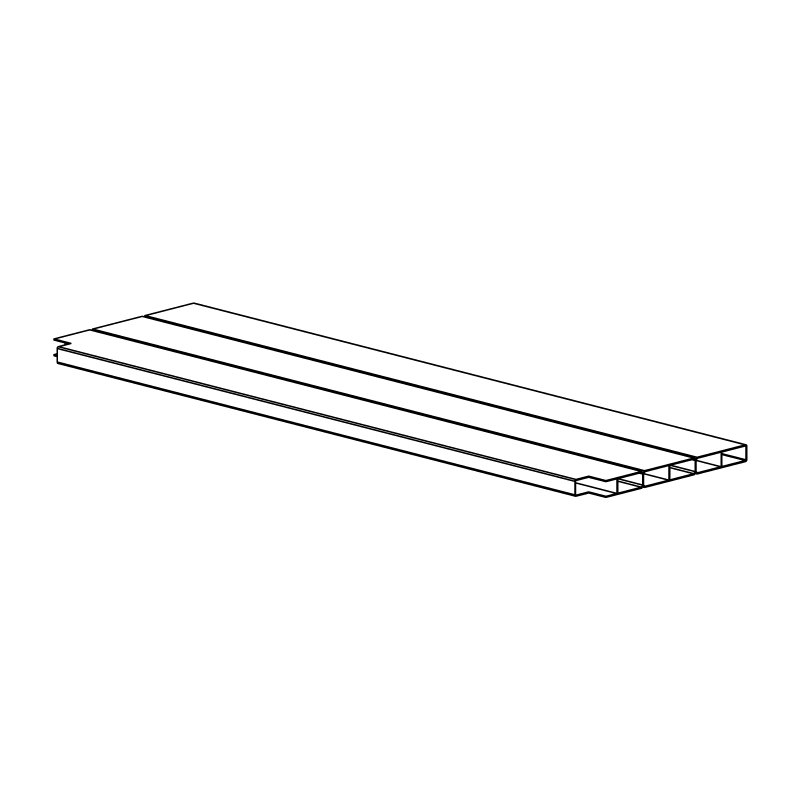

G. Long Planter Boards — Bottom (2)

Part G Floor Boards (2) 7/8" x 11" x 39 1/4"

7 3/8" × 7/8" × 39"

H. Planter Box Posts (4)

Part H Long Planter Boards - Tops (2) 7 3/8" x 7/8" x 39"

2 3/4" × 2 3/4" × 15"

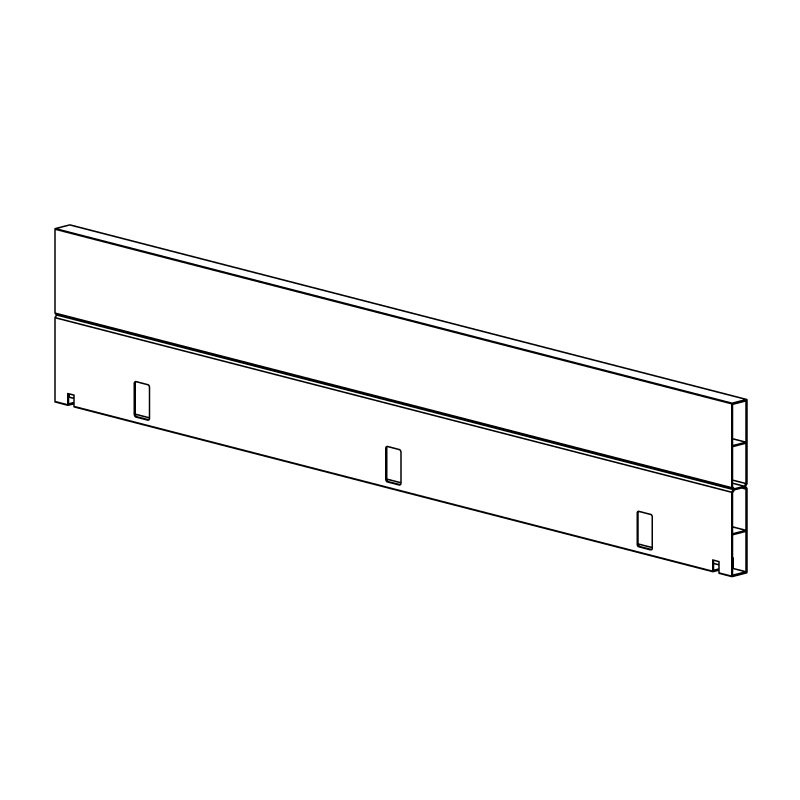

I. Short Planter Boards (4)

Part I Long Planter Boards - Bottom (2) 7 3/8" x 7/8" x 39"

7 3/8" × 7/8" × 21 3/4"

J. Long Planter Boards — Tops (2)

Part J Short Planter Boards (4) 7 3/8" x 7/8" x 21 3/4"

7 3/8" × 7/8" × 39" ##Hardware & Accessories

K. Screen Post Caps (2)

Part K Screen Post Caps (2)

L. Planter Post Caps (8)

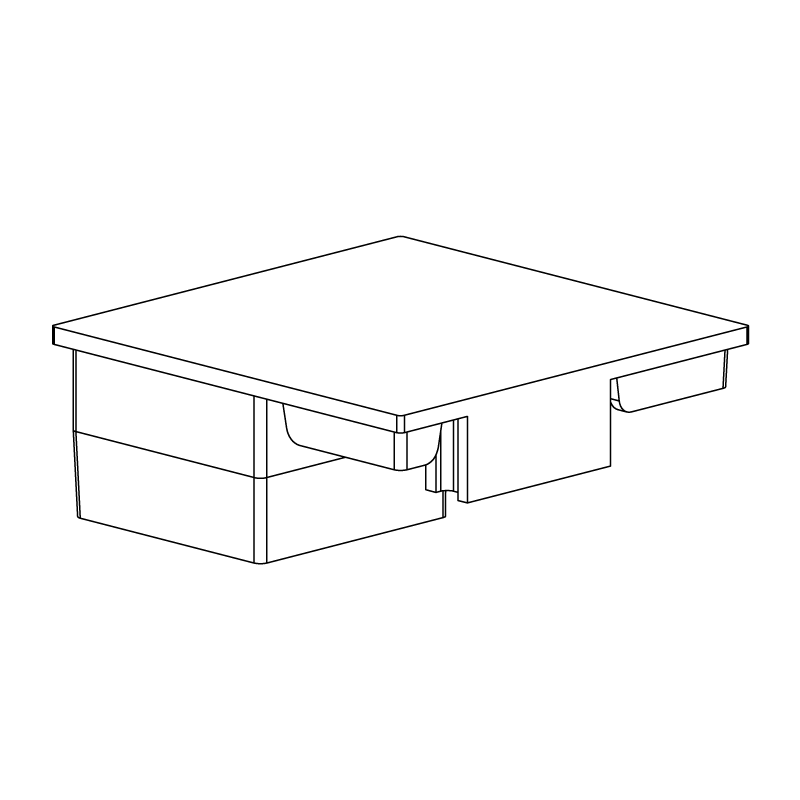

Part L Planter Post Caps (8)

M. 2" Screw (22)

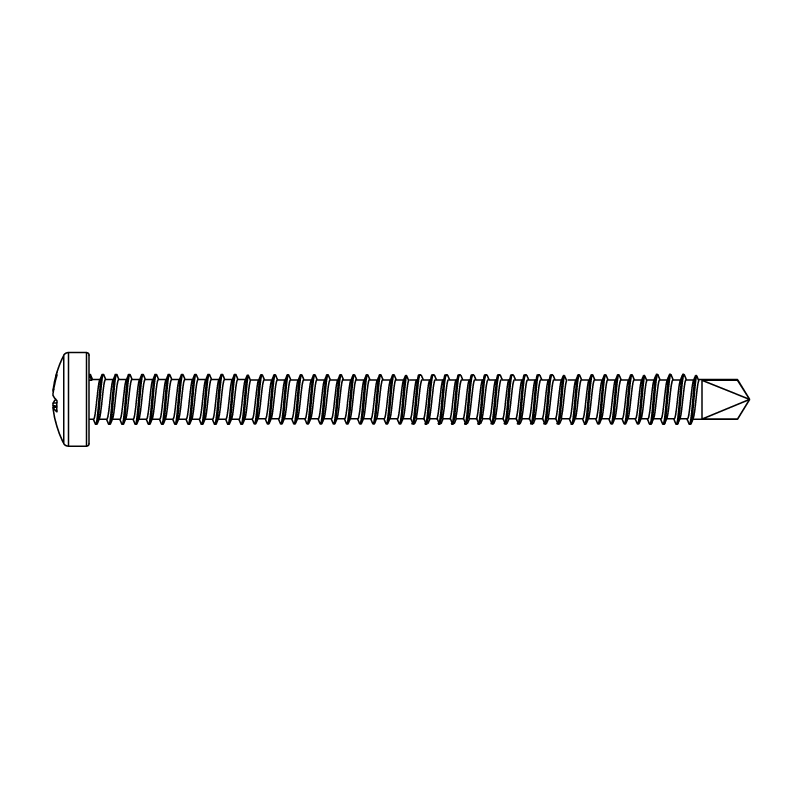

Part M 2" Screw (22)

N. 0.75" Screw (24)

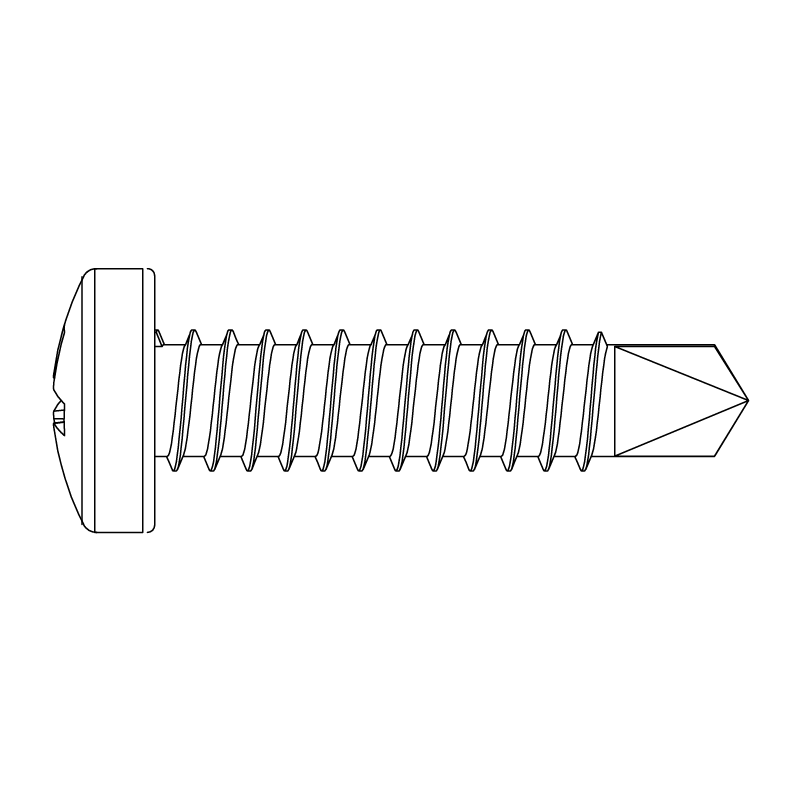

Part N .75" Screw (24)

O. Post Brackets (4)

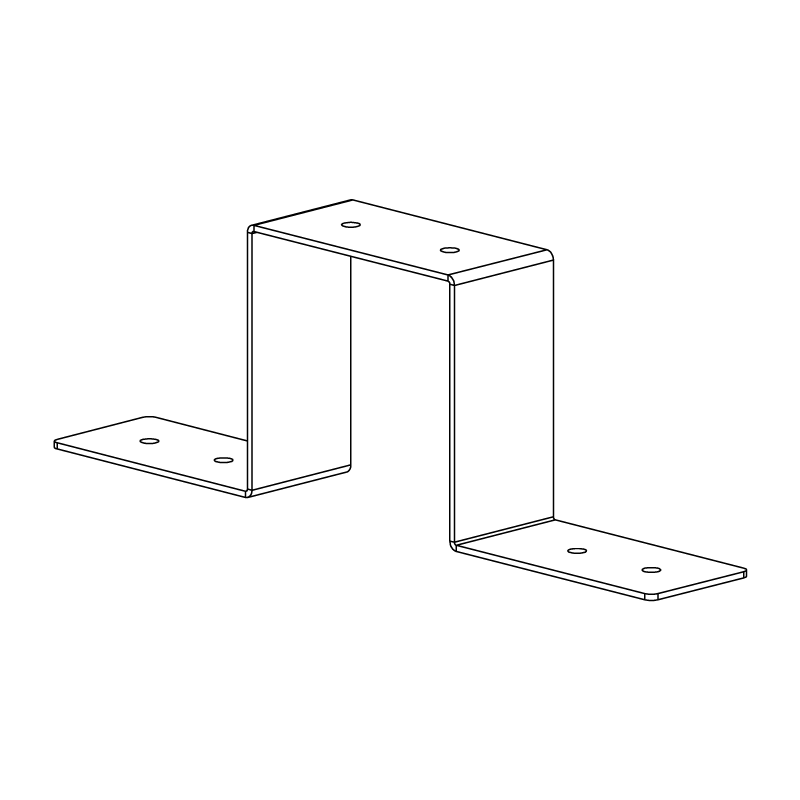

Part O Post Brackets (4) 3" x 3" x 9 1/4"

3" x 3" x 9 1/4"

Assembly Steps

Step 1

Step 1 Find Part E

Step 2

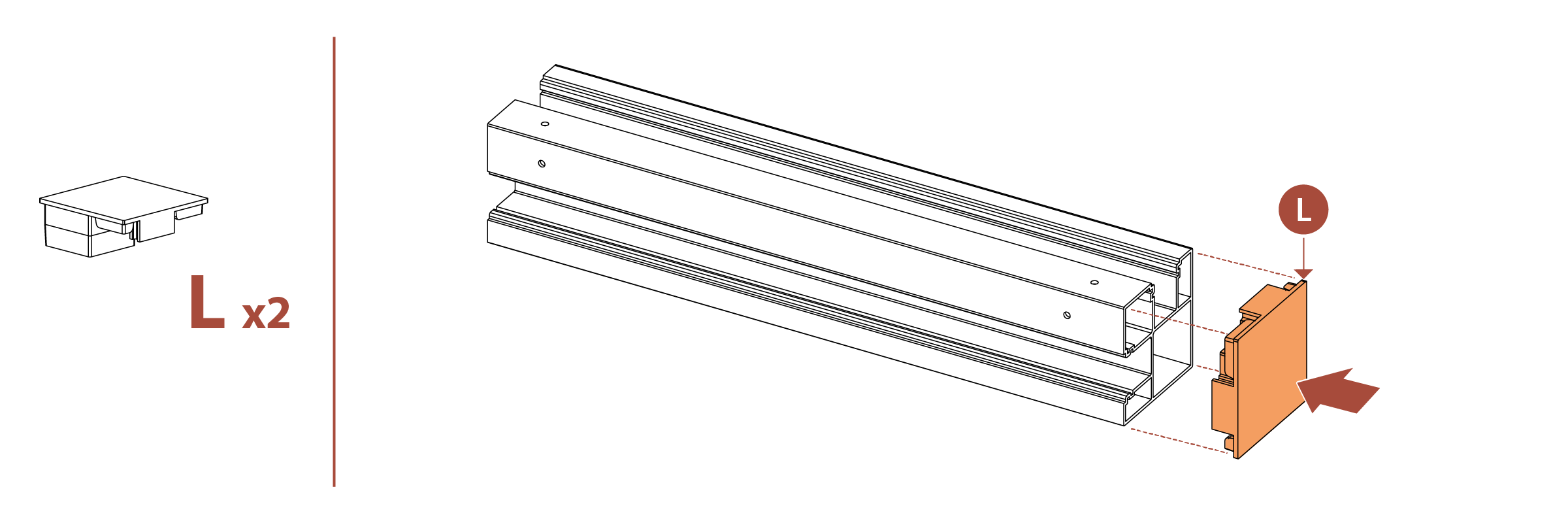

Step 2 Place Cap (part L) on post (part E)

Step 3

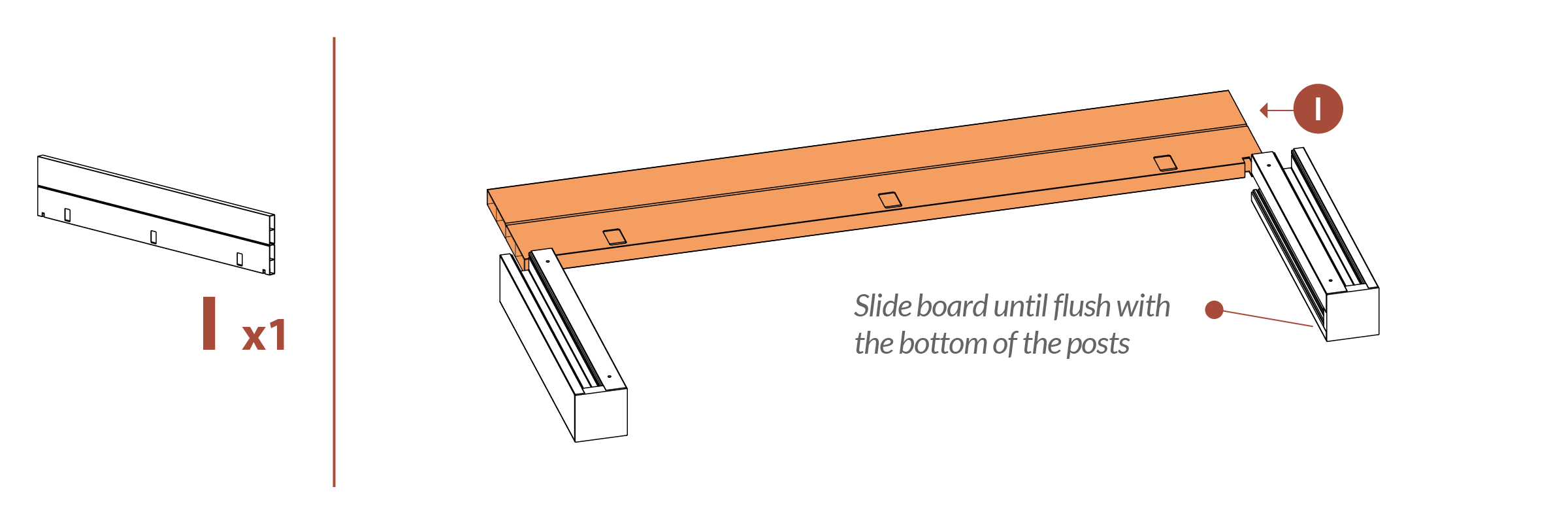

Step 3 Slide board until flush with the bottom of the posts

Step 4

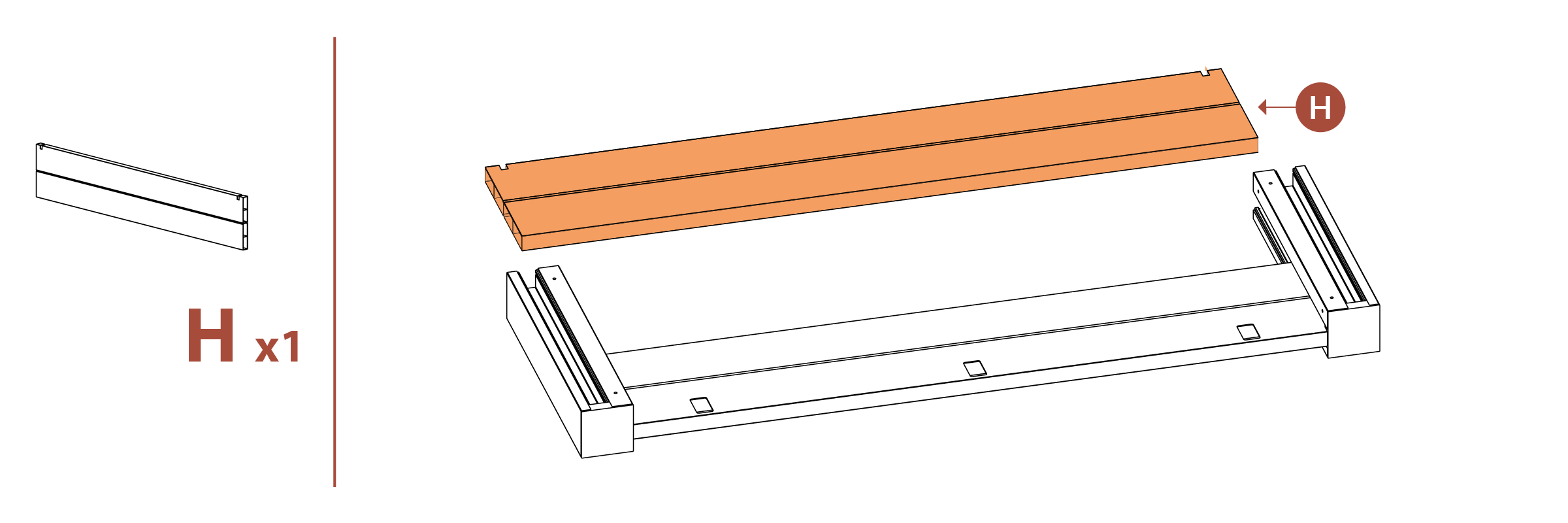

Step 4 Slide additional boards into post

Step 5

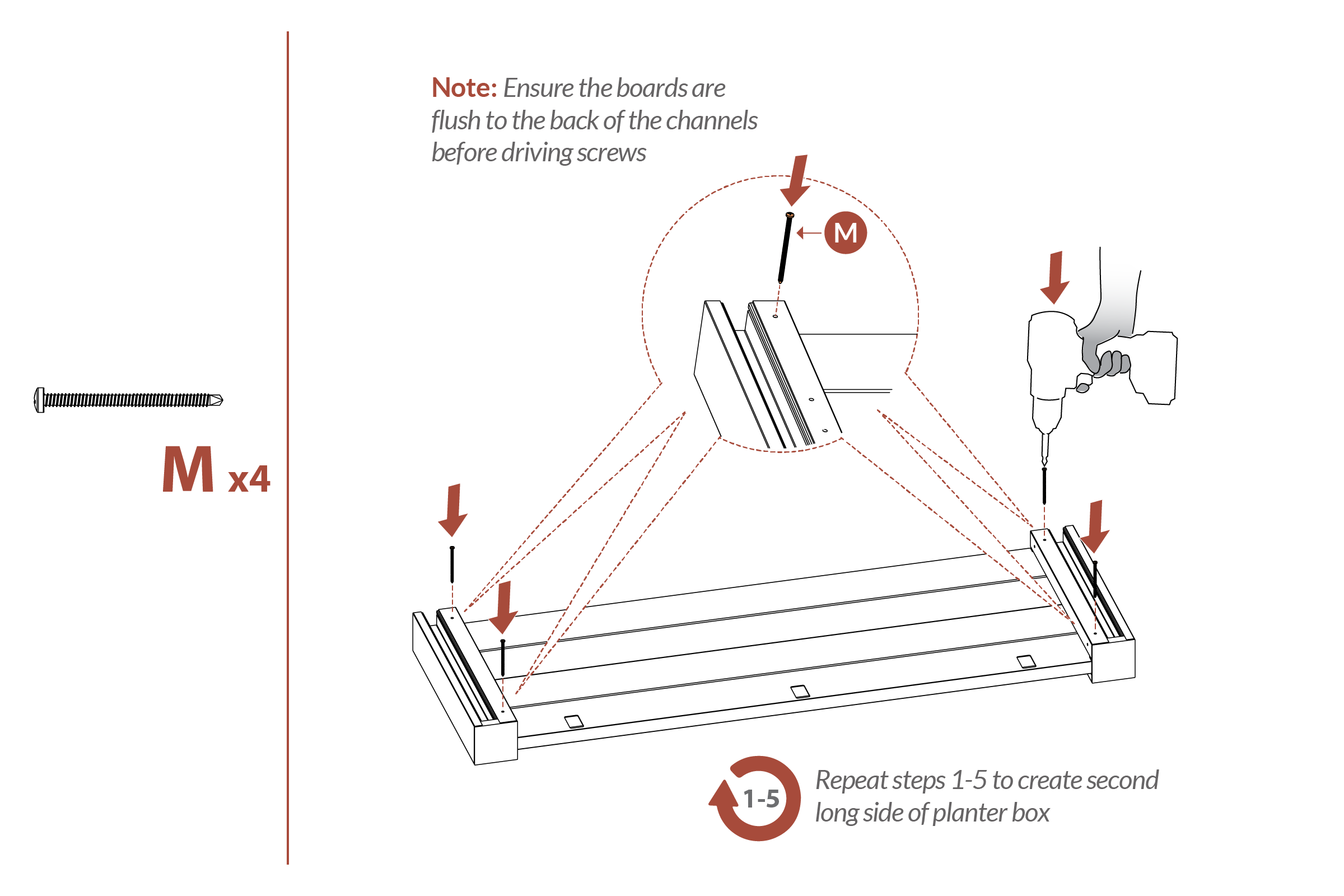

Step 5 Ensure boards are flush before driving screws

Step 6

Step 6 Push post up to wall to hold slats in during assembly

Step 7

Step 7 Place slats (part J) into place

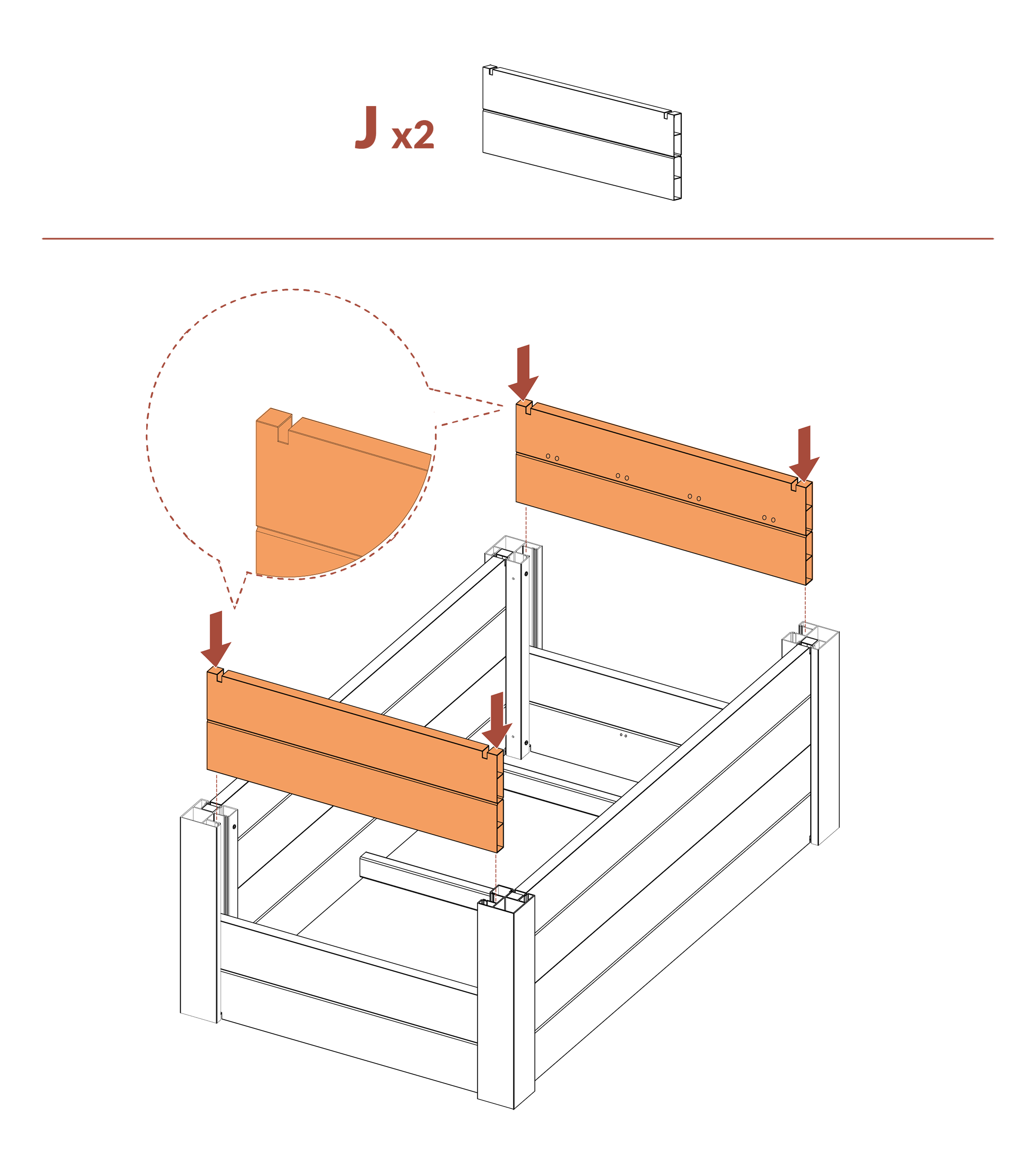

Step 8

![Insert image for Step 8 here]

Step 9

![Insert image for Step 9 here]

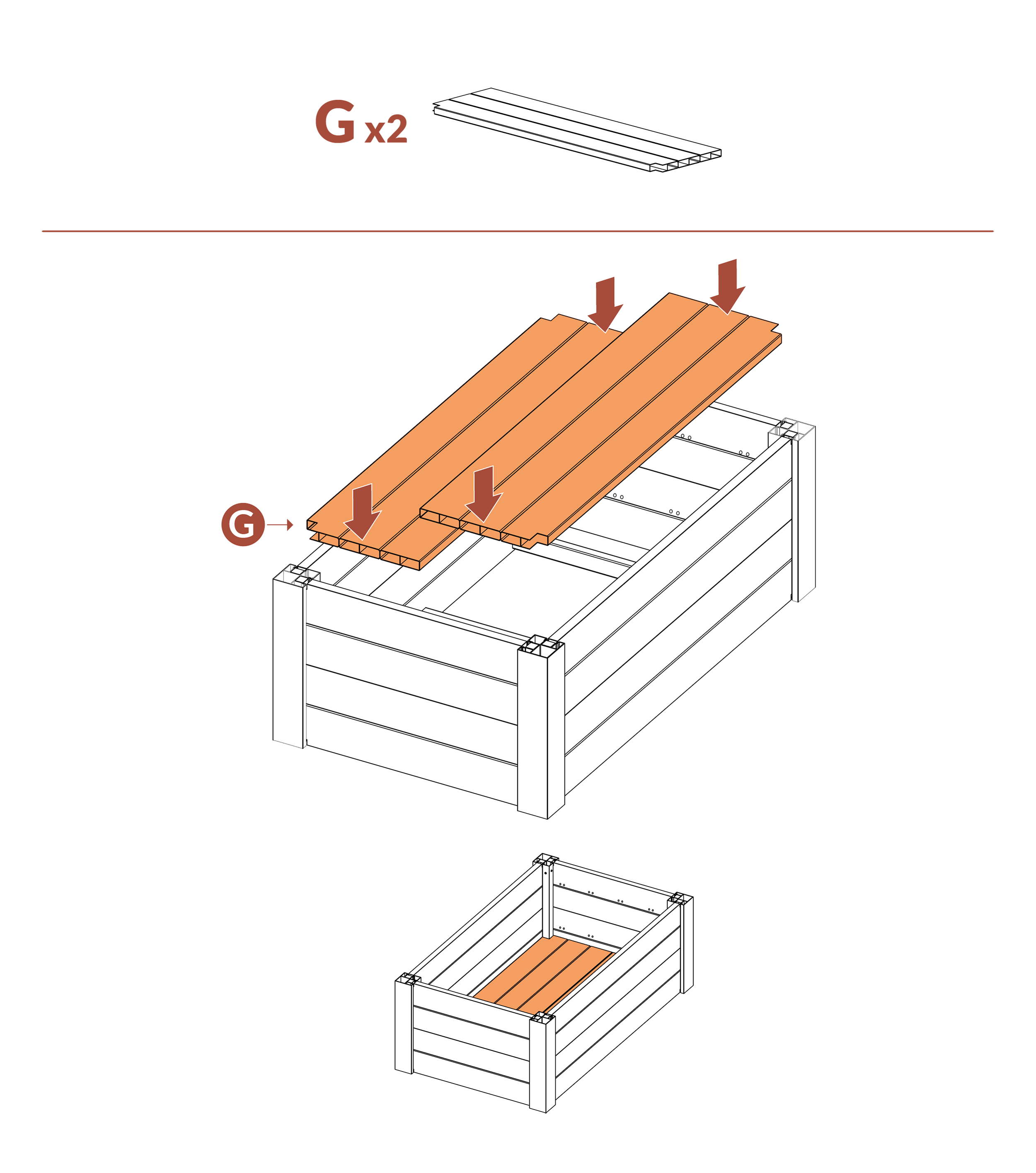

Step 10

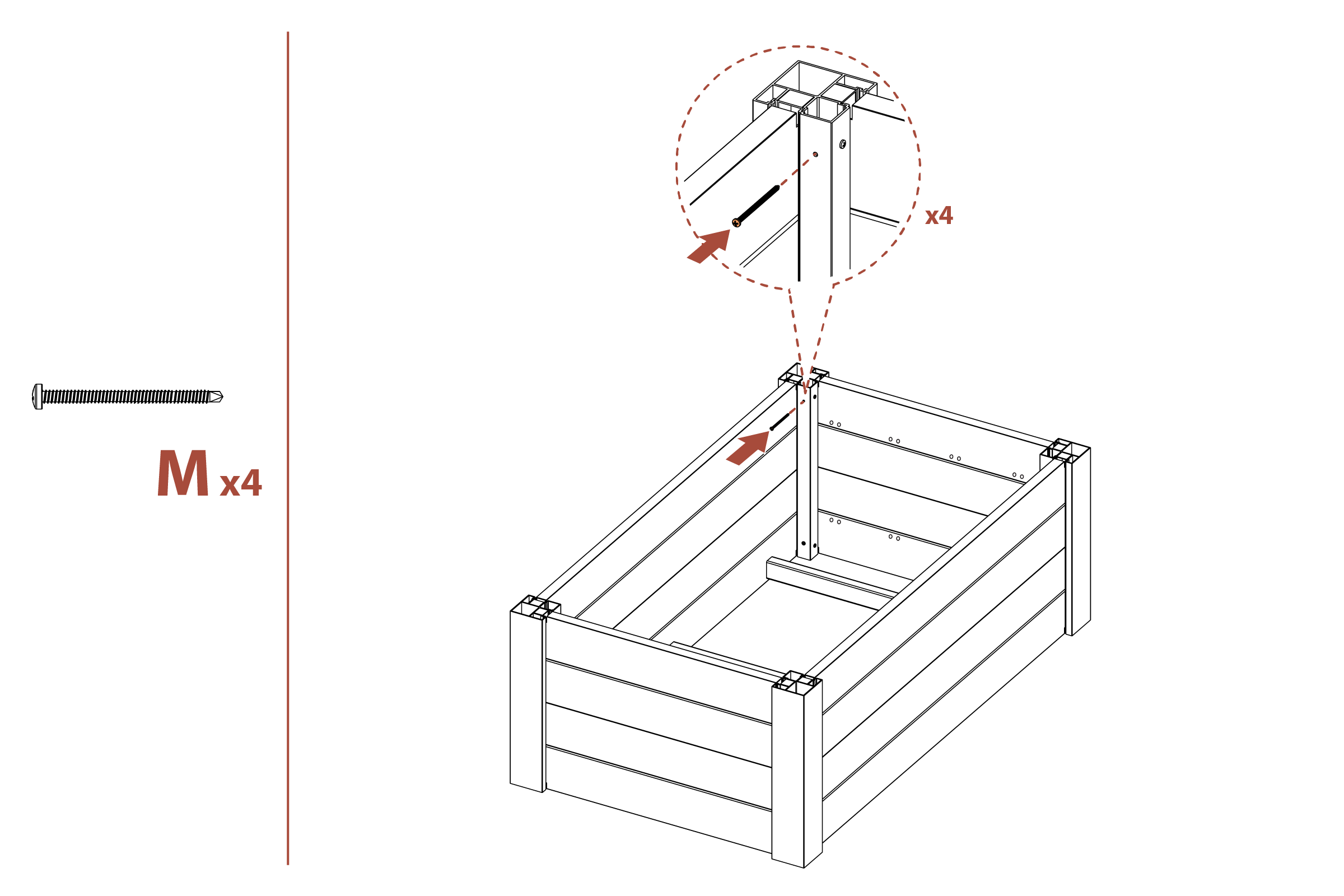

Step 10 Attach boards to posts in corner using screws

Step 11

![Insert image for Step 11 here]

Step 12

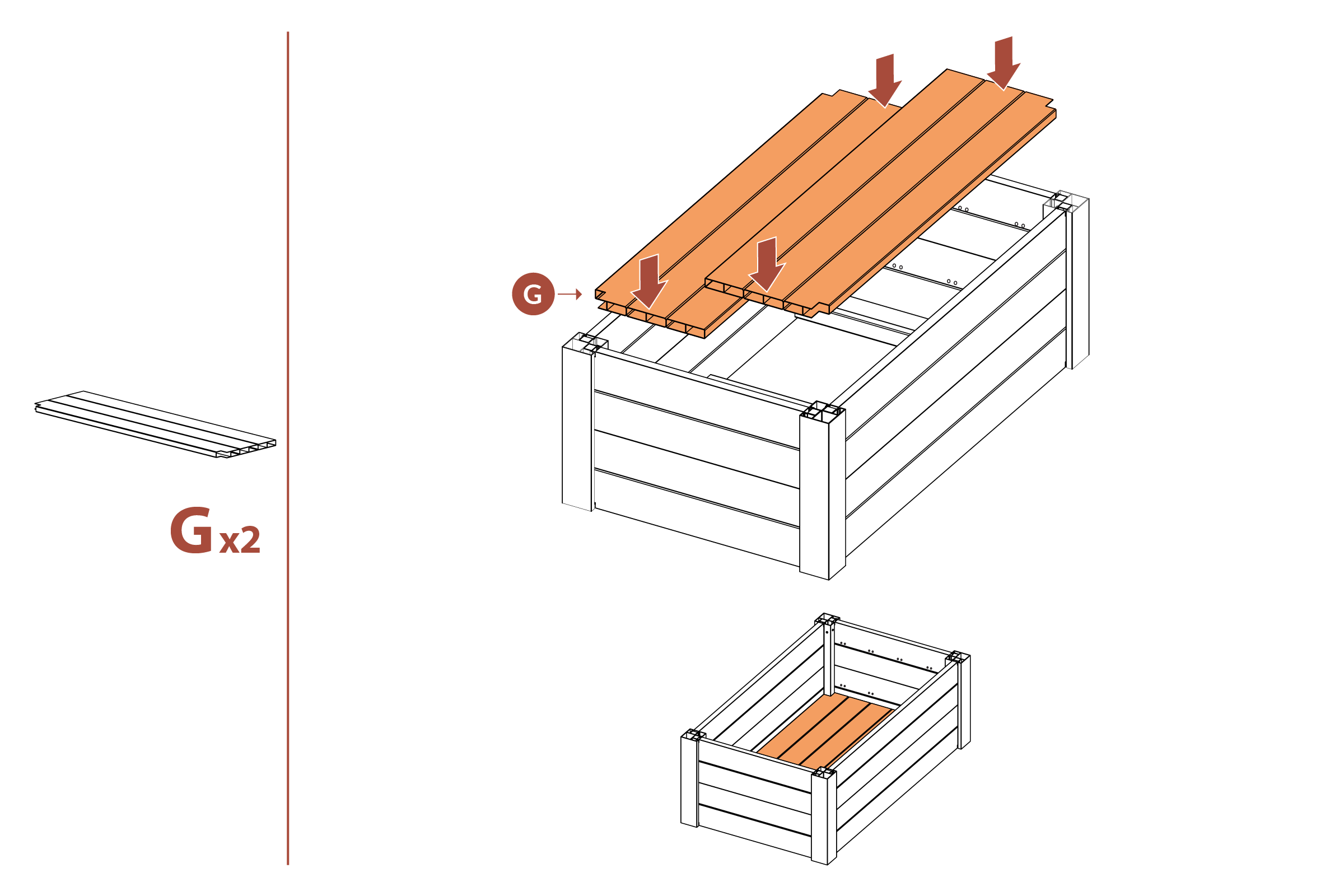

Step 12 Place bottom slats in planter box

Step 13

Step 13 Position part A against a wall, position part B

Step 14

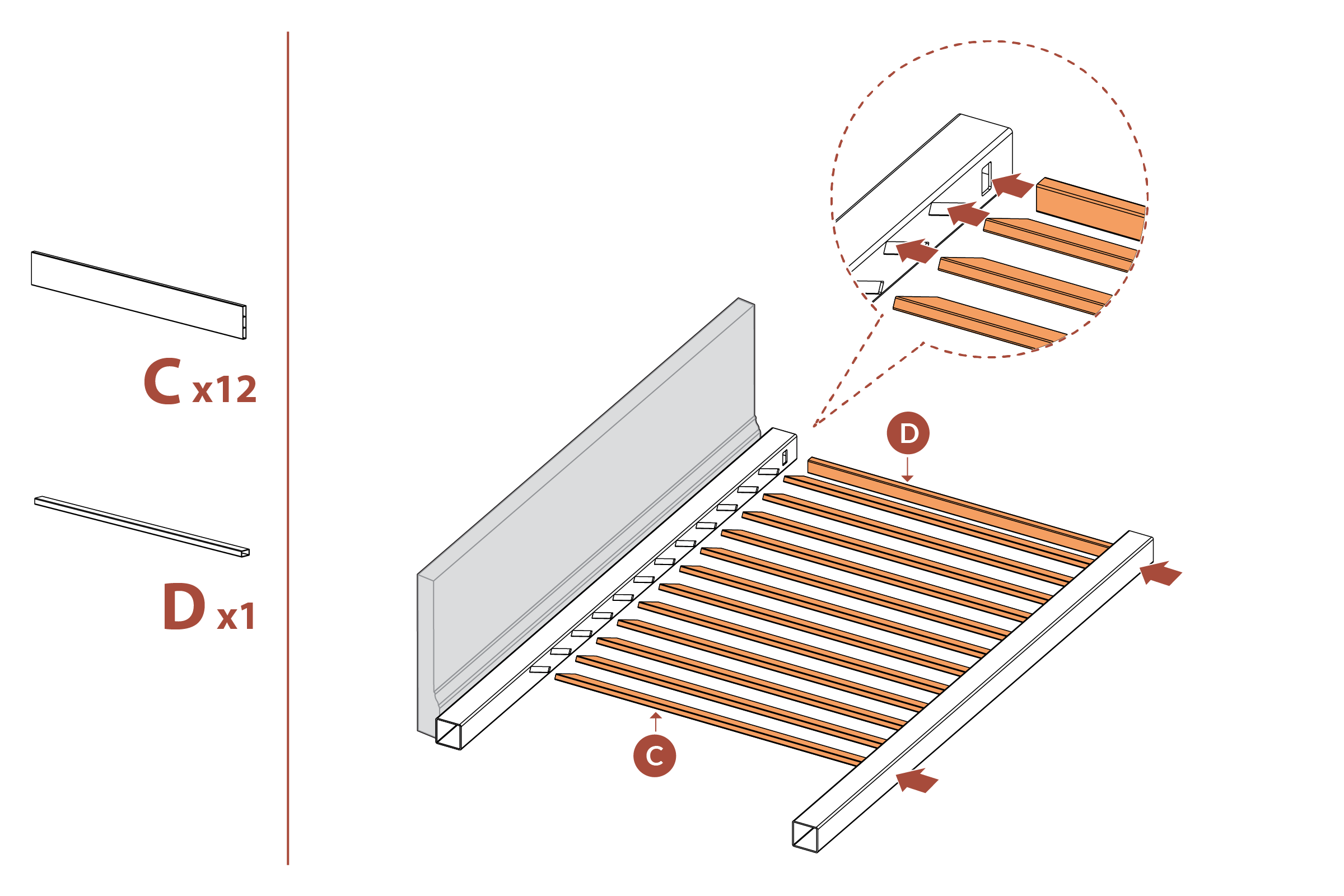

Step 14 Put slats into post (ensure post is against wall)

Step 15

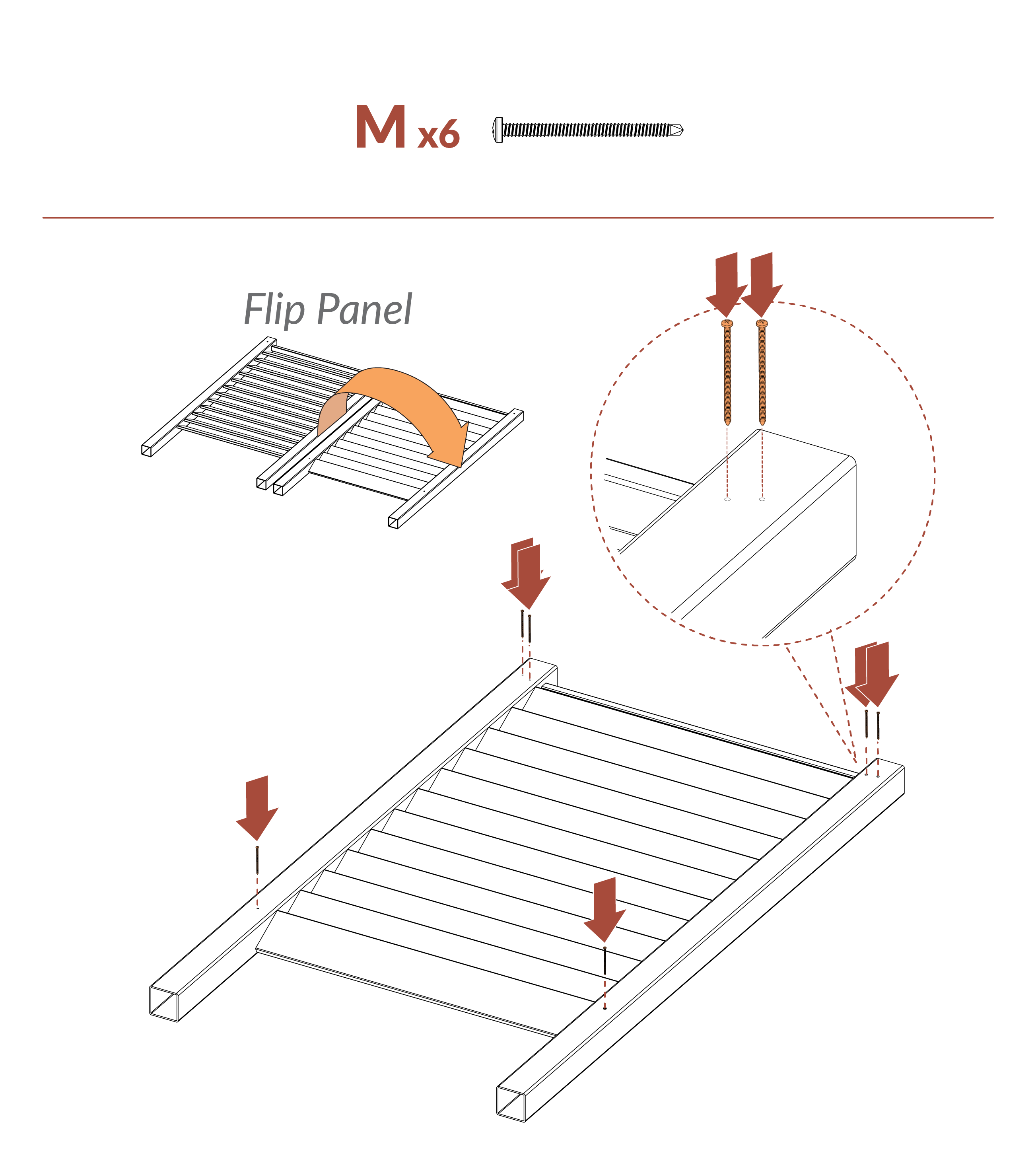

Step 15 flip panel and drive screws in

Step 16

Step 16 install post caps

Step 17

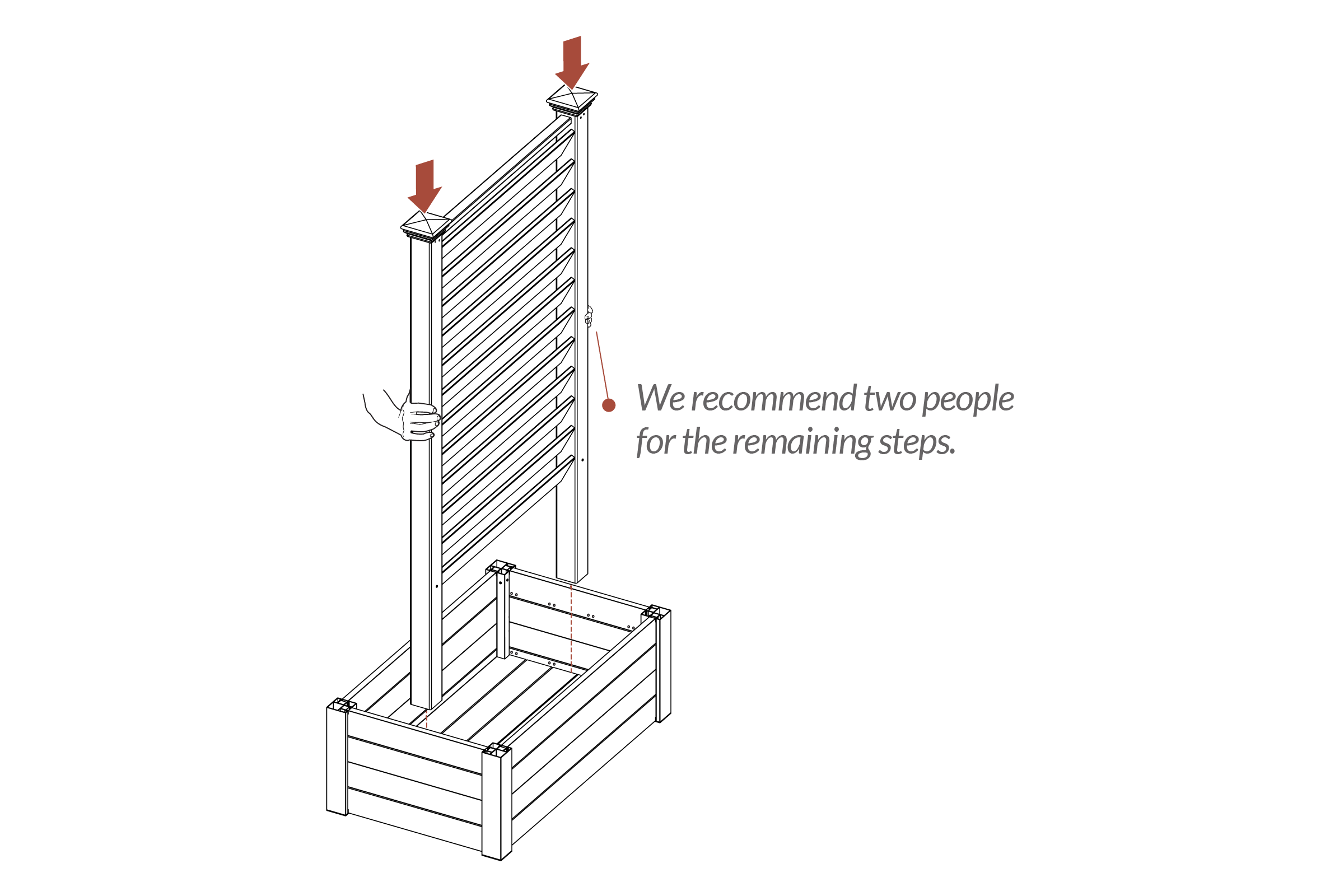

Step 17 place screen in box (2 people recommended)

Step 18a — Centered Screen Assembly

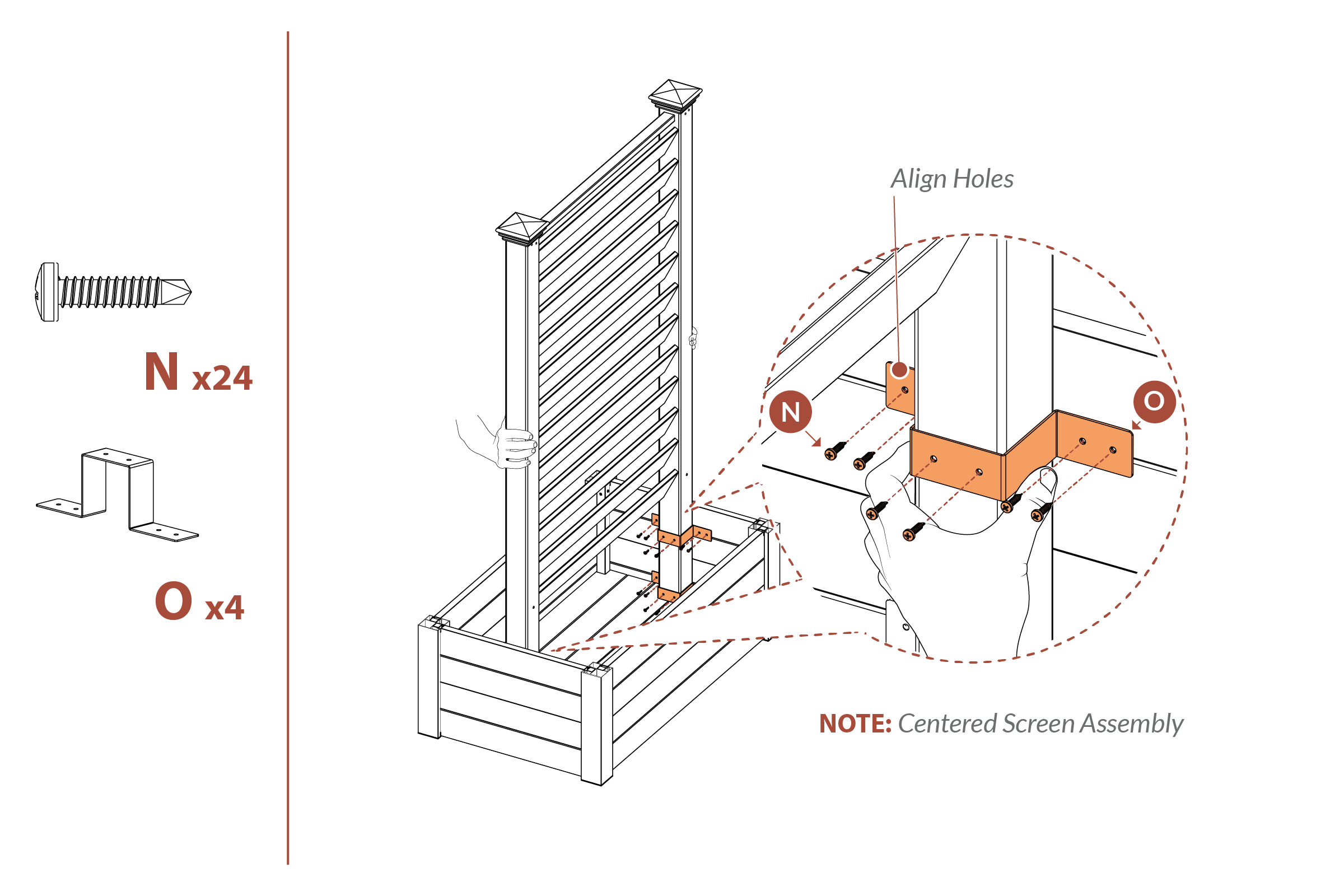

Step 18 Align holes & screw posts to planter using brackets

Step 18b — Offset Screen Assembly

Step 18b Offset screen assembly

Step 19

Step 19 Install caps

Need Help?

Email: support@encloscreens.com
Phone: 704-892-5222 or 877-234-6196
Text: 980-580-6508

EC18039

EC18039 Lexington Vinyl Freestanding Planter Screen

Lexington Louvered Freestanding Privacy Screen w/ Planter Box (1 unit)

6ft H x 3.5ft W x 2ft L
