General Information

Important Safety Notes:

• Assemble the product on the original box or another smooth surface to prevent scratching.
• Do not fully tighten screws until all components are properly aligned.
• Ensure all ground stakes are fully inserted and the panel is stable before release.
• Use proper eye and hand protection when drilling or installing into hard ground.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18043
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Product Specifications:

• Overall height: 60 ½ in
• Overall width: 39 in
• Ground clearance: 13 ½ in
• Panel depth: 4 in

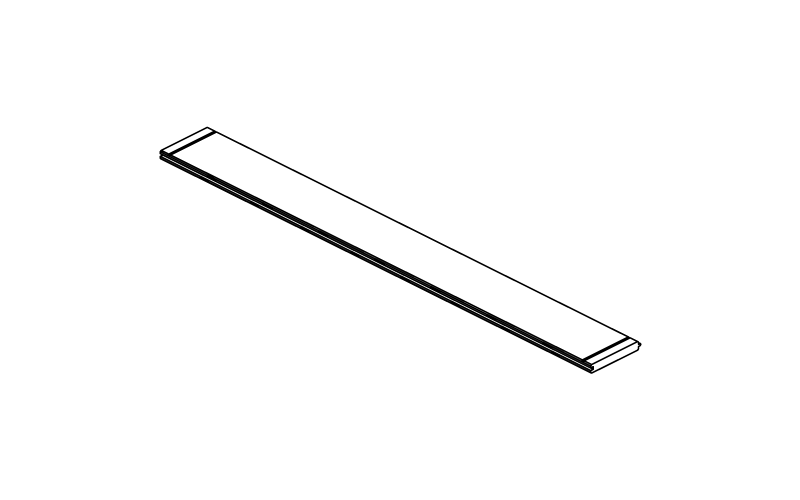

A — Slatted Wood Board (12)

⅝ in × 4 ½ in × 38 ¼ in

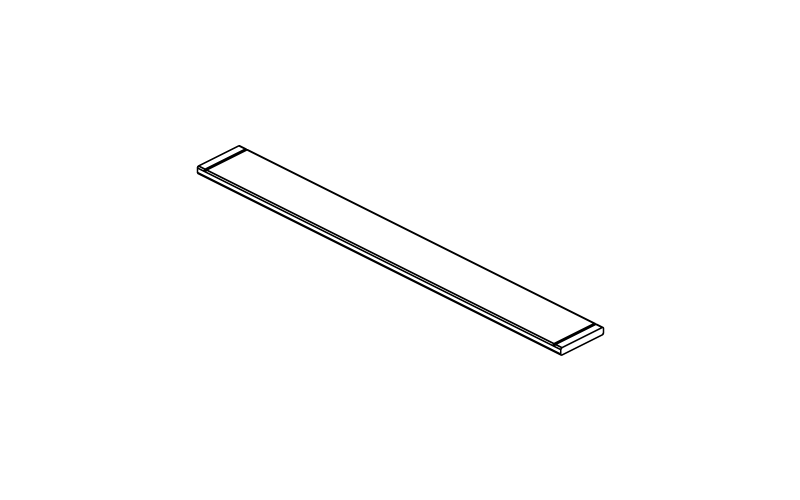

B — Top Wood Board (1)

⅝ in × 4 ½ in × 38 ¼ in

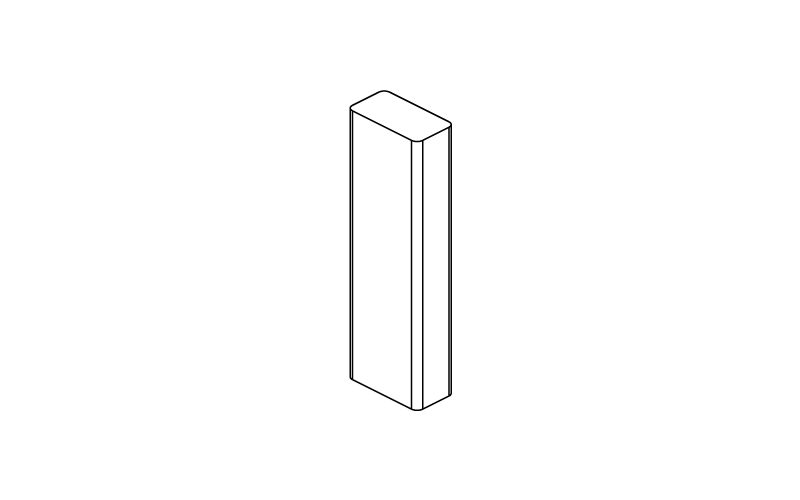

C — Wood Spacer (2)

⅝ in × 1 ¼ in × 3 ⅞ in

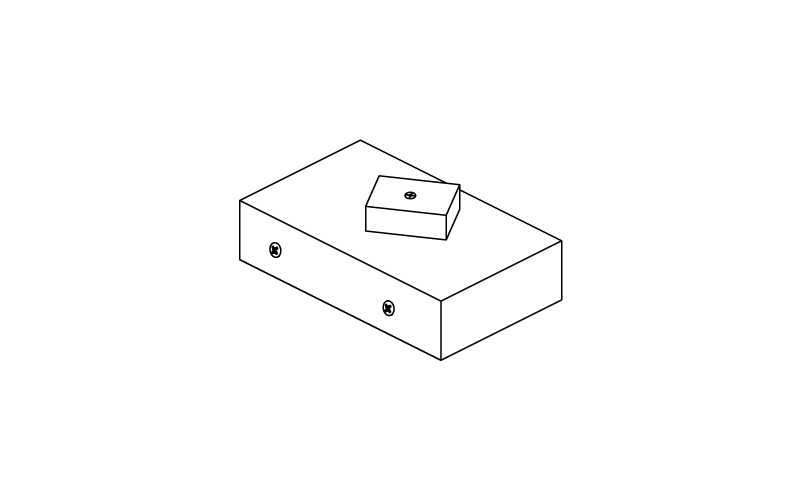

D — Wood Block (1)

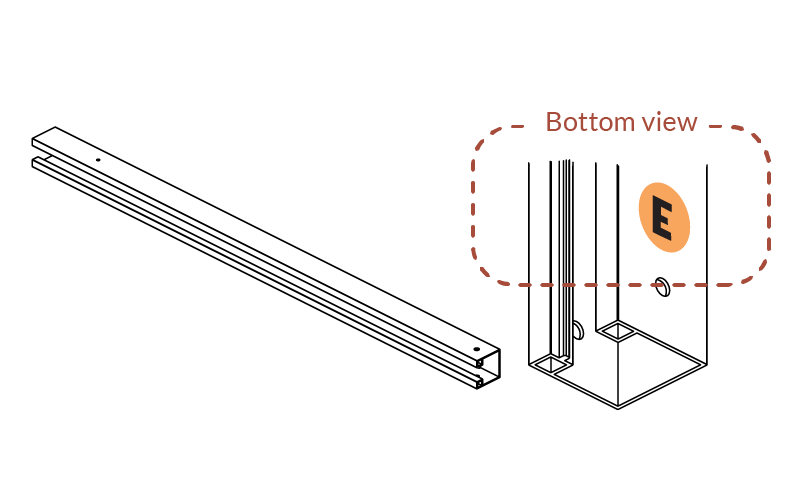

E — Right Post Top (1)

1 ¼ in × 1 ¼ in × 24 ⅛ in

F — Left Post Top (1)

1 ¼ in × 1 ¼ in × 24 ⅛ in

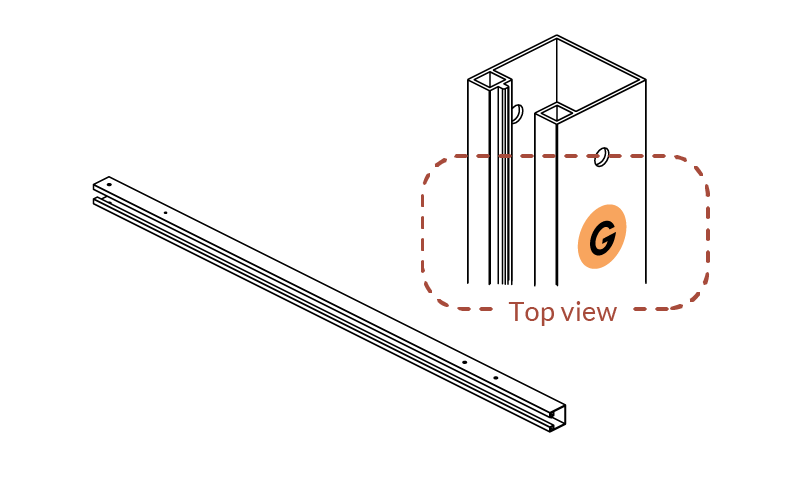

G — Right Post Bottom (1)

1 ¼ in × 1 ¼ in × 36 ⅜ in

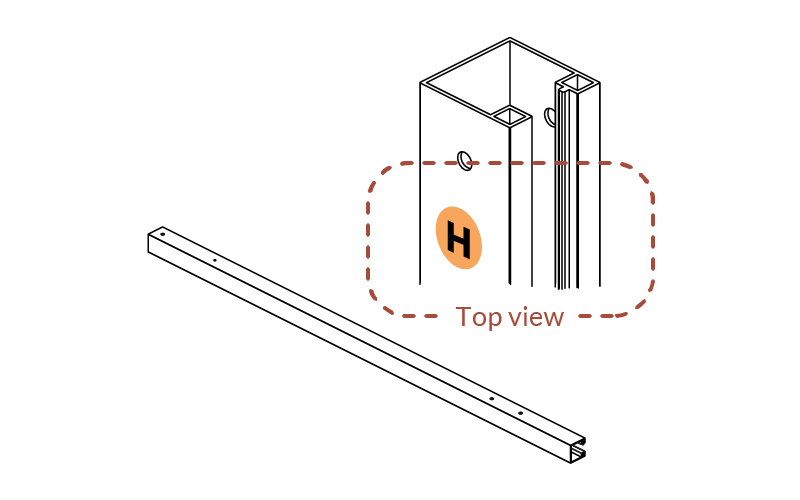

H — Left Post Bottom (1)

1 ¼ in × 1 ¼ in × 36 ⅜ in

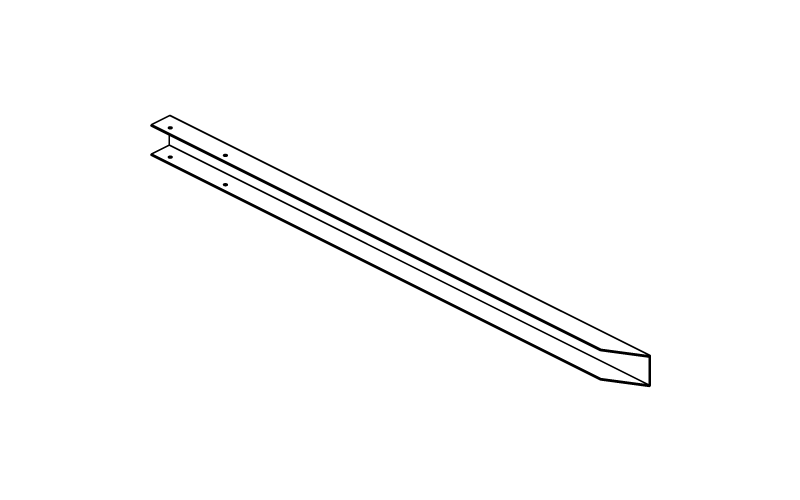

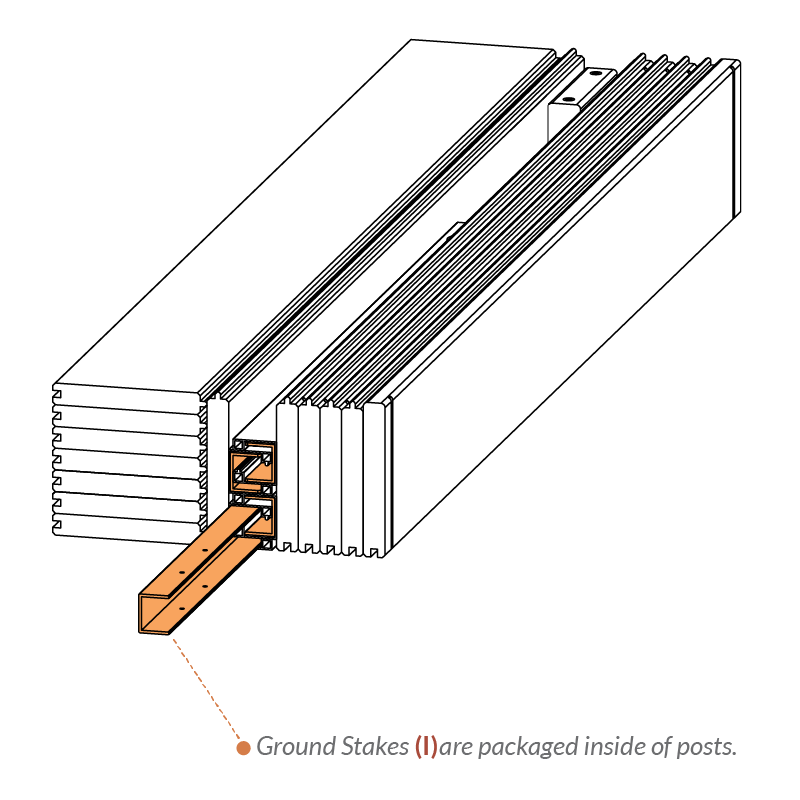

I — Ground Stake (2)

⅞ in × 1 ⅛ in × 23 ½ in

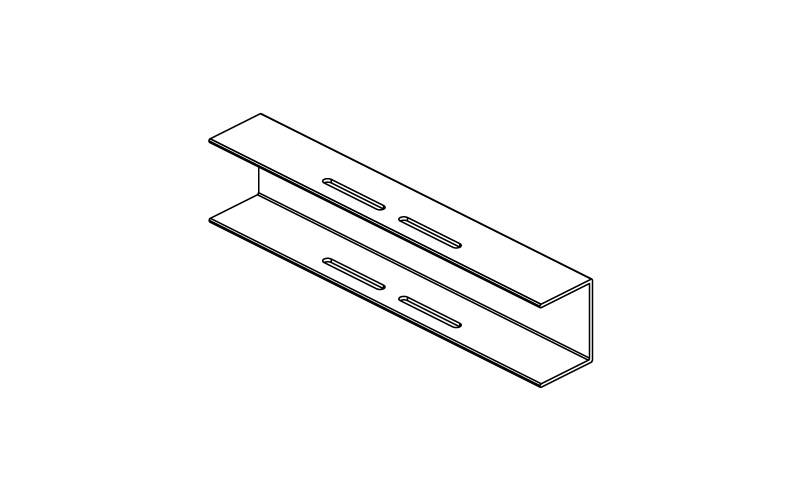

J — Post Bridge (2)

⅞ in × 1 ⅛ in × 6 ½ in

K — Post Cap (2)

L — Joiner Clip (2)

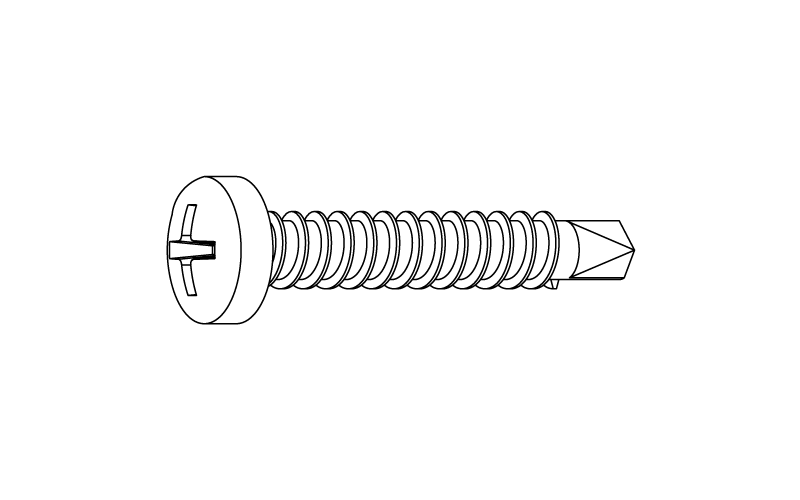

M — 1 in Self-Drilling Stainless Steel Screw (12)

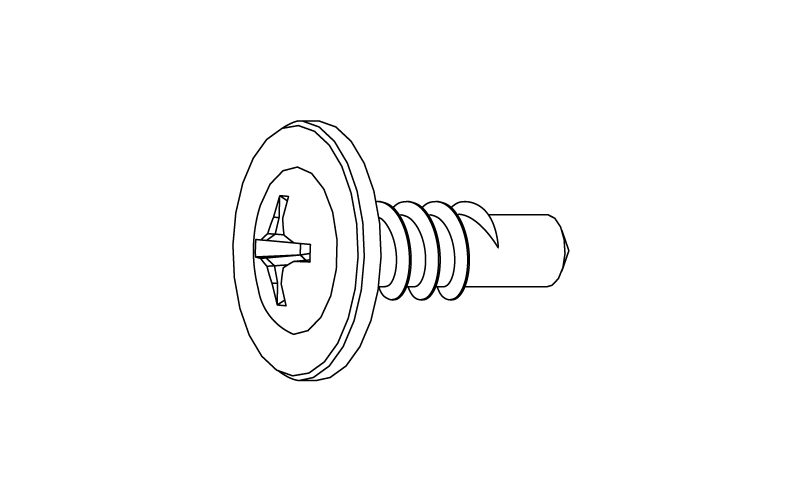

N — ½ in Wide Head Stainless Steel Screw (8)

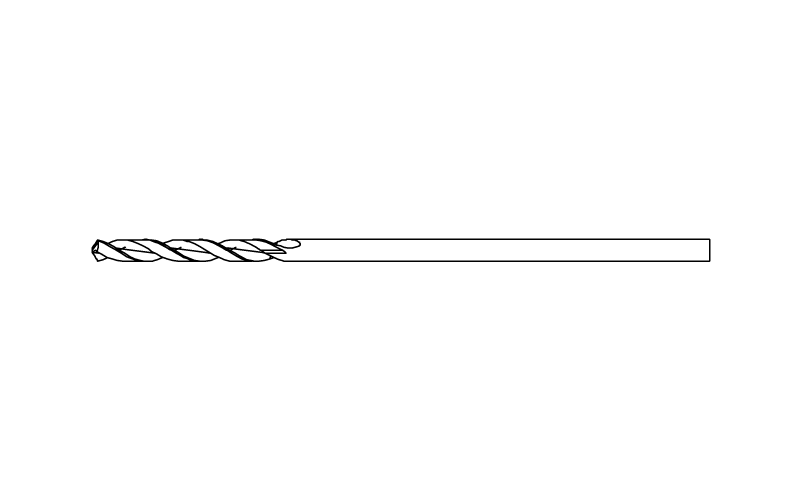

O — ⅛ in Drill Bit (1)

• Lay Slatted Wood Board (A) on a flat surface

• Attach Left and Right Post Bottoms (H and G) to the board
• Ensure board grooves are properly aligned with post fins

• Insert Ground Stakes (I) into post bottoms
• Align holes on both sides

• Use Wood Spacers (C) to position boards correctly
• Secure using 1 in Self-Drilling Stainless Steel Screws (M)
• Spacers can be removed after this step

• Position the panel against a wall for easier assembly
• Continue stacking (6) Slatted Wood Boards (A) into the posts

• Secure the 6th board with (2) 1 in Self-Drilling Stainless Steel Screws (M)

• Attempt to push the unit into the ground

• All 13 ½ in of ground stakes must be fully inserted and no longer visible

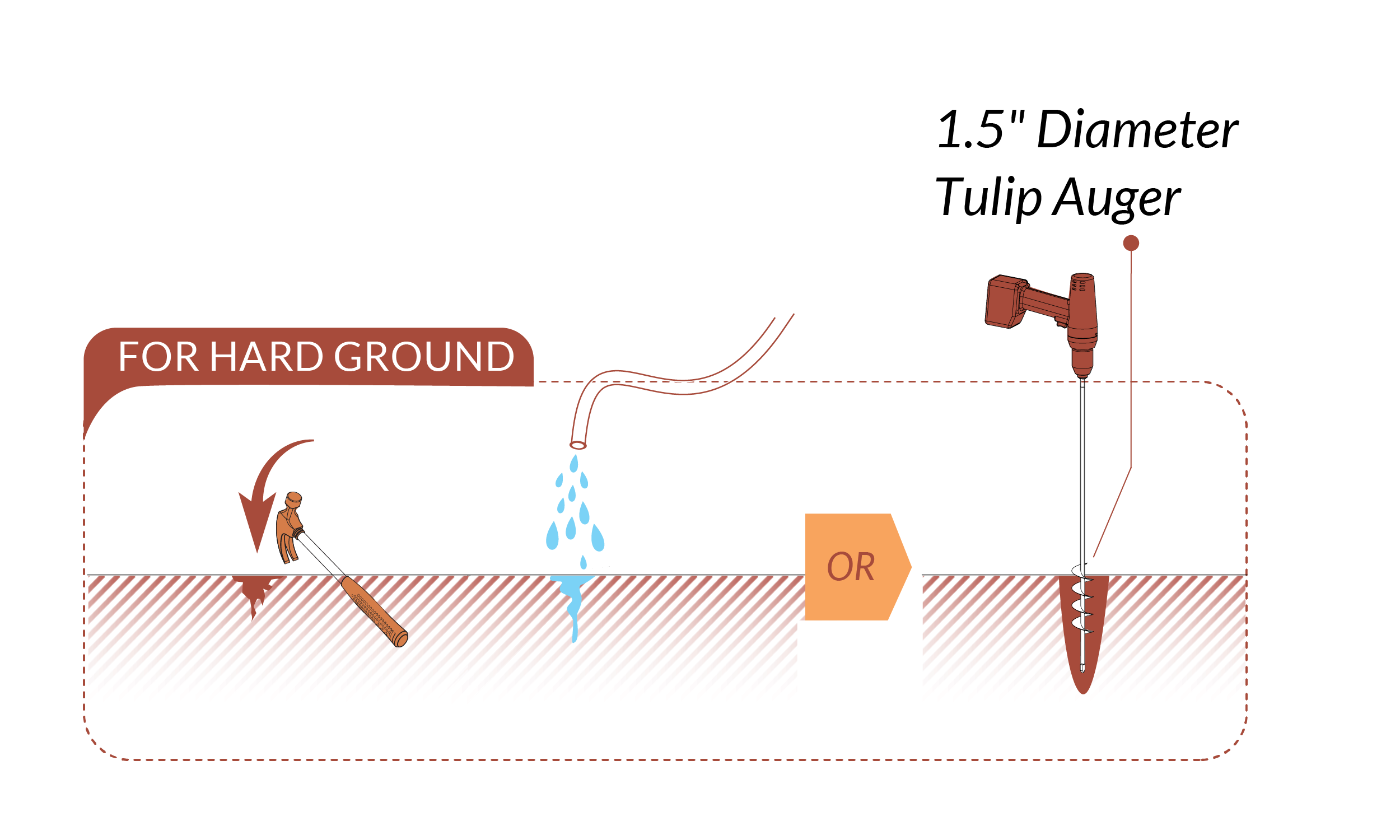

• For hard ground, use a 1.5 in diameter tulip auger or water to soften soil

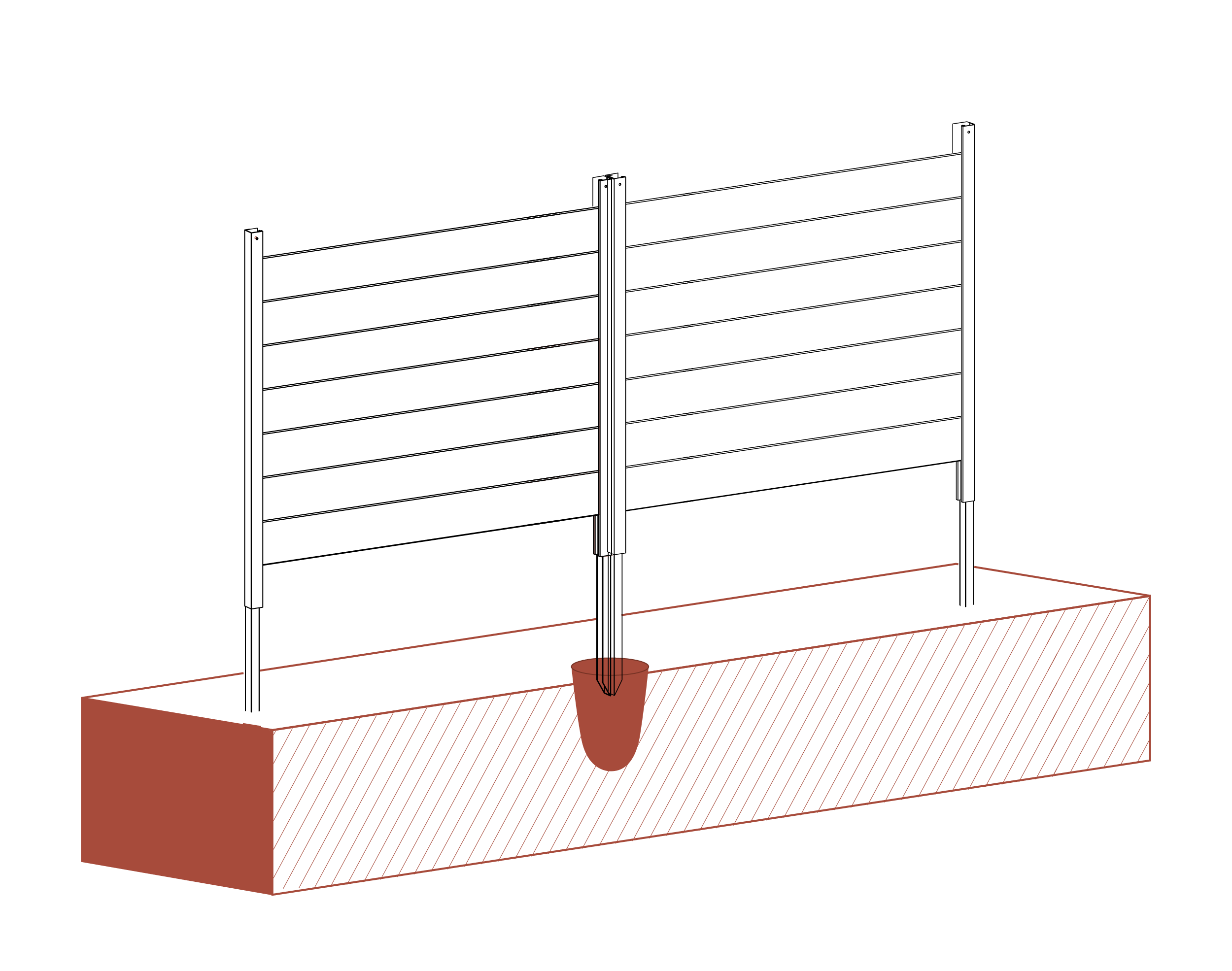

• If ground is very hard, dig holes approximately 8 in in diameter and 13 in deep

• Insert posts, backfill, and compact soil
• Install any additional panels before proceeding

• Install (1) Slatted Wood Board (A) and (2) Post Bridges (J)

• Secure with (4) ½ in Wide Head Stainless Steel Screws (N)

• If a rear hole is blocked, pre-drill using Drill Bit (O)

• Install Left and Right Post Tops (F and E)

• Secure post tops using remaining ½ in Wide Head Stainless Steel Screws (N)

• Install remaining (4) Slatted Boards (A) and (1) Top Wood Board (B)

• Secure with remaining 1 in Self-Drilling Stainless Steel Screws (M)

• Install Post Caps (K)

• If installing multiple panels, attach Joiner Clips (L)
• Drill holes as needed using Drill Bit (O)
• Panels may be installed at 90° or 180°
