Dual Bin Garbage Enclosure

Dual Bin Garbage Enclosure

Cover image

AZ18045

Approximate assembly time for 3 hours

Click here to watch an installation video

Introduction

General Information

Important Safety Notes:

  • We recommend 2–3 people for a smoother assembly.
  • With assistance, carefully flip the unit onto its feet.
  • Handle carefully to avoid pinching fingers.
  • Apply slight pressure during assembly where noted.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

  • Have reference item number AZ18045
  • Provide the specific part name
  • Include the batch lot number found on the end of the box

Product Specifications

Detailed Dimensions & Specifications

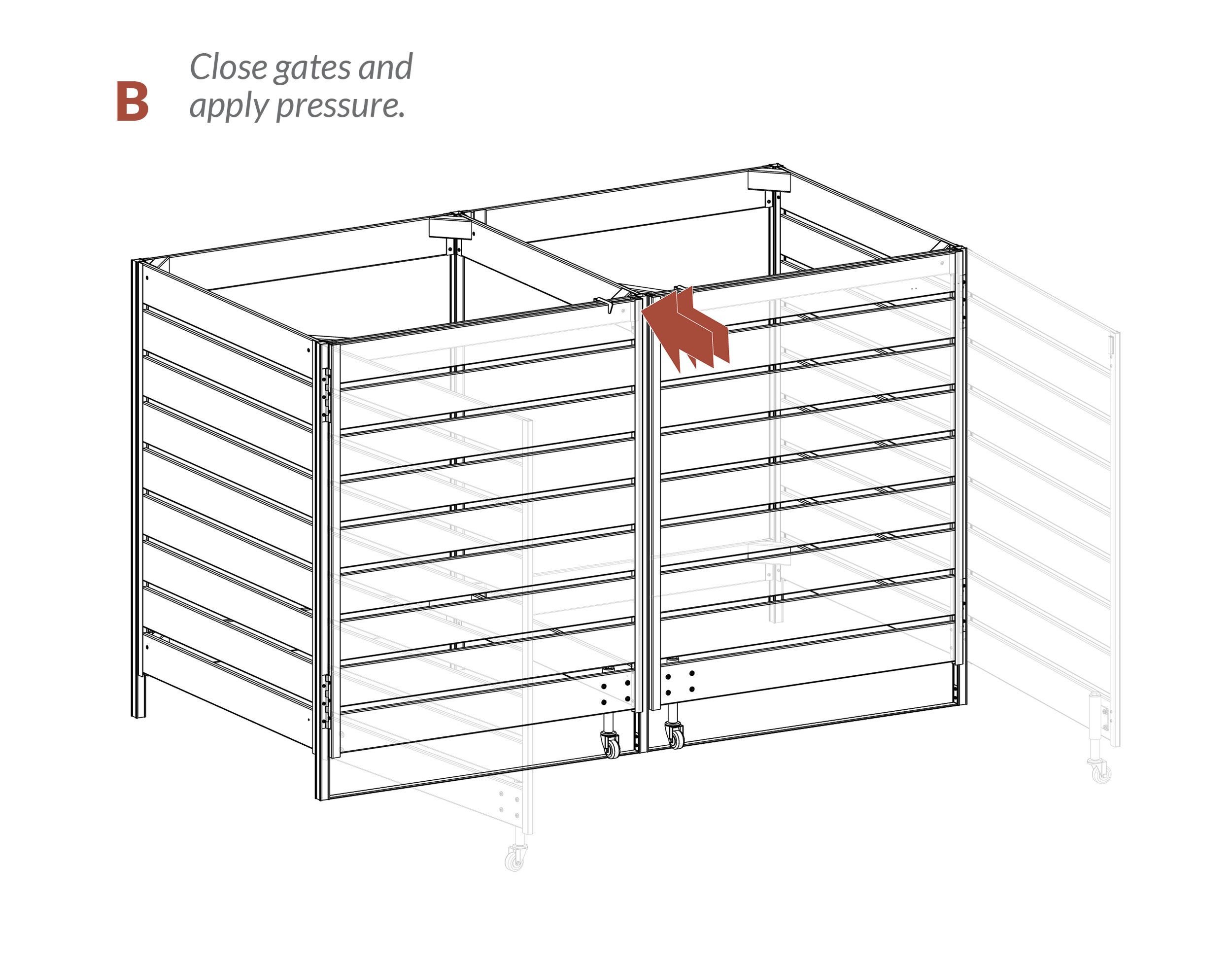

AZ18045 Detailed dimensions

Product Specifications:

  • Overall Width: 80¼ in
  • Overall Length: 41½ in
  • Overall Height: 50⅞ in

Maintenance Recommendation

To ensure longevity of your wooden product, please watch this video on how to best care for your new Dual Bin Garbage Enclosure.

Material List

Posts

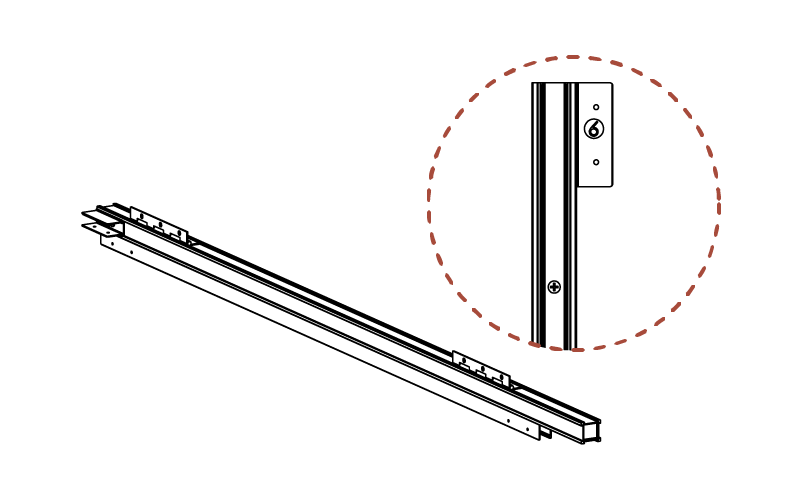

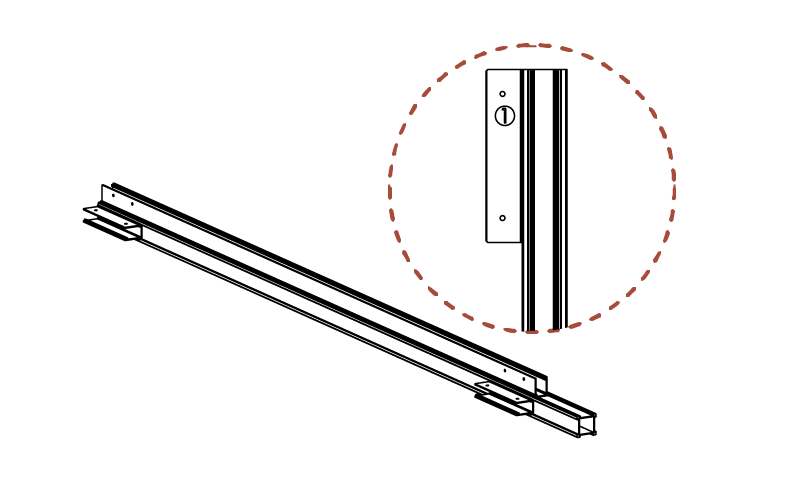

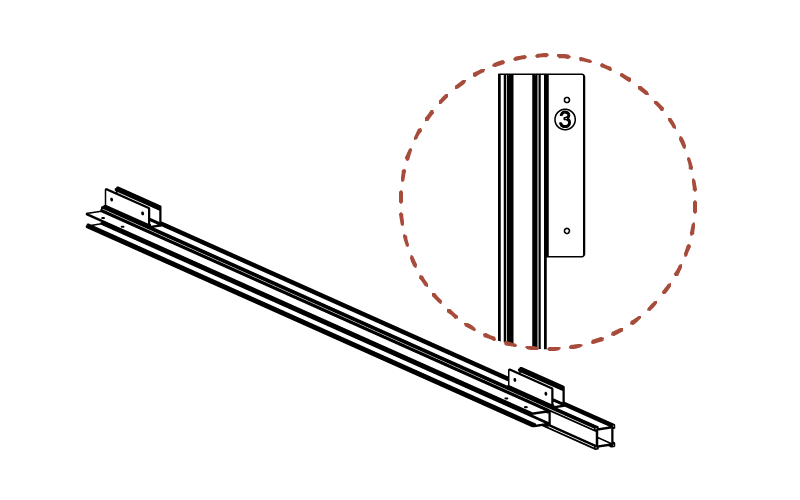

P-1 — Post 1 (1)

AZ18045 Post 1

2⅛" x 2⅛" x 50¾"

P-2 — Post 2 (1)

EZ18045 Post 2 P2

3" x 2⅛" x 50¾"

P-3 — Post 3 (1)

AZ18045 Post 3

2⅛" x 2⅛" x 50¾"

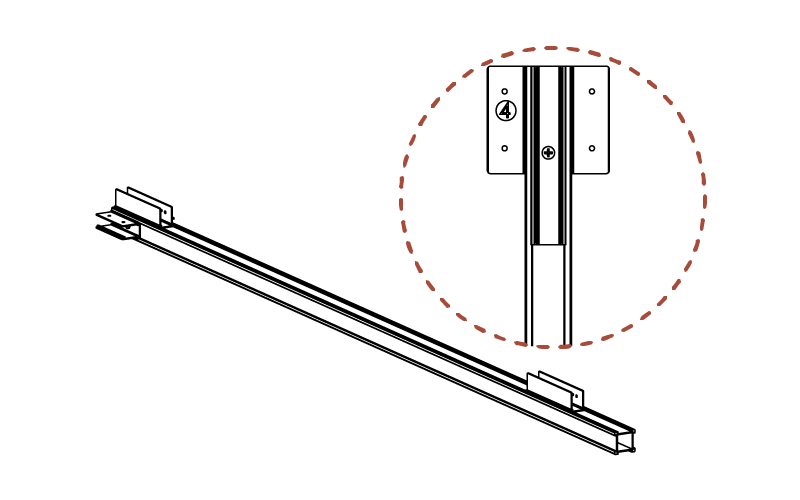

P-4 — Post 4 (1)

AZ18045 Post 4 P-4

3" x 2⅛" x 50¾"

P-5 — Post 5 (1)

AZ18045 P5 Post 5

2⅛" x 2⅛" x 50¾"

P-6 — Post 6 (1)

AZ18045 Post 6 P-6

2⅛" x 2⅛" x 50¾"

Boards

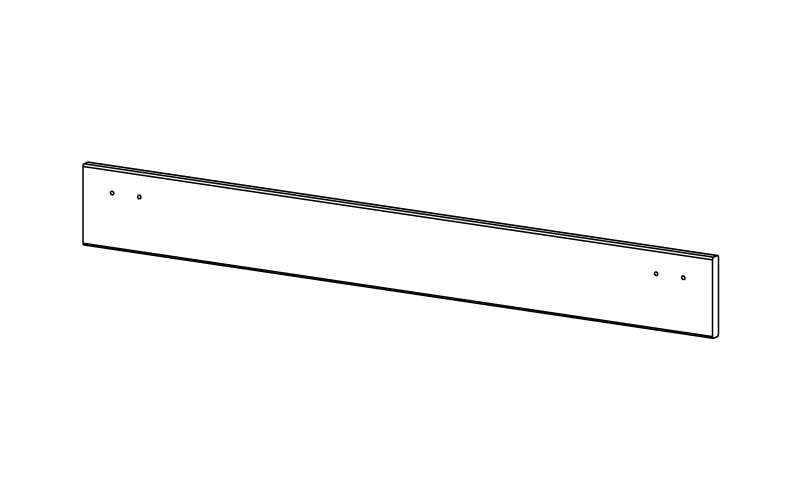

A BRD111 — Top Board (8)

AZ18045 BRD111 (8)

5⁄8" x 4½" x 38¼"

B BRD082 — Wood Board (30)

AZ18045 Board B BRD082 (30)

5⁄8" x 4½" x 38¼"

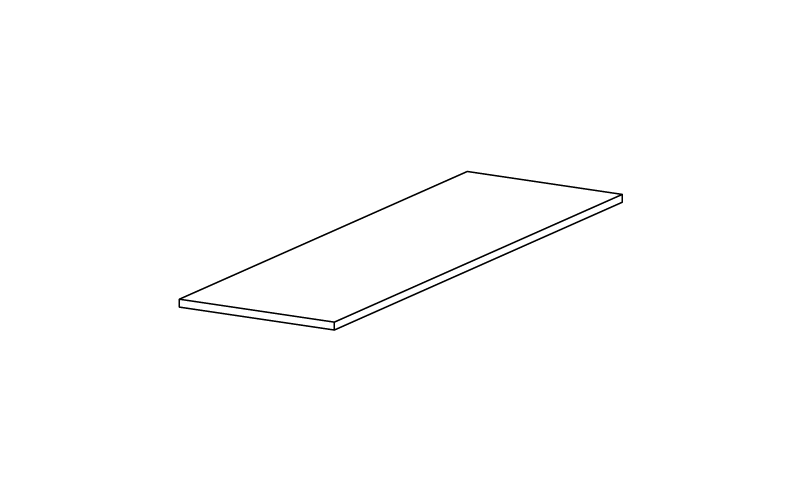

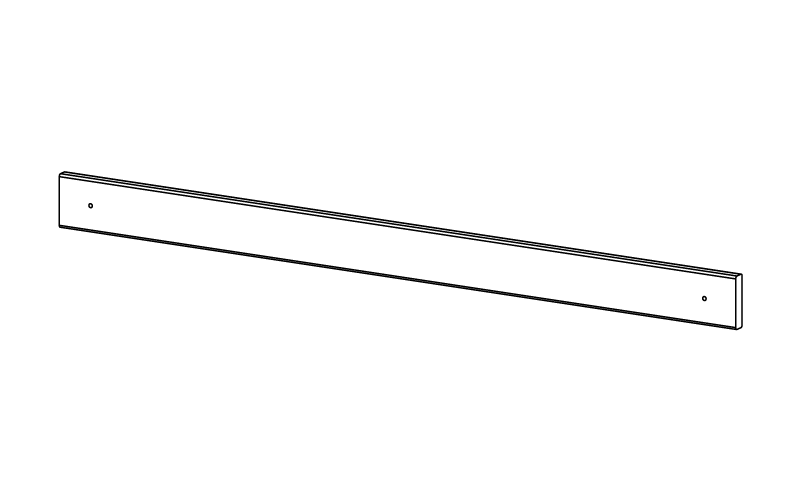

C BRD112 — Front Bridge Board (2)

AZ18045 C BRD112 — Front Bridge Board (2)

5⁄8" x 2½" x 38¼"

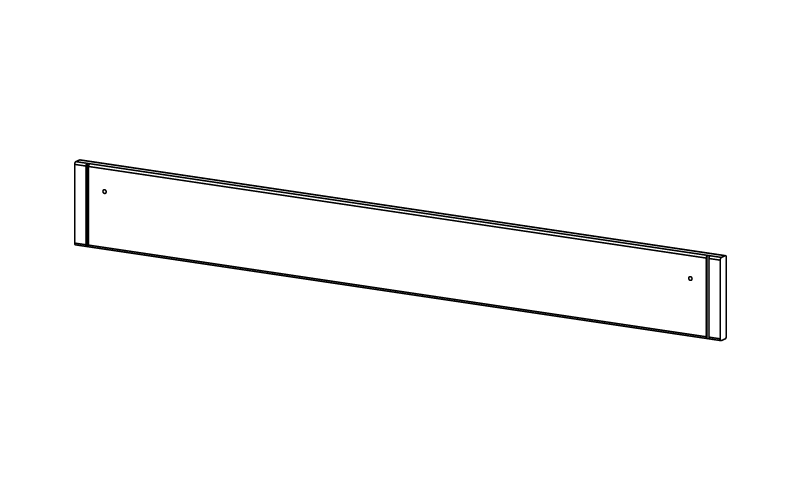

D BRD113 — Middle Board (2)

AZ18045 D BRD113 — Middle Board (2)

5⁄8" x 4½" x 38¼"

E BRD114 — Gate Door Bottom Board (2)

AZ18045 E BRD114 — Gate Door Bottom Board (2)

5⁄8" x 4½" x 38¼"

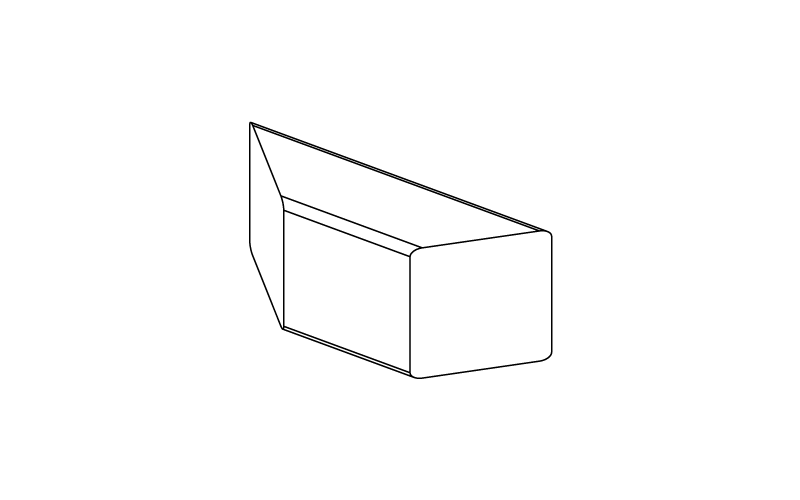

F ACC140 — Corner Brace (9)

AZ18045 F ACC140 Corner Brace (9)

4¾" x 2⅛" x 1⅜"

G ACC141 — Inside Corner Brace (3)

AZ18045 Part G (ACC141) Inside Corner Brace (3)

6¼" x 2⅛" x 1⅜"

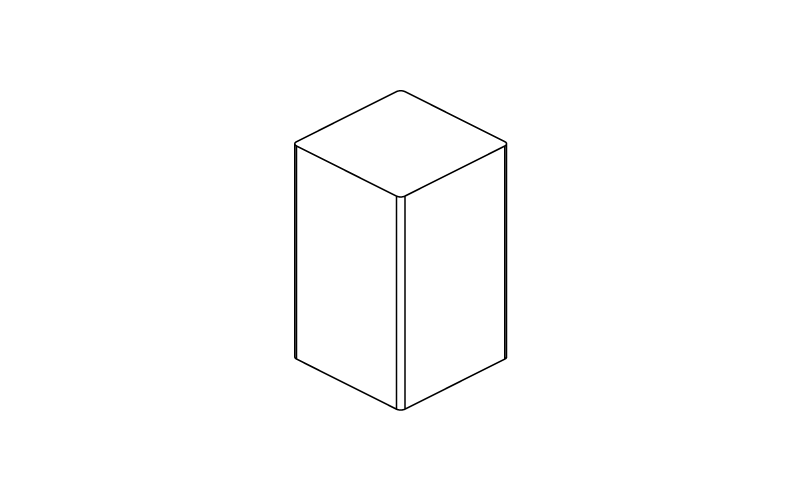

H — Gate Wood Spacer (2)

AZ18045 Part H Gate Wood Spacer (2)

Hardware & Accessories

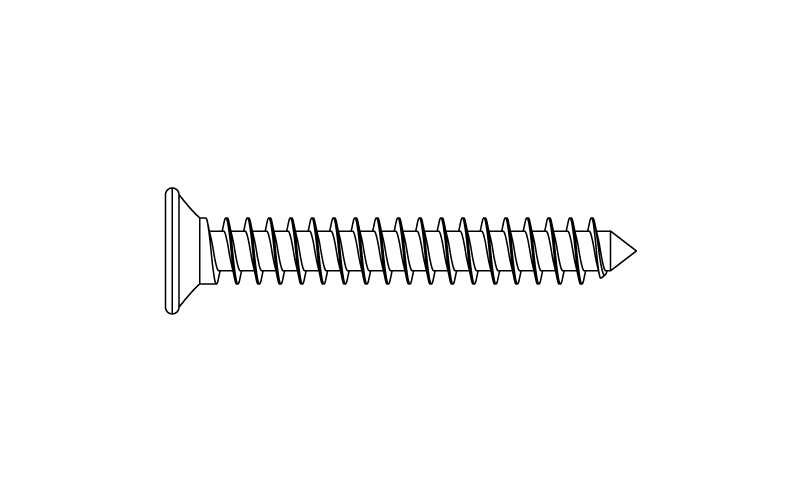

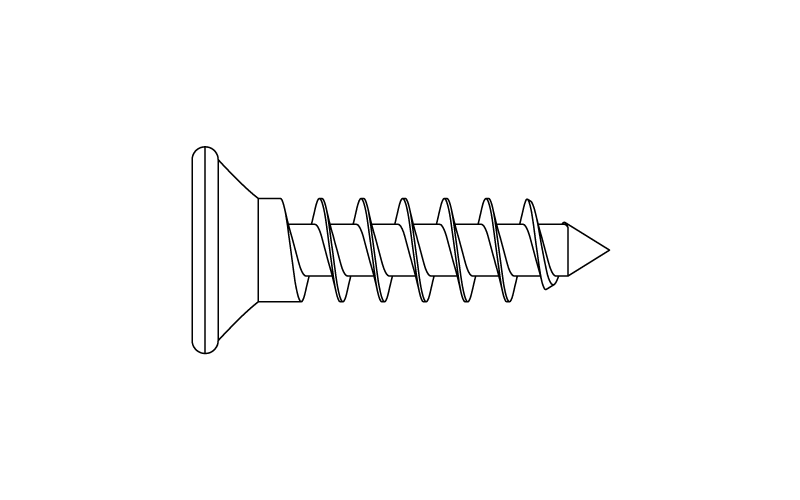

I — 1⅜" Wood Screw (24)

AZ18045 I — 1⅜" Wood Screw (24)

J — ⅝" Wood Screw (4)

AZ18045 J — ⅝" Wood Screw (4)

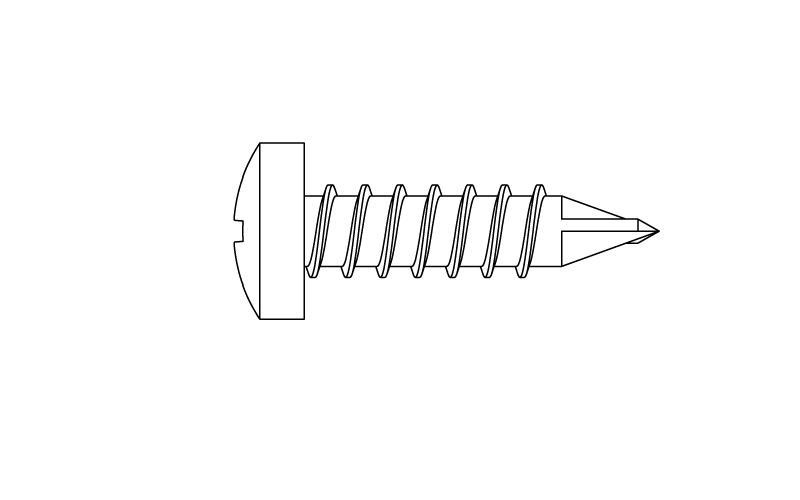

K — 1" Self-Tapping Screw (12)

AZ18045 K — 1" Self-Tapping Screw (12)

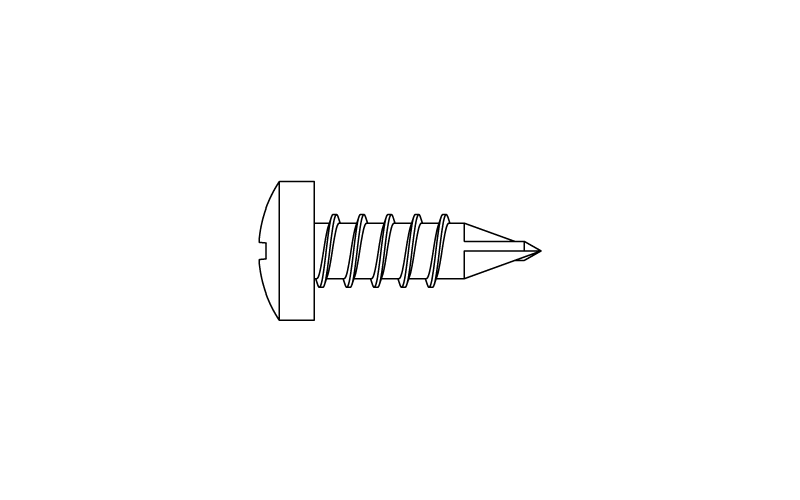

L — ½" Self-Drilling Screw (8)

AZ18045 Part L — 1/2" Self-Drilling Screw (8)

M — ⅝" Self-Drilling Screw (64)

AZ18045 M — ⅝" Self-Drilling Screw (64)

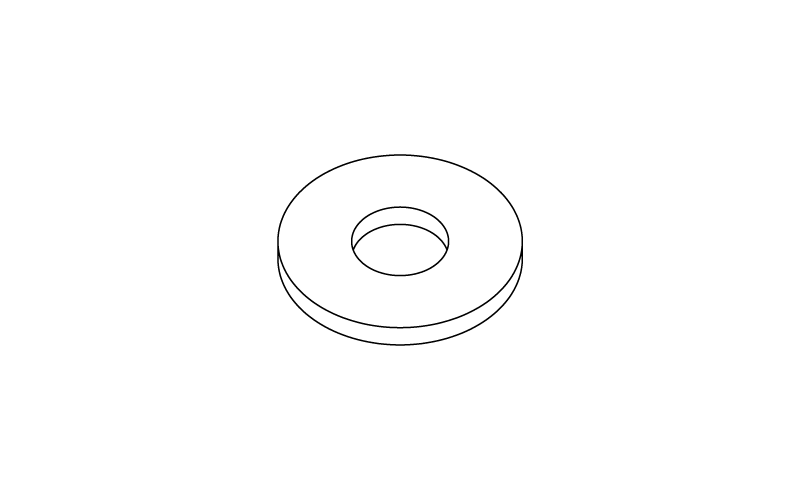

N — Washer (16)

AZ18045 Part N Washer (16)

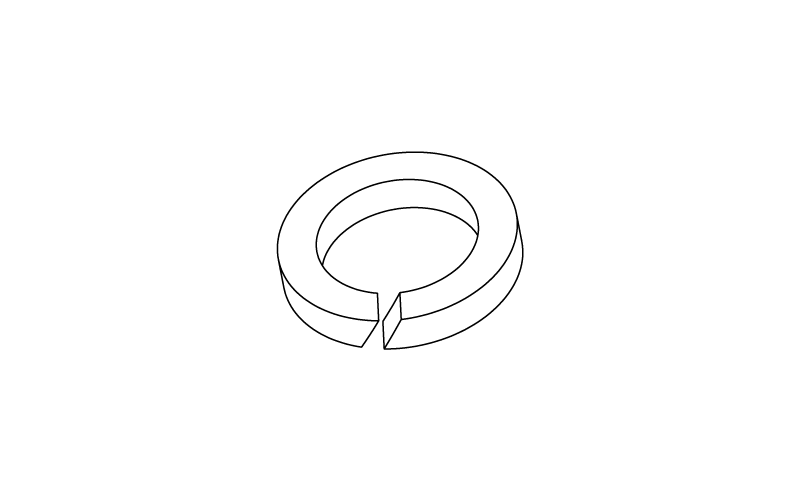

O — Spring Lock Washer (8)

AZ18045 Part O — Spring Lock Washer (8)

P — Nut (8)

P — Nut (8)

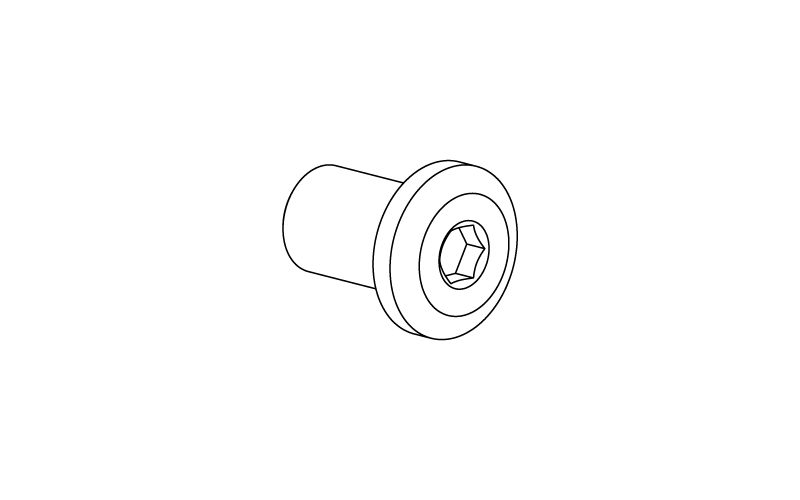

Q — Socket Screw (8)

AZ18045 Part Q Socket screw (8)

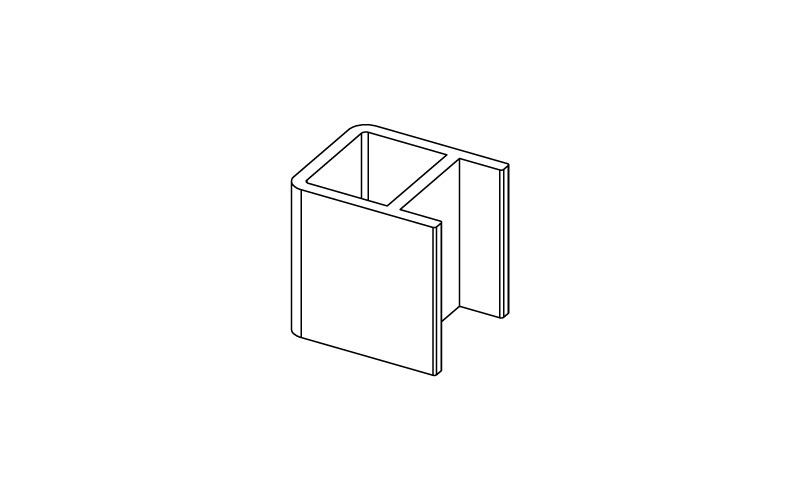

R — Plastic Spacer (64)

AZ18045 R — Plastic Spacer (64)

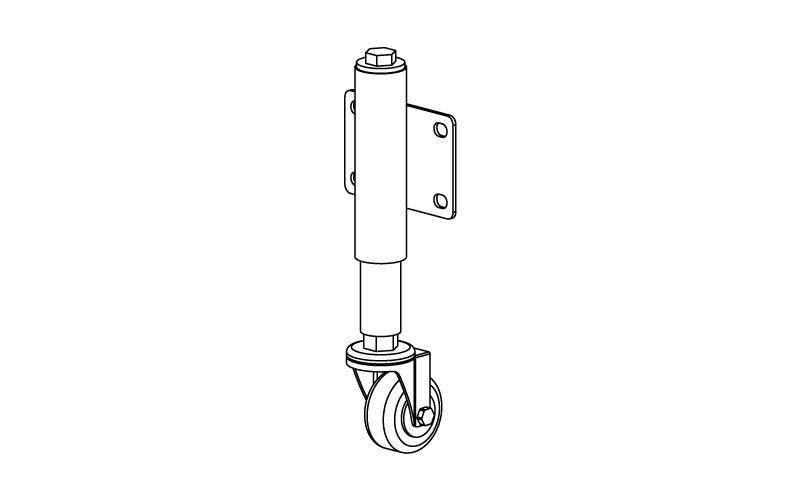

S — Caster Wheel (2)

AZ18045 Part S — Caster Wheel (2)

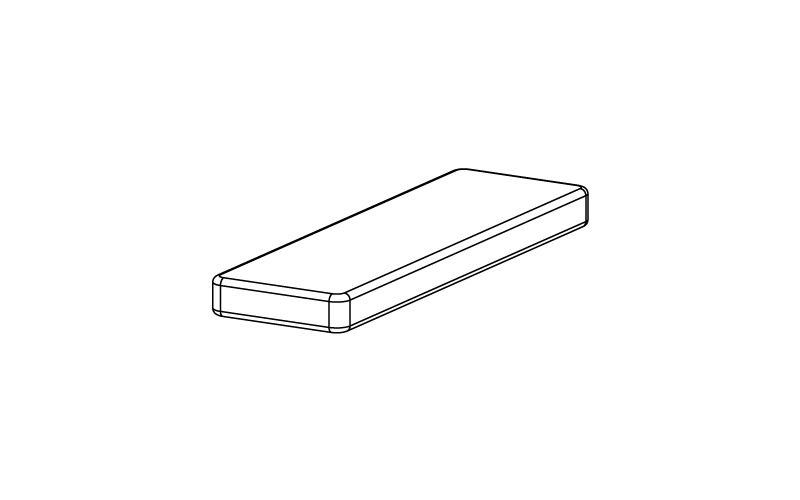

T — Magnet (4)

AZ18045 T — Magnet (4)

T-1 — Magnet Tape (4)

AZ18045 Part T1 — Tape (4)

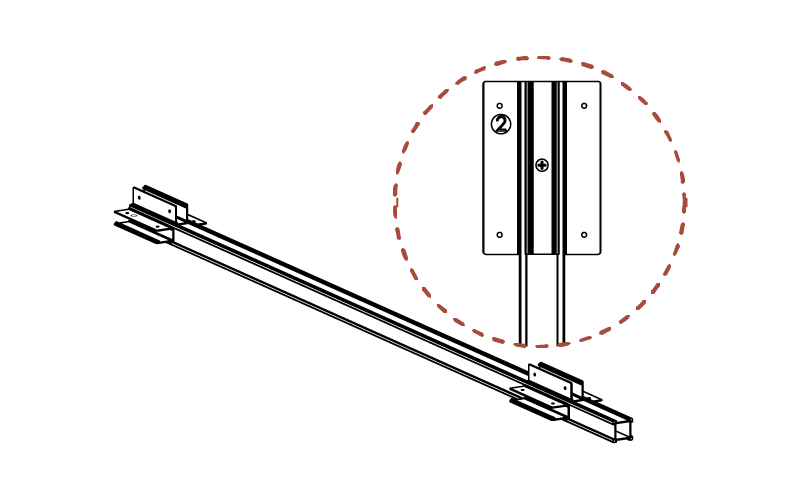

U — Bottom Bridge (2)

AZ18045 U — Bottom Bridge Gate Frame (2)

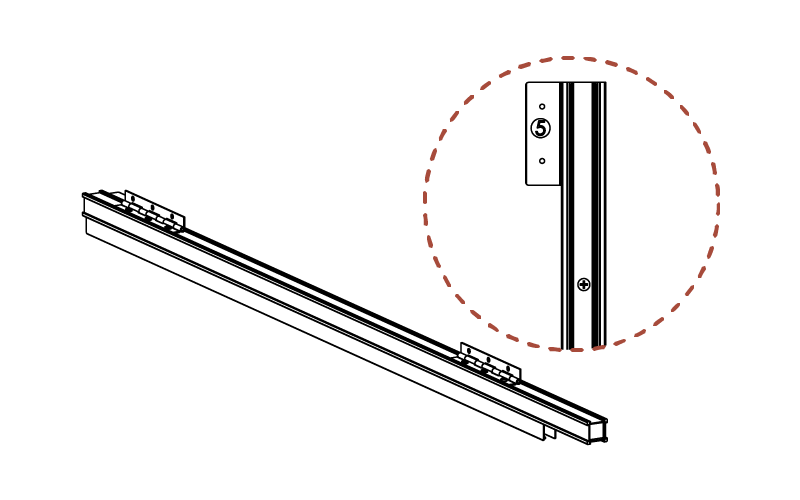

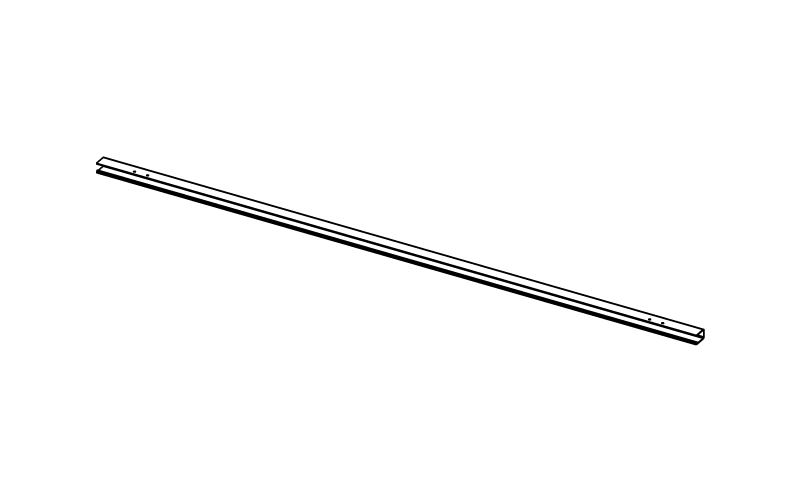

V — Gate Frame (4)

AZ18045 V — Wrench Drill Bit (2)

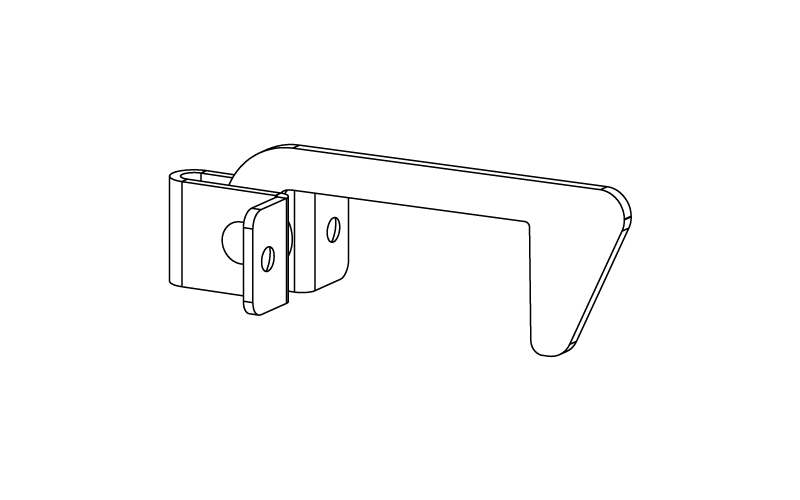

W — Gate Stop (2)

AZ18045 W Gate stop (2)

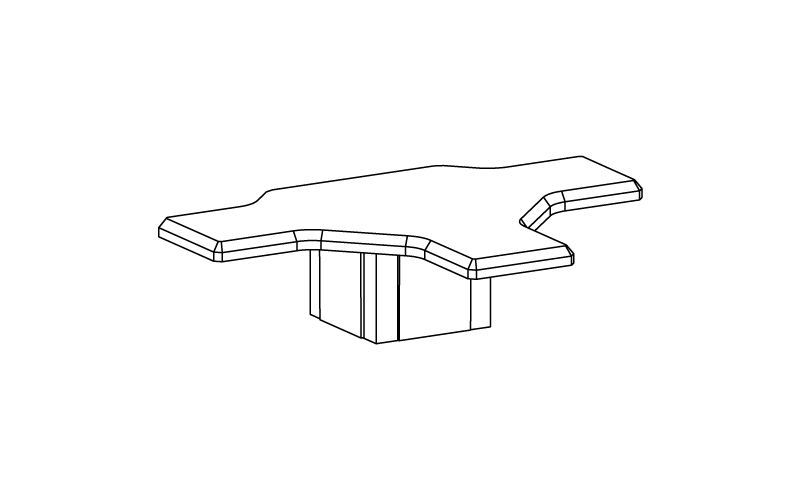

X — Middle Post Cap (2)

AZ18045 X — Middle Post Cap (2)

Y — Corner Post Caps (4)

EC18045 Y Corner Post Caps (4)

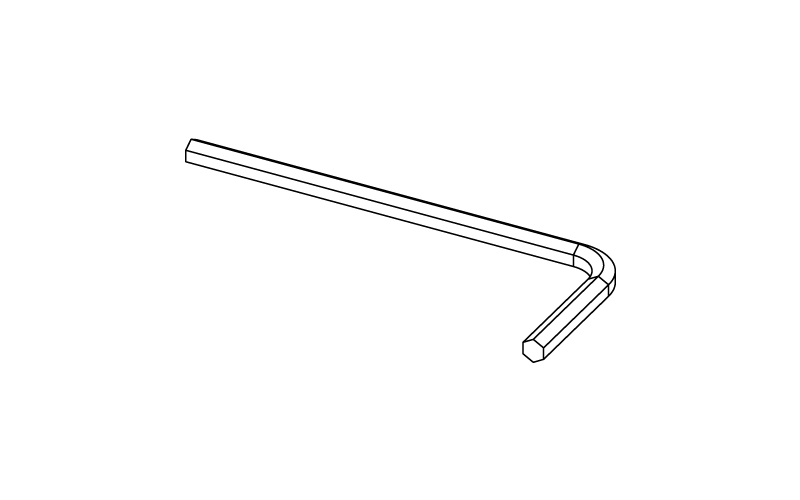

Z — Hex Key (2)

AZ18045 Part Z Hex Key (2)

Z-1 — Wrench (1)

AZ18045 Part A-1 Wrench (1)

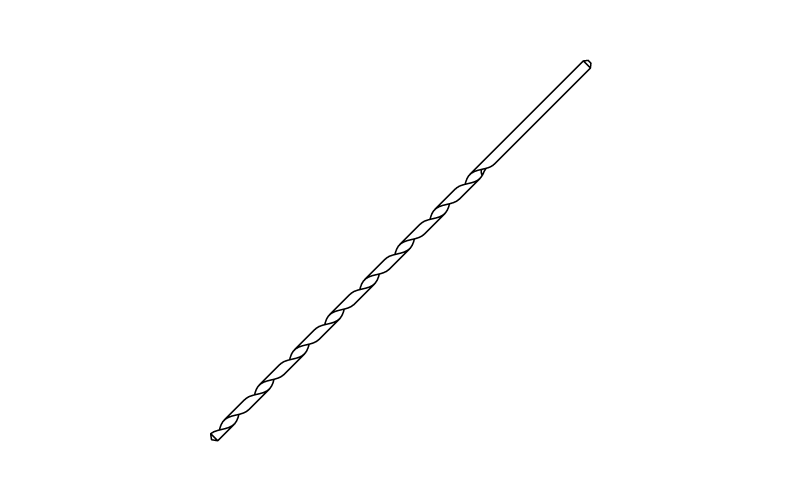

Z-2 — Drill Bit (1)

AZ18045 Part Z-2 Drill Bit

It’s normal to have a few hardware pieces left over after assembly. We include extras for your convenience.

Step 1

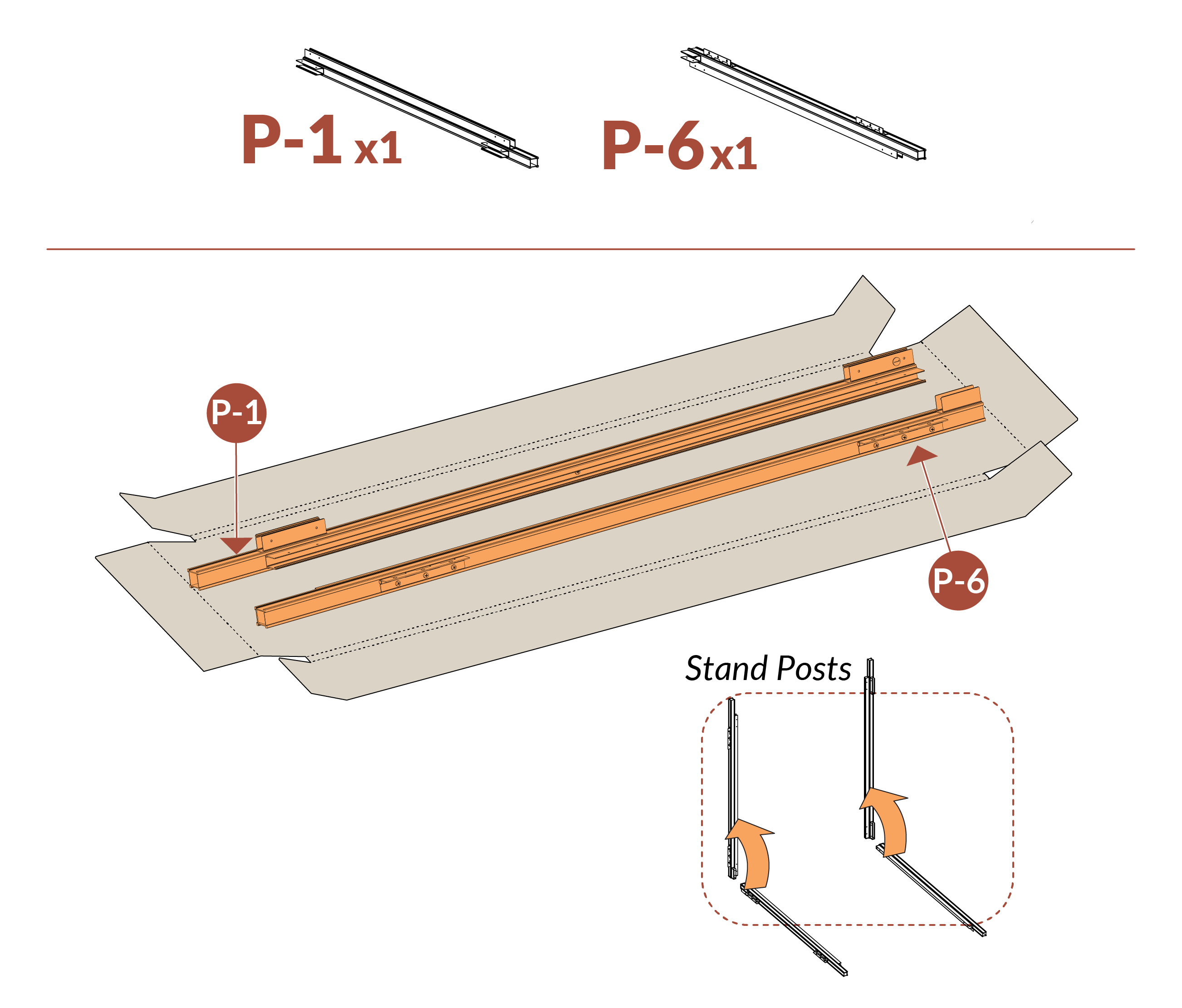

Step 1 find posts 1 and 6 and assemble on a soft surface

Step 2

Step 2 Ensure hole in board A is facing down.

  • Ensure that the hole on Top Board (A-BRD111) is facing down. Follow with one Plastic Spacer (R) on each side.

Step 3

Step 3 insert slats (A) into posts (B) using spacers (R)

Step 4

Step 4 screw boards and posts together using M screws

Step 5

Step 5 Stand posts

Step 6

Step 6 Place boards ensuring hole on board D is facing down,

  • Ensure that the hole on Middle Board (D) is facing down

Step 7

Step 7 Place middle board (D) into rails

  • Ensure that the hole on Middle Board (D) is flush with the bracket while screwing into place.

Step 8

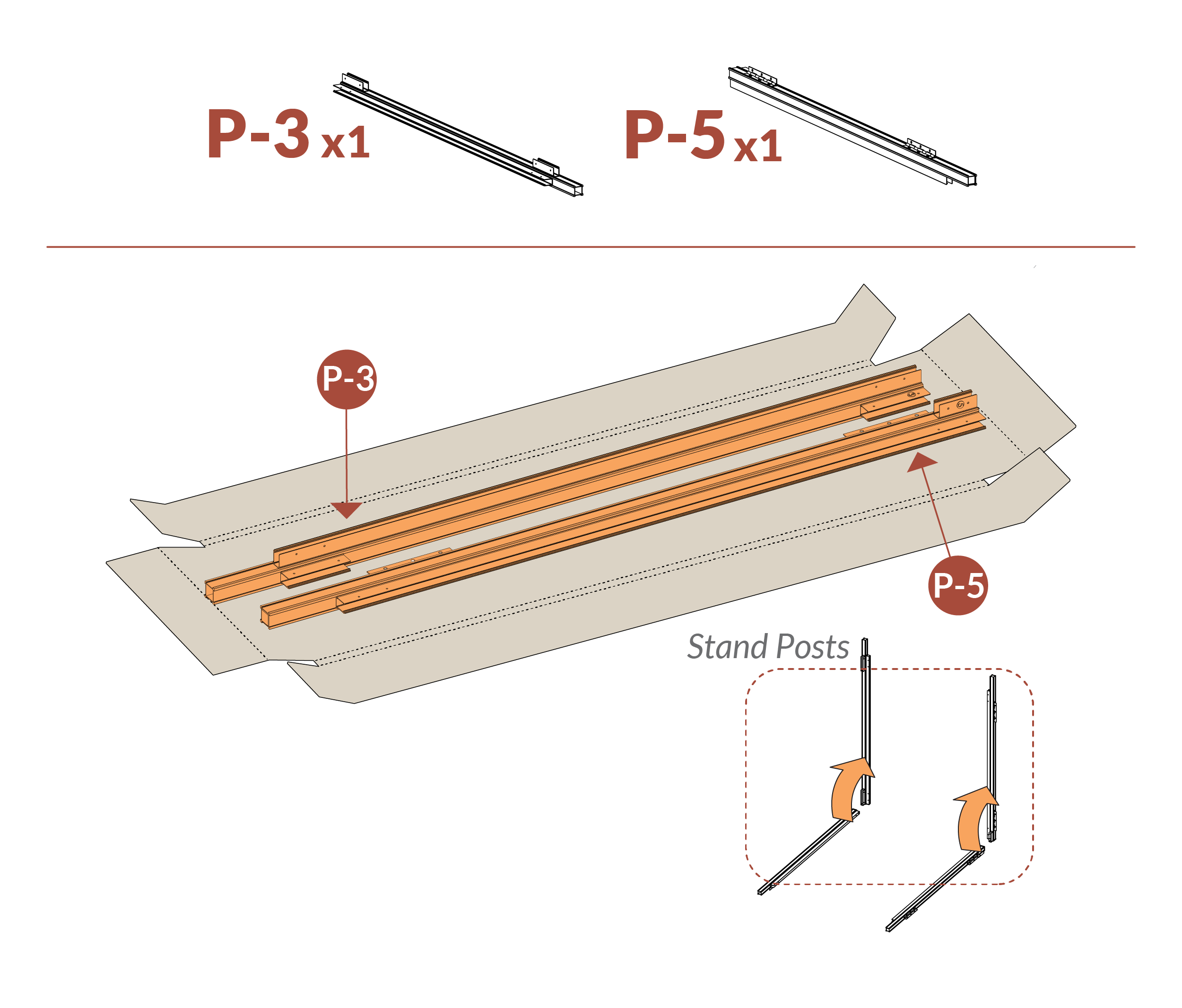

AZ18045 Step 8 Find Post 3 and Post 5, stand

Step 9

AZ18045 Step 9 Insert Boards (A) and use spacers (B)

  • Ensure that the hole on Top Board (A) is facing down. Follow with one Plastic Spacer (R) on each side.

Step 10

AZ18045 Step 10 Insert boards A and B and use spacers R

Step 11

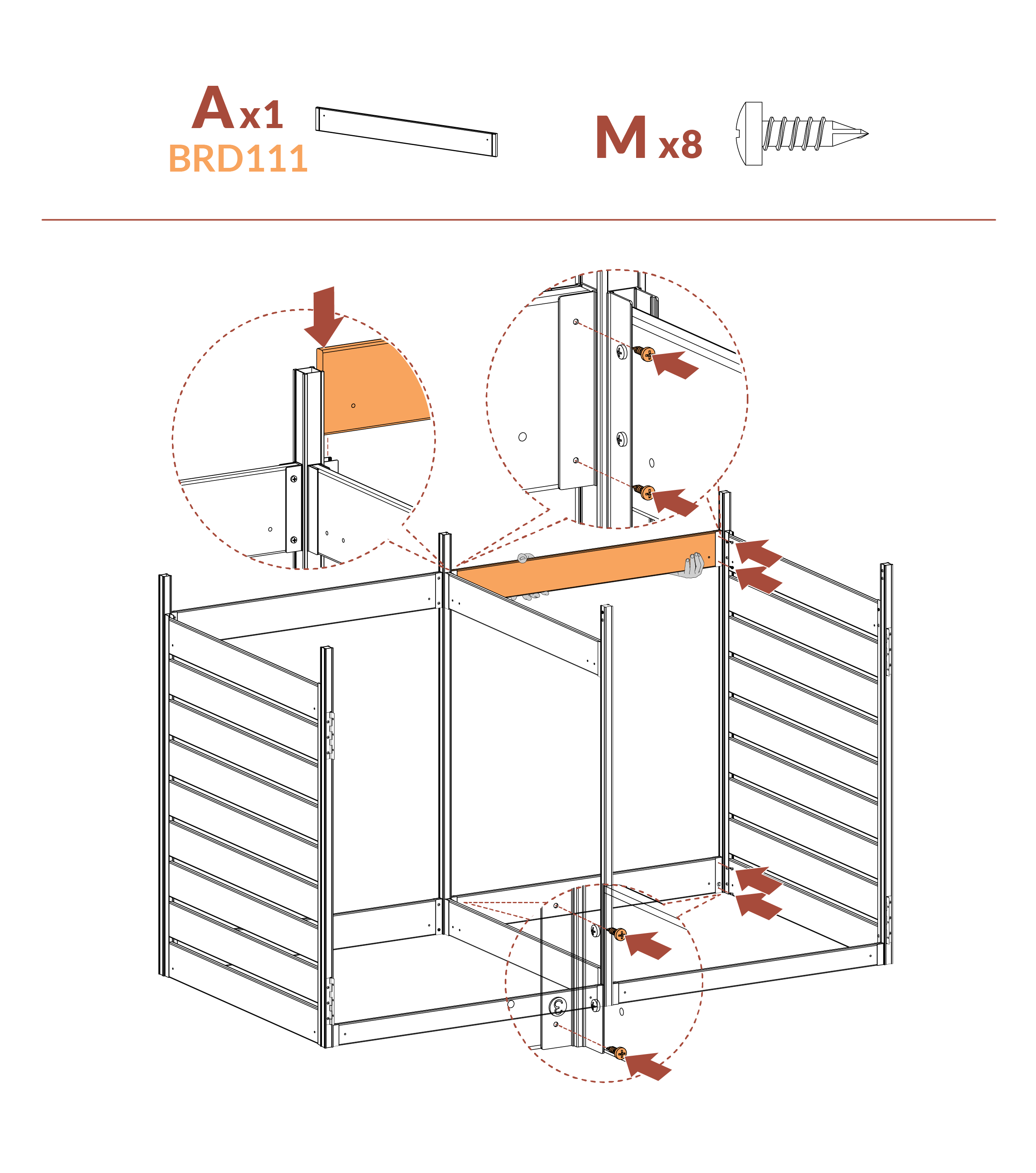

AZ18045 Step 11 Screw into place using (M)

Step 12

AZ18045 Step 12 Place board A into post 1

  • Start with P-1 and P-6

Step 13

AZ18045 Step 13 Slide Posts into place

  • Lower P-2 & P-4 bracket onto Top Board (A)

Step 14

AZ18045 Step 14 Insert board A

Step 15

AZ18045 Step 15 Screw Using M into place

Step 16

AZ18045 Step 16 Insert Board C and Screw with M

Step 17

AZ18045 Step 17 Insert board A and C as shown

Step 18

AZ18045 Step 18 Place assembled part as shown

  • Lower P-3 & P-5 bracket onto Top Board (A) & Front Bridge (C)

Step 19

AZ18045 Step 19 Place boards as shown, screw with (M)

Step 20

AZ18045 Step 20 Screw as shown

Step 21

AZ18045 Step 21 Use corner spacers as shown, screw in place

Step 22

AZ18045 Step 22 Use spacer G and screw using I as shown

AZ18045 Step 23 Flip unit

  • With assistance, carefully flip your unit on it's feet

Step 23

AZ18045 Step 23 Attach hardware (W) with (J) screws

  • Ensure that the edge is flush to the top of the wood

Step 24

AZ18045 Step 24 predrill holes and screw brackets into place

  • Ensure that the Bottom Bridges (U) are sitting flush inside of your front post channels.

Step 25

AZ18045 Step 25 Screw brackets using (L) screws

Step 26

AZ18045 Step 26 Find part V, stand frame

Step 27

AZ18045 Step 28 insert boards B, E, and space with R

  • Ensure that Wood Board (B) is inserted first followed by a Plastic Spacer (R) on each side
  • Ensure that they are slid to the bottom of the channel

Step 28

AZ18045 Step 29 Apply slight pressure when screwing, repeat

  • Alternate Wood Boards and Plastic Spacers, finishing with Gate Door Bottom Board (E)

Step 29

AZ18045 Step 30 Apply slight pressure when screwing, repeat

  • Apply slight pressure

Step 30

AZ18045 Step 31

  • Ensure the four holes on Gate Door Bottom Board (D) are on the bottom inside Front Post (P-4)

Step 31

AZ18045 Step 31 Use block H for spacing

  • Ensure your gate is flush with Front Bridge Board (C)
  • Use Gate Stopper (W) to help hold gate standing up
  • Place Wood Spacers (H) under your gate

Step 32

AZ18045 Step 32 Predrill holes

  • Using the included Drill Bit (Z-2), use your hinge as a template to place your six holes on the side of your gate.

Step 33

AZ18045 Step 33 Screw using K

Step 34

AZ18045 Step 34 Screw as shown

Step 35

AZ18045 Step 35 tighten with Z

Step 36

AZ18045 Step 36 Repeat steps 30-35 to install 2nd gate

Step 37

AZ18045 Step 37

  • Ensure your gate's flush with the top of your unit by lowering or raising the Caster Wheel (S) by using Wrench (Z-1)

Adjusting Castor Wheel Height

AZ18045 Adjust Caster Wheel Height

  • If the wheel is not contacting the ground, use one hand to hold the bottom portion of the caster while rotating the wrench until the wheel firmly contacts the ground

Step 38

AZ18045 Step 38 Use parts T and T-1 as shown, repeat

  • Warning: Handle carefully so as not to pinch fingers

AZ18045 open gates, apply magnets with tape

AZ18045 Close gates and apply pressure

AZ18045 Let sit for 72 hours for max adhesion

Step 39

AZ18045 Step 39 Install caps as shown

  • It’s normal to have a few hardware pieces left over after assembly. We include extras for your convenience.
