General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18022
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Product Specifications:

• Panel Height: 60 ½ in
• Panel Width: 38 ⅝ in
• Space Between Boards: ⅝ in
• Stake Depth into Ground: 13 ½ in

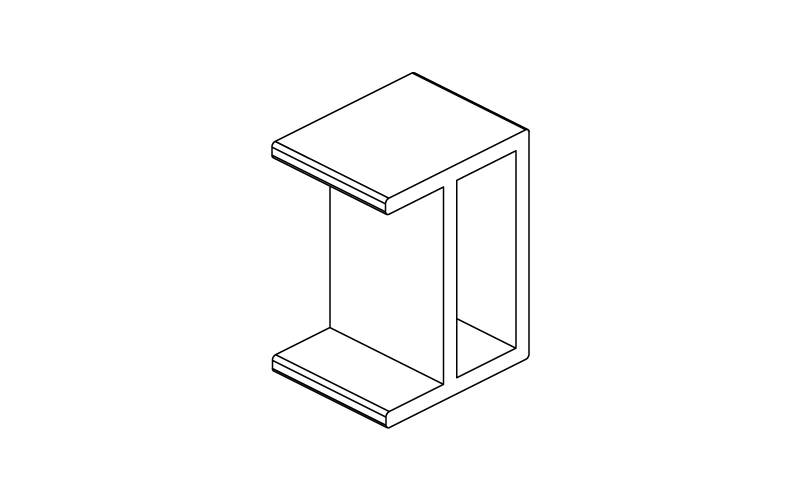

A. Spacer (18)

⅞" x 1 ⅛" x ⅝"

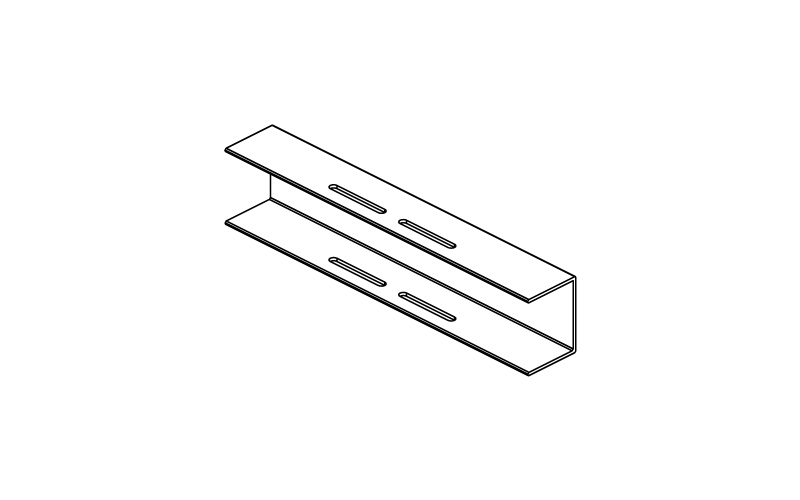

B. Post Bridge (2)

⅞" x 1 ⅛" x 5 ½"

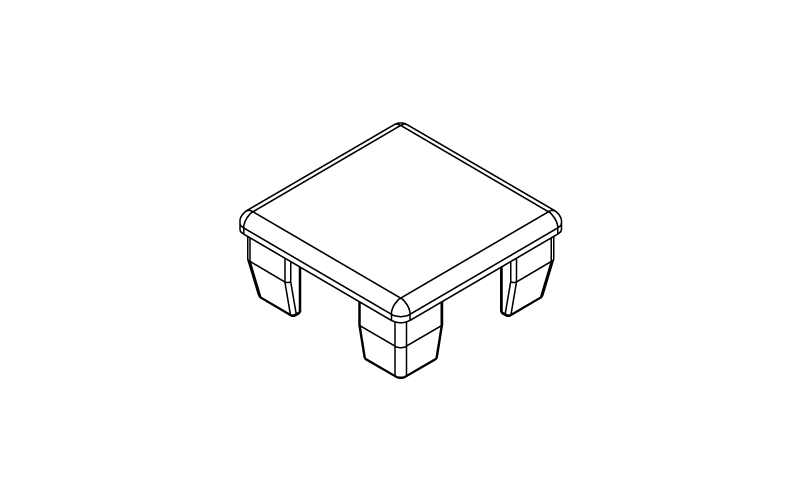

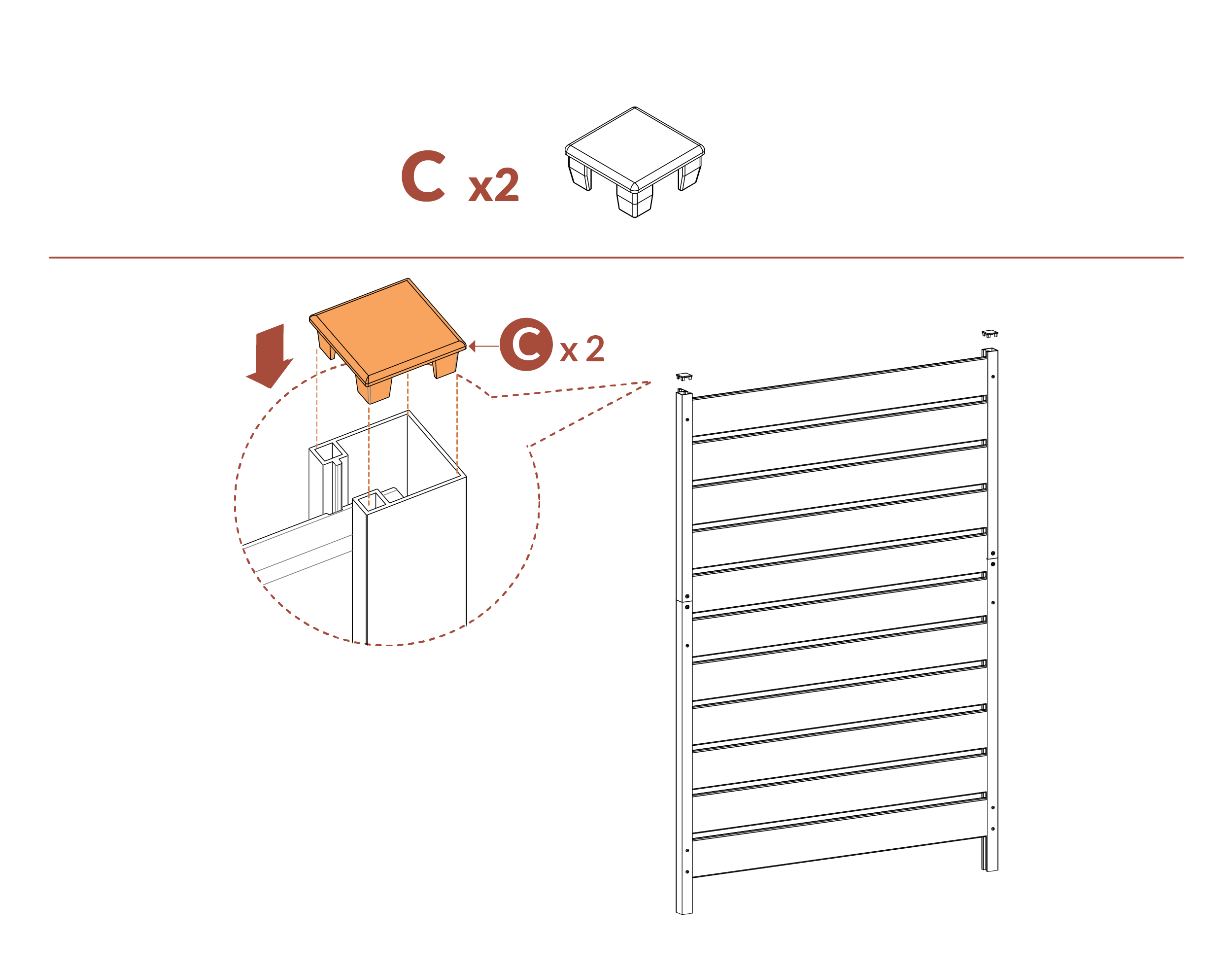

C. Post Cap (2)

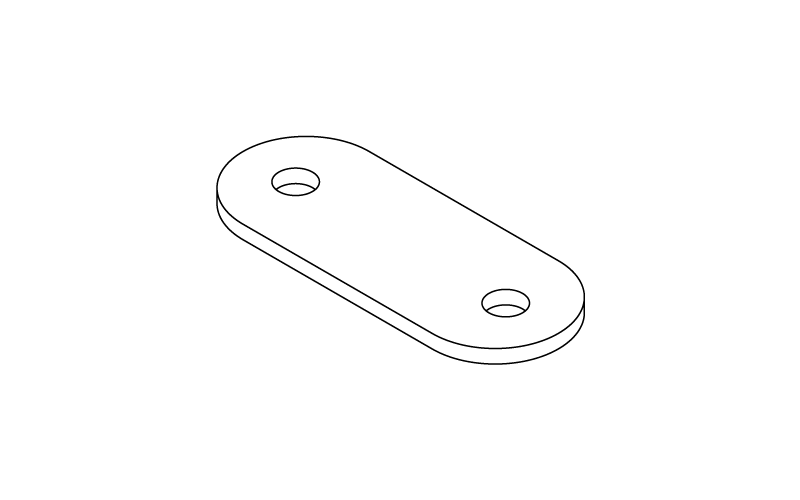

D. Joiner Clip (2)

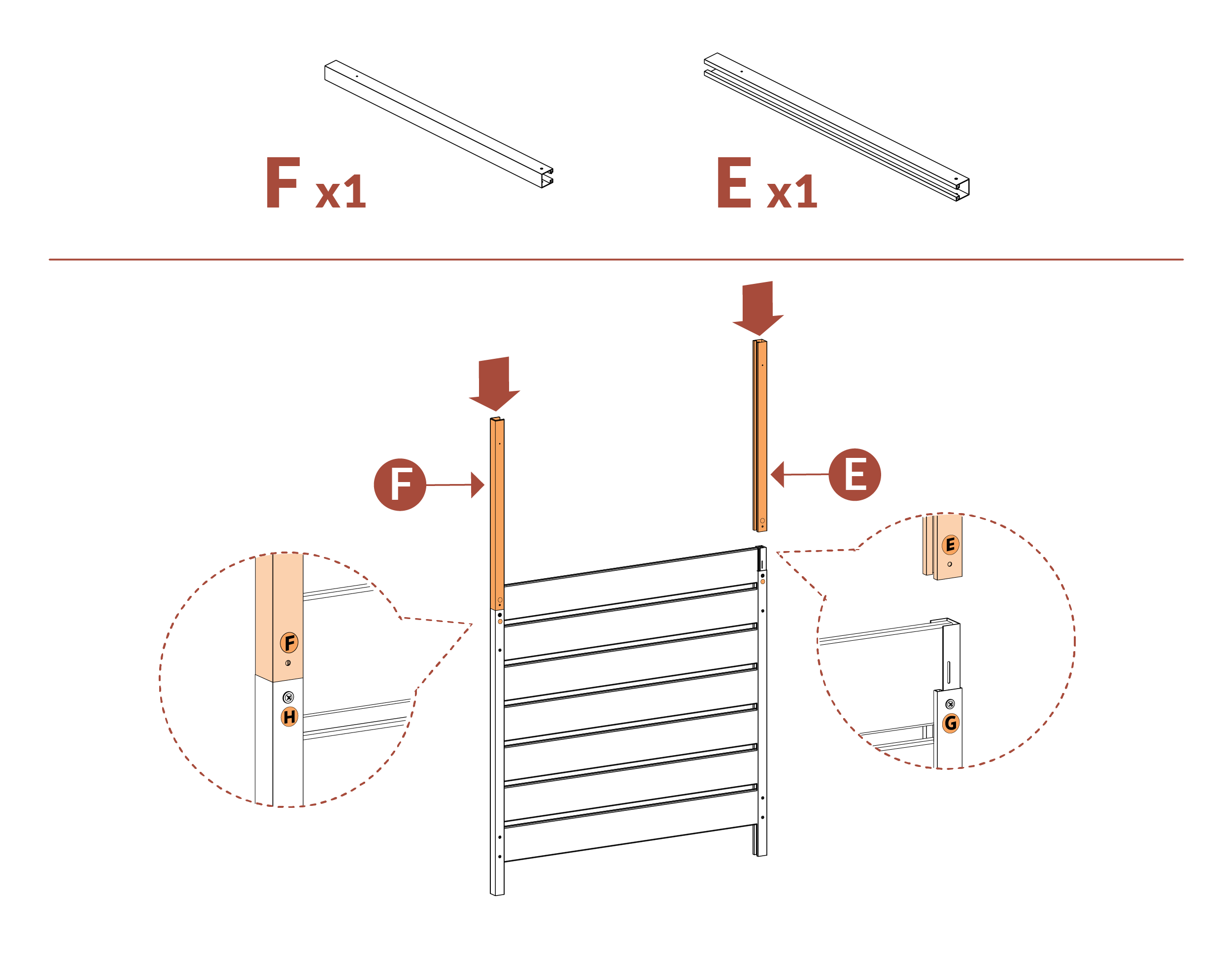

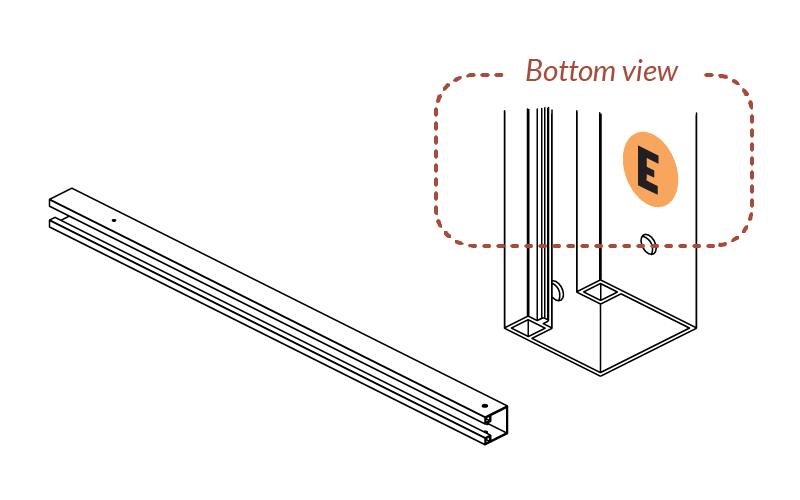

E. Right Post Top (1)

1 ¼" x 1 ¼" x 24 ⅛"

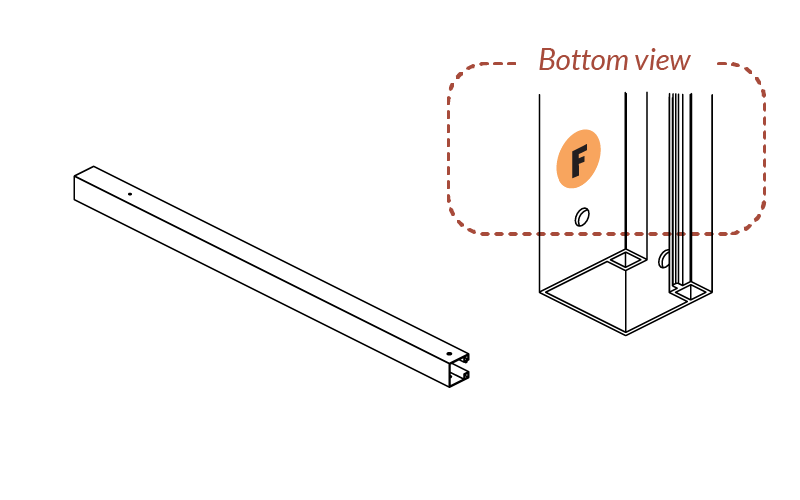

F. Left Post Top (1)

1 ¼" x 1 ¼" x 24 ⅛"

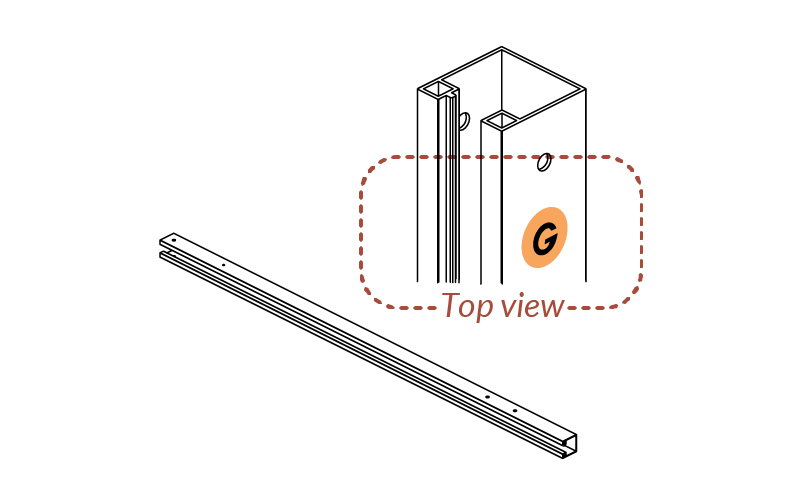

G. Right Post Bottom (1)

1 ¼" x 1 ¼" x 36 ⅜"

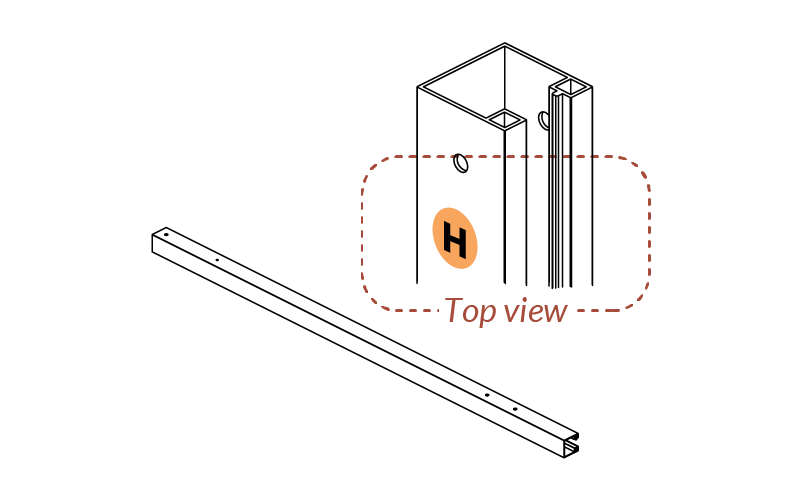

H. Left Post Bottom (1)

1 ¼" x 1 ¼" x 36 ⅜"

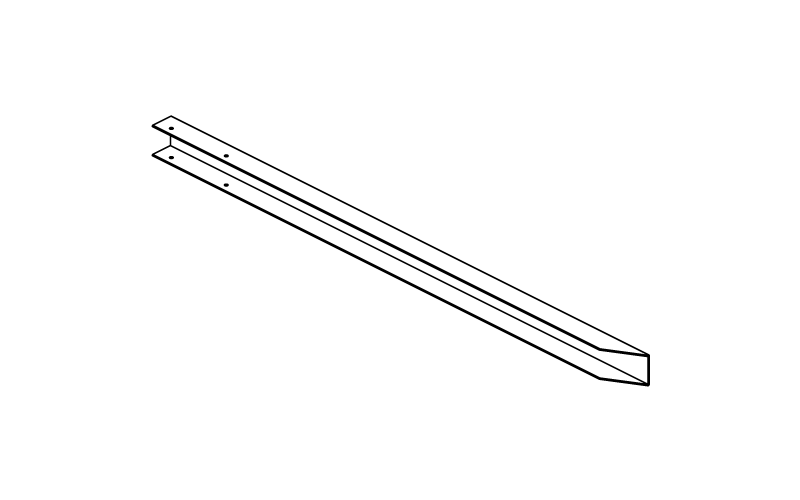

I. Ground Stake (2)

⅞" x 1 ⅛" x 21 ½"

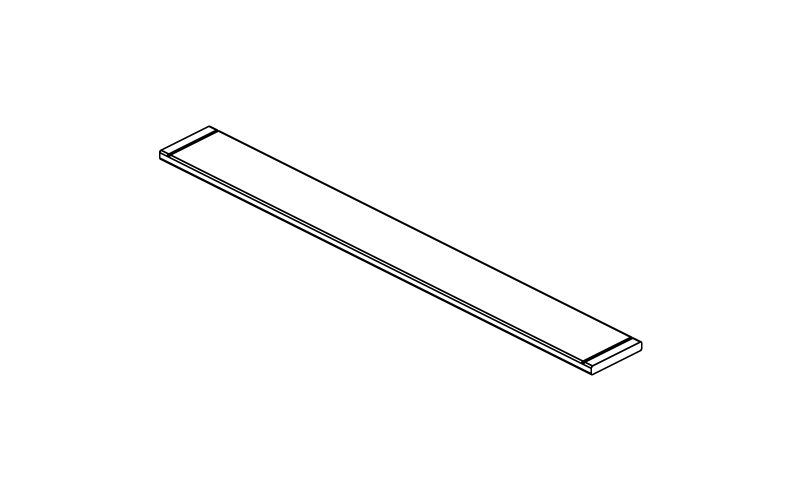

J. Wood Board (11)

⅝" x 4 ½" x 38 ¼"

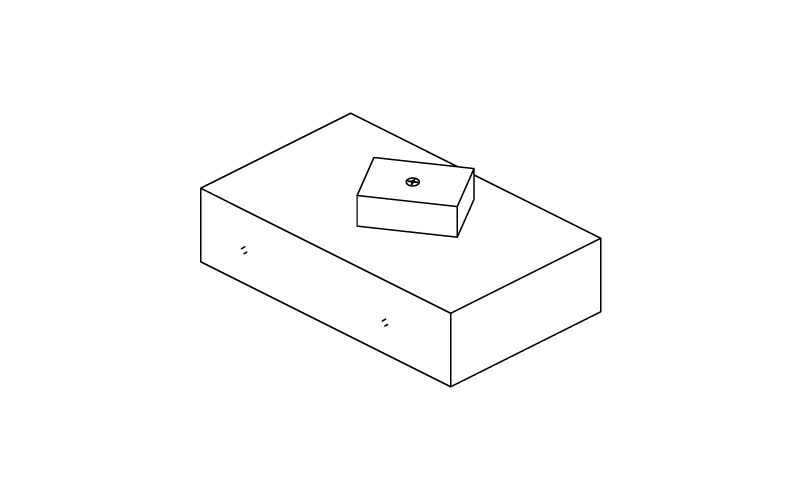

K. Wood Block (1)

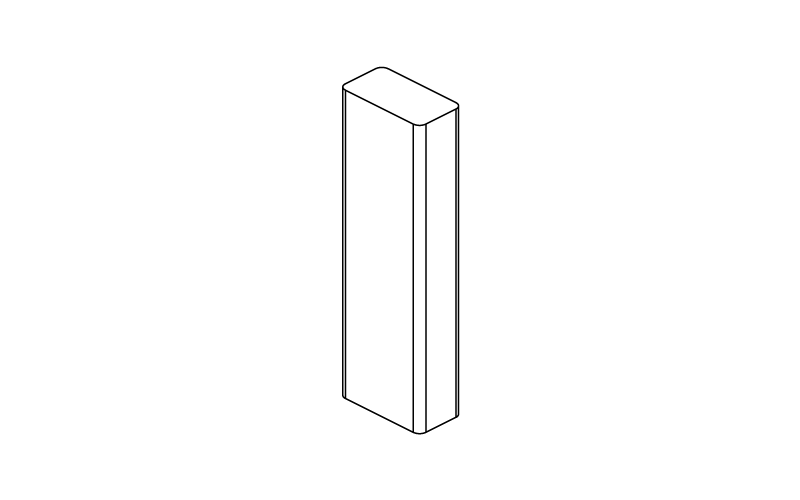

L. Wood Spacer (2)

⅝" x 1 ¼" x 3 ⅞"

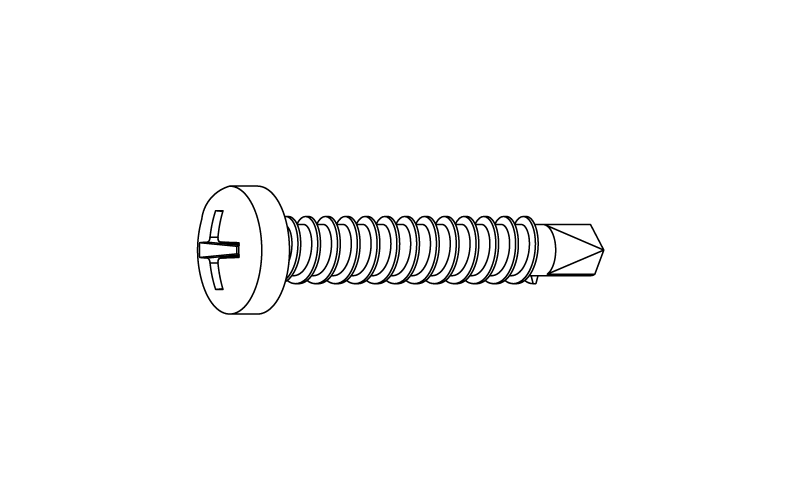

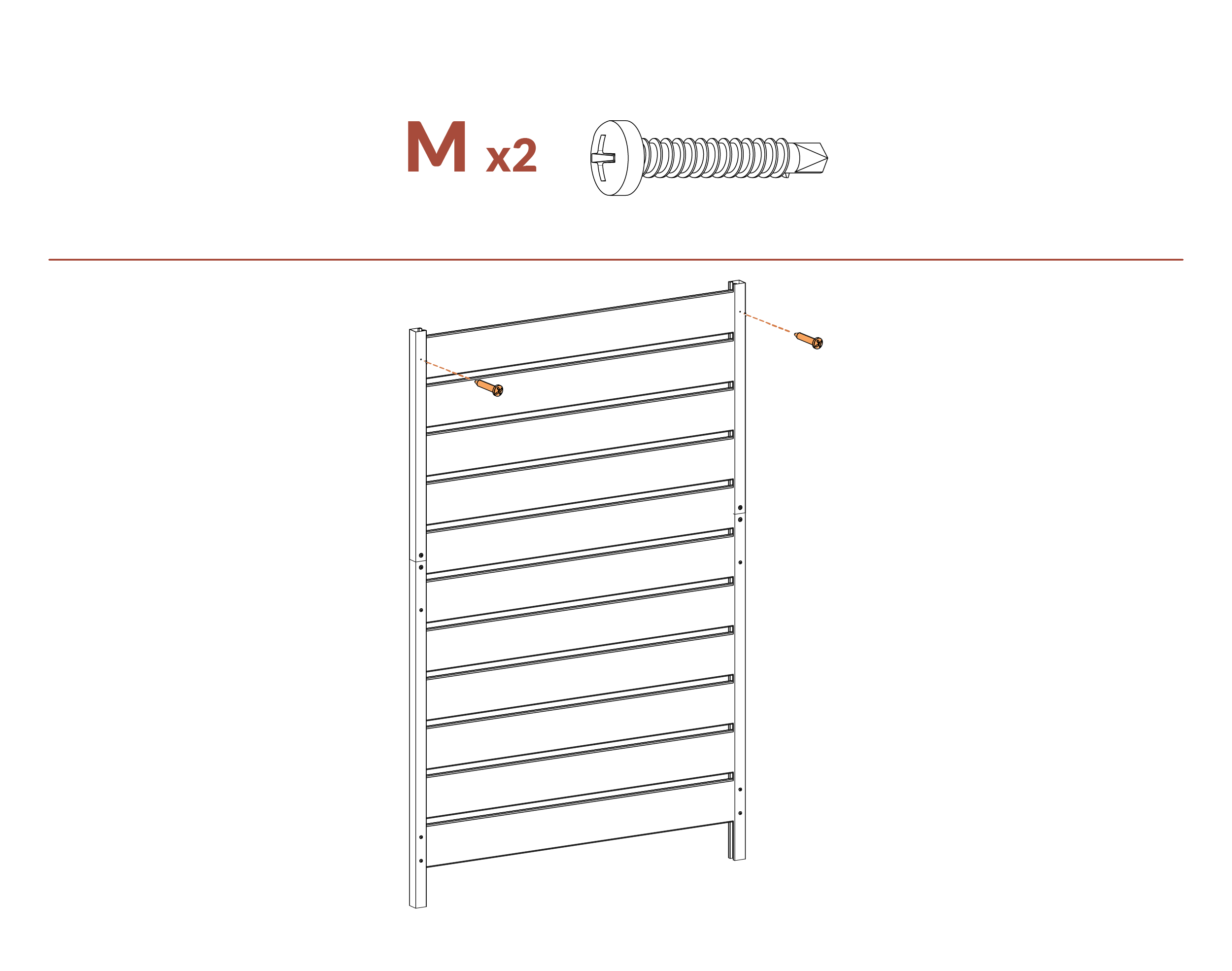

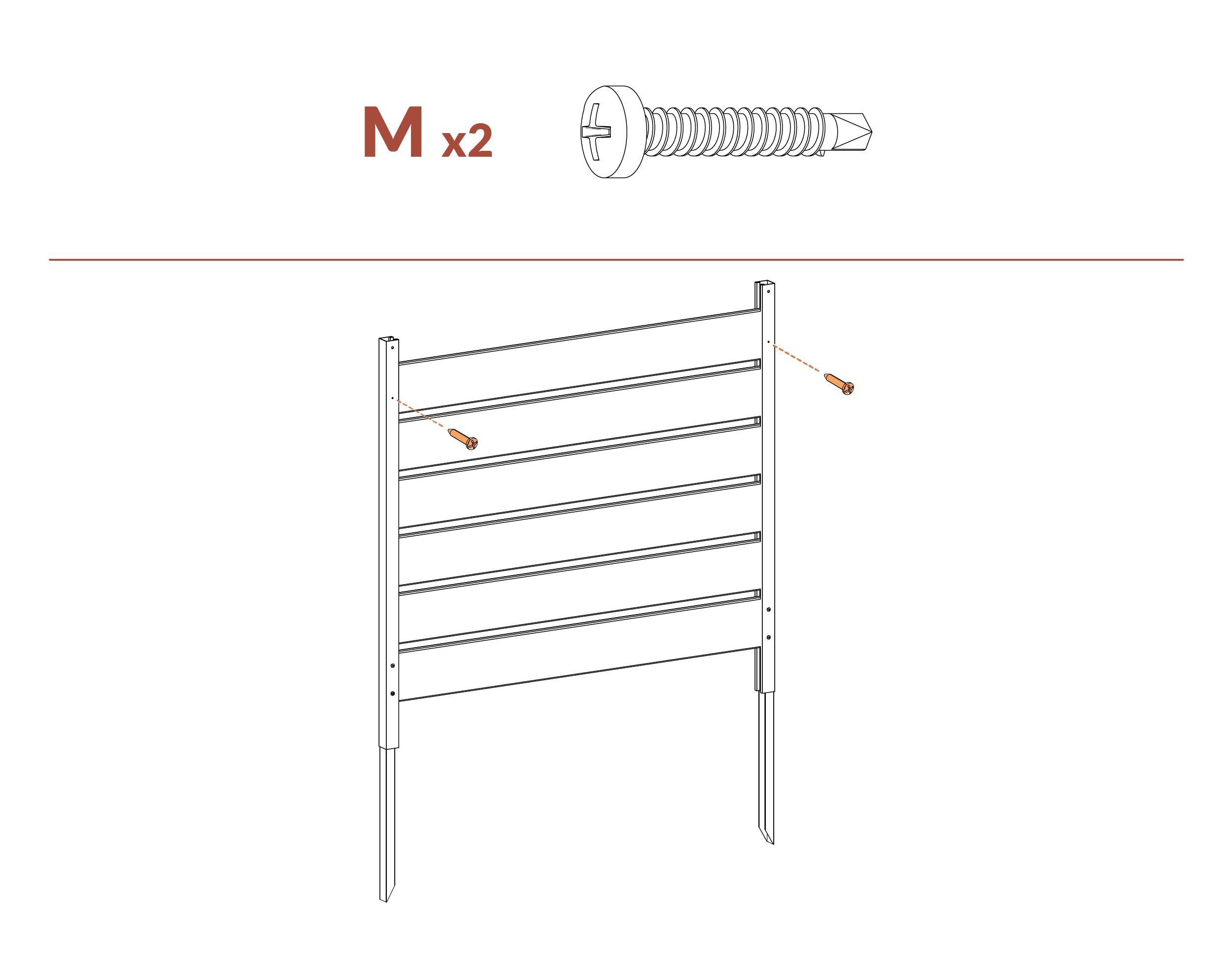

M. 1" Self-Drilling Stainless Steel Screw (12)

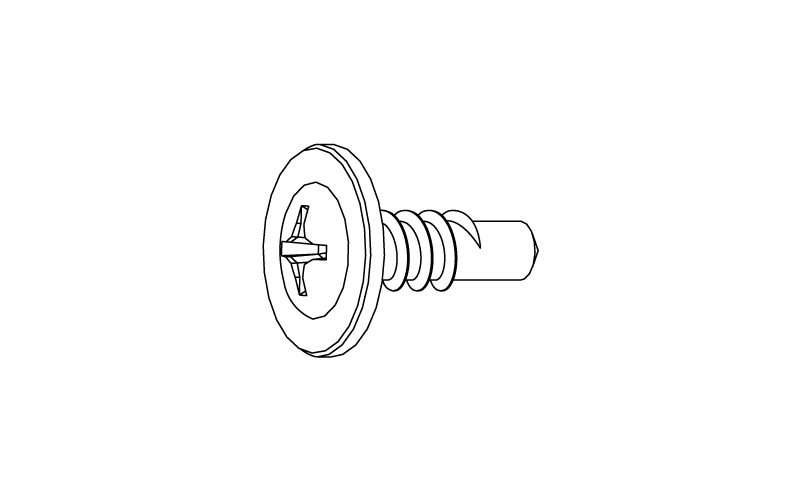

N. ½" Wide Head Stainless Steel Screw (8)

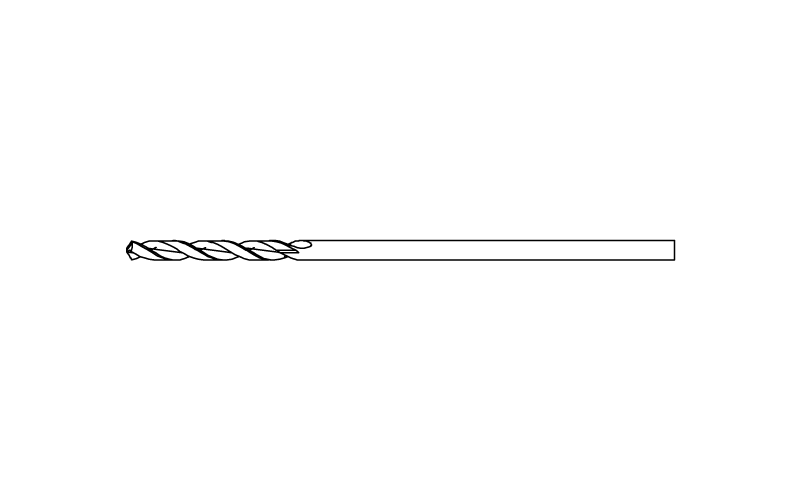

O. ⅛" Drill Bit (1)

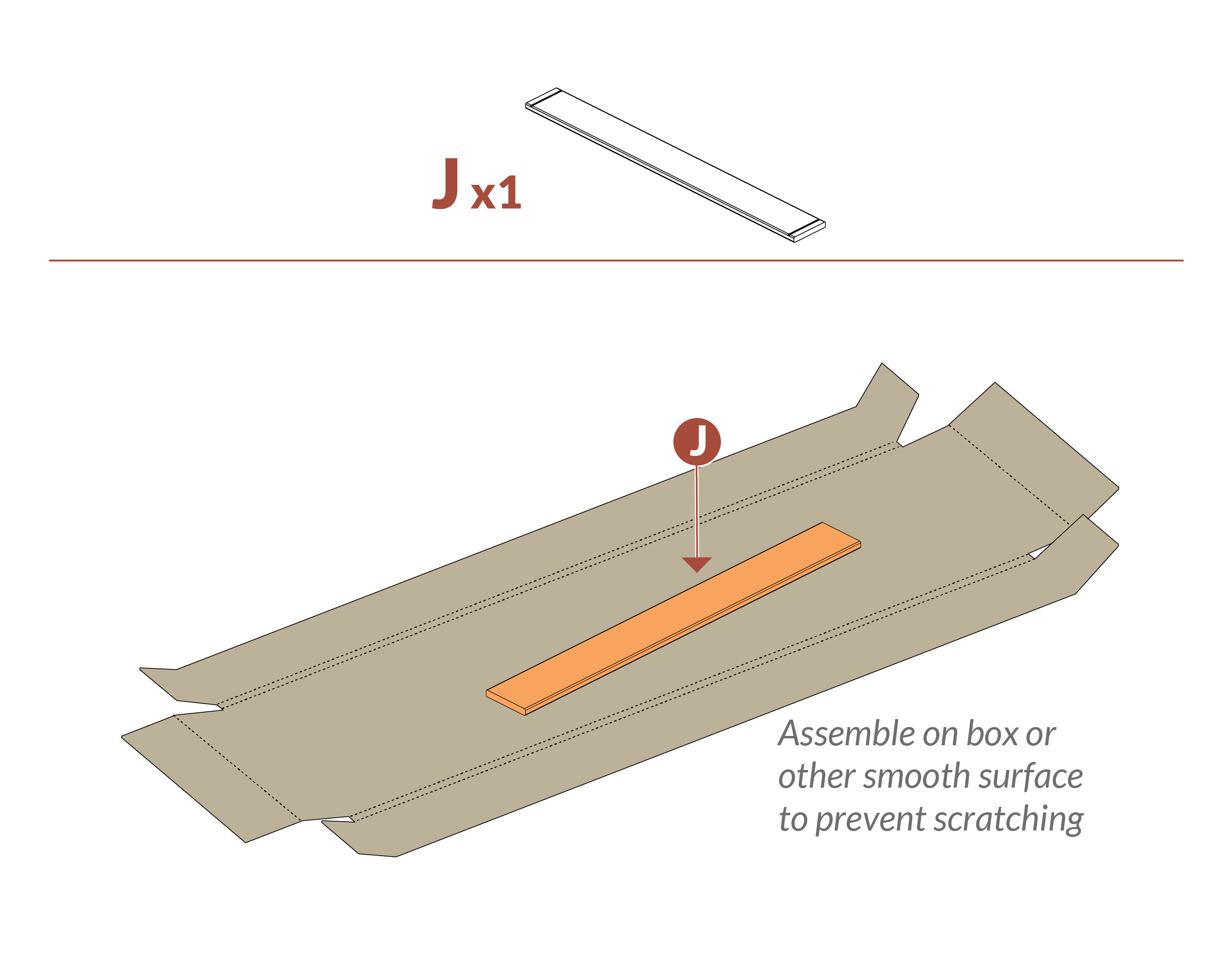

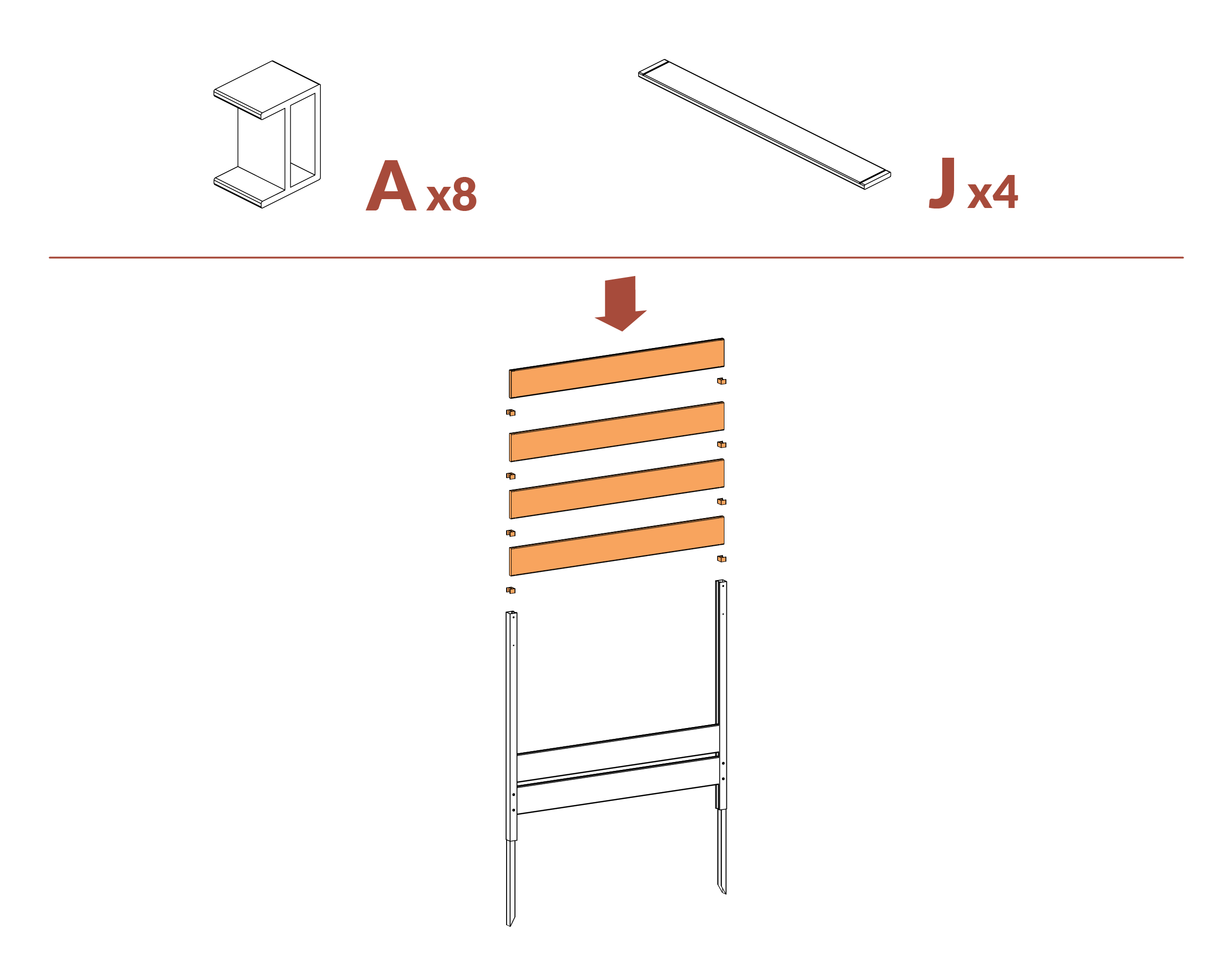

• Assemble on a box or smooth surface to prevent scratching.

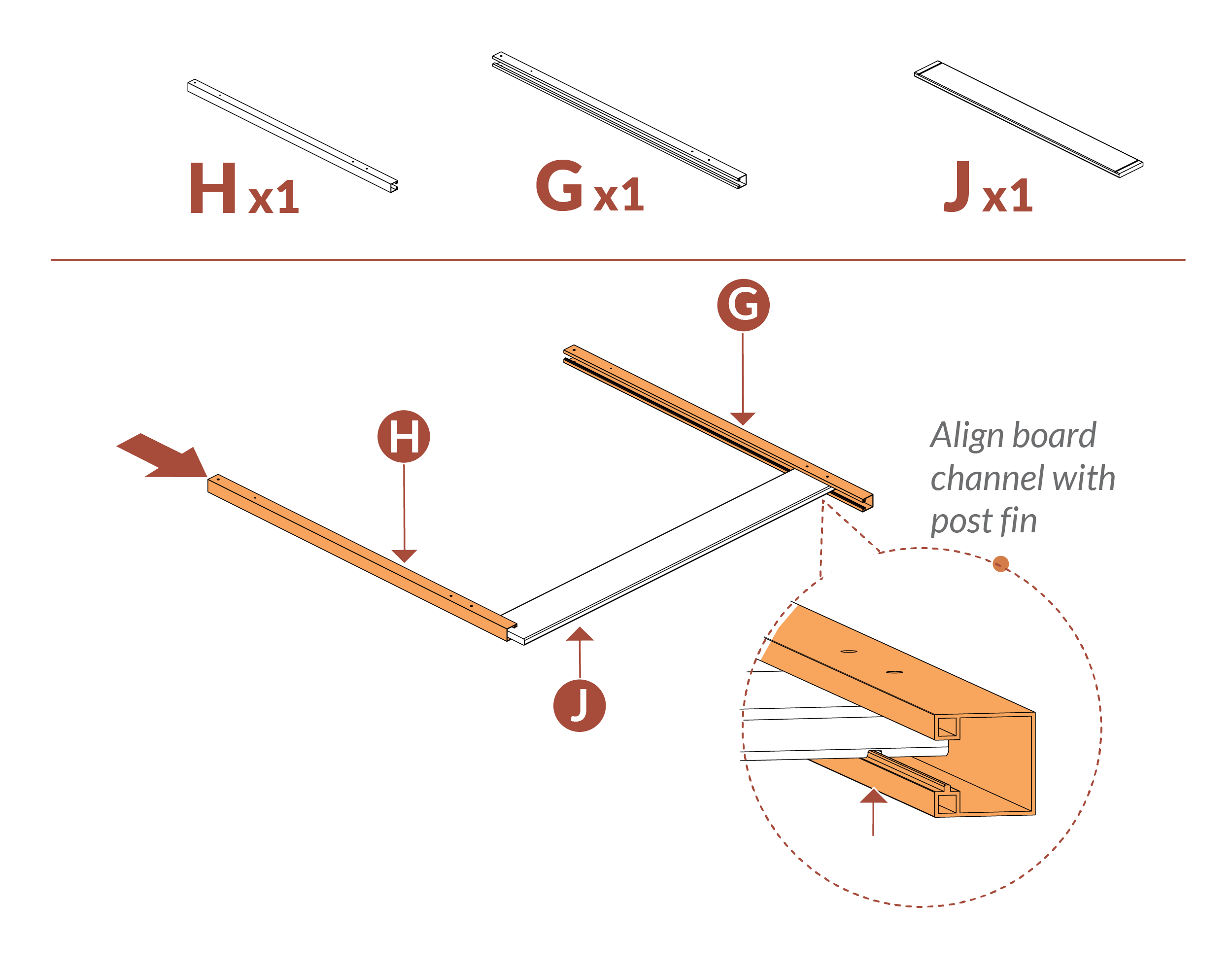

• Align board channel with post fin

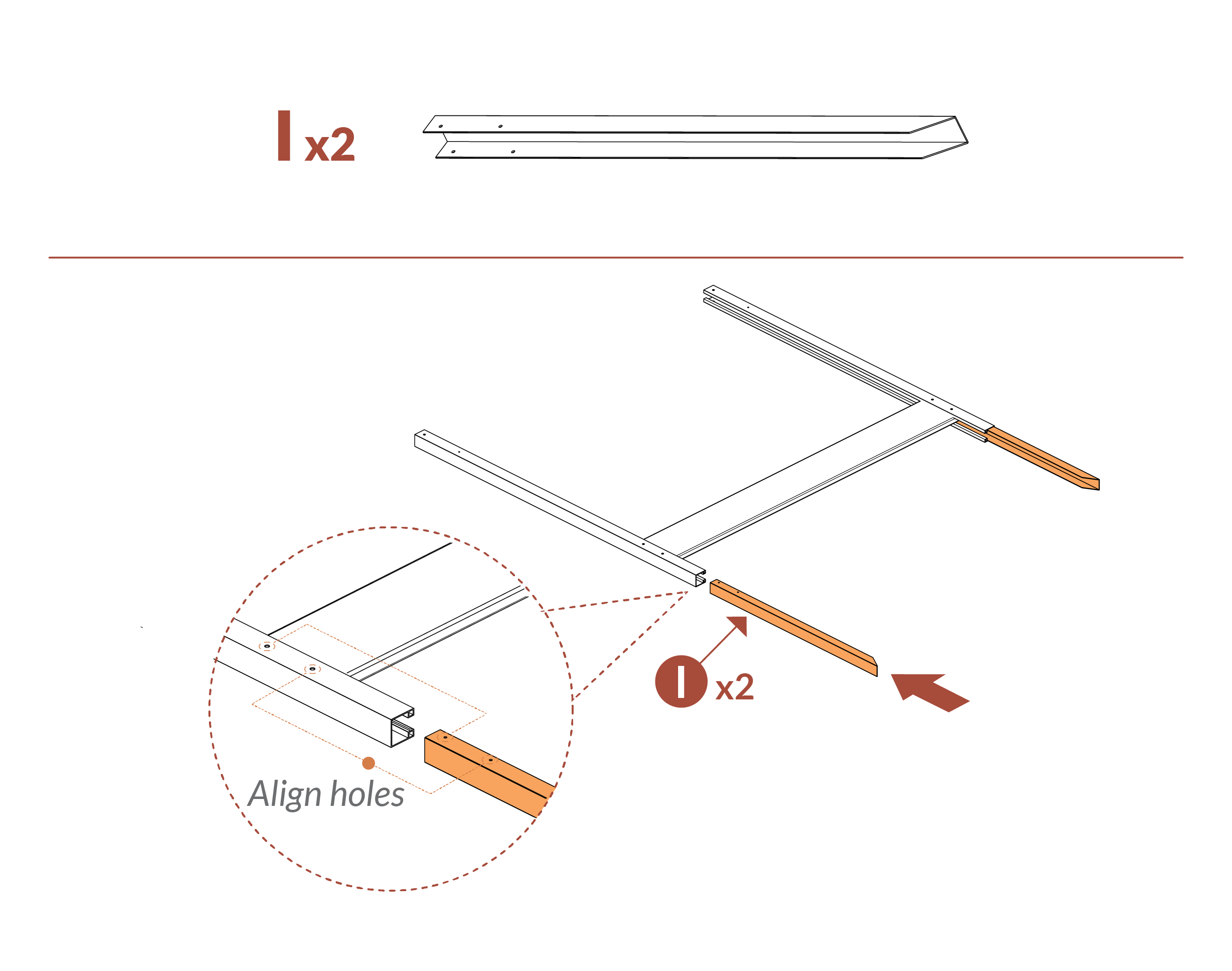

• Align holes

• Note: If you cannot find ground stakes, check inside posts

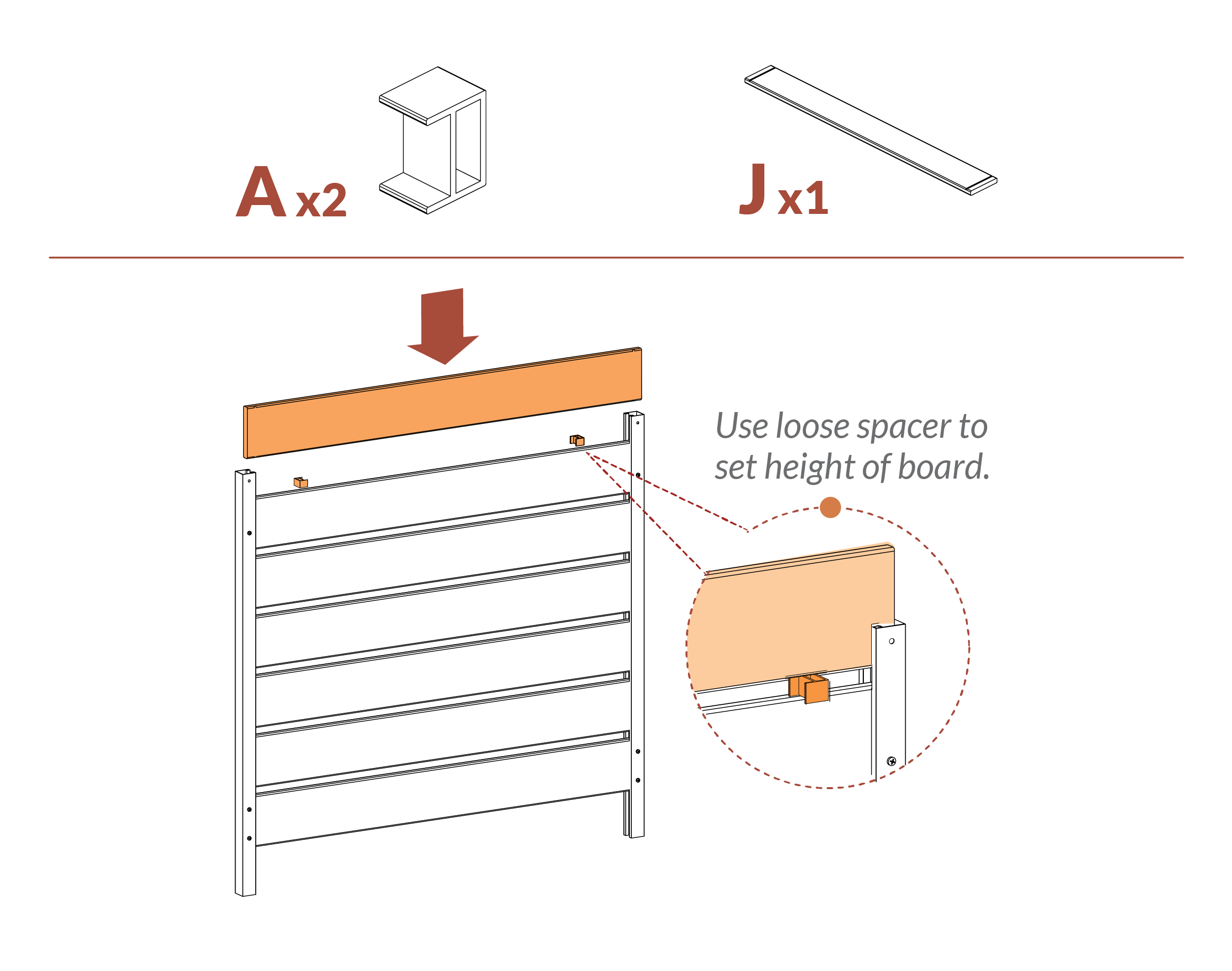

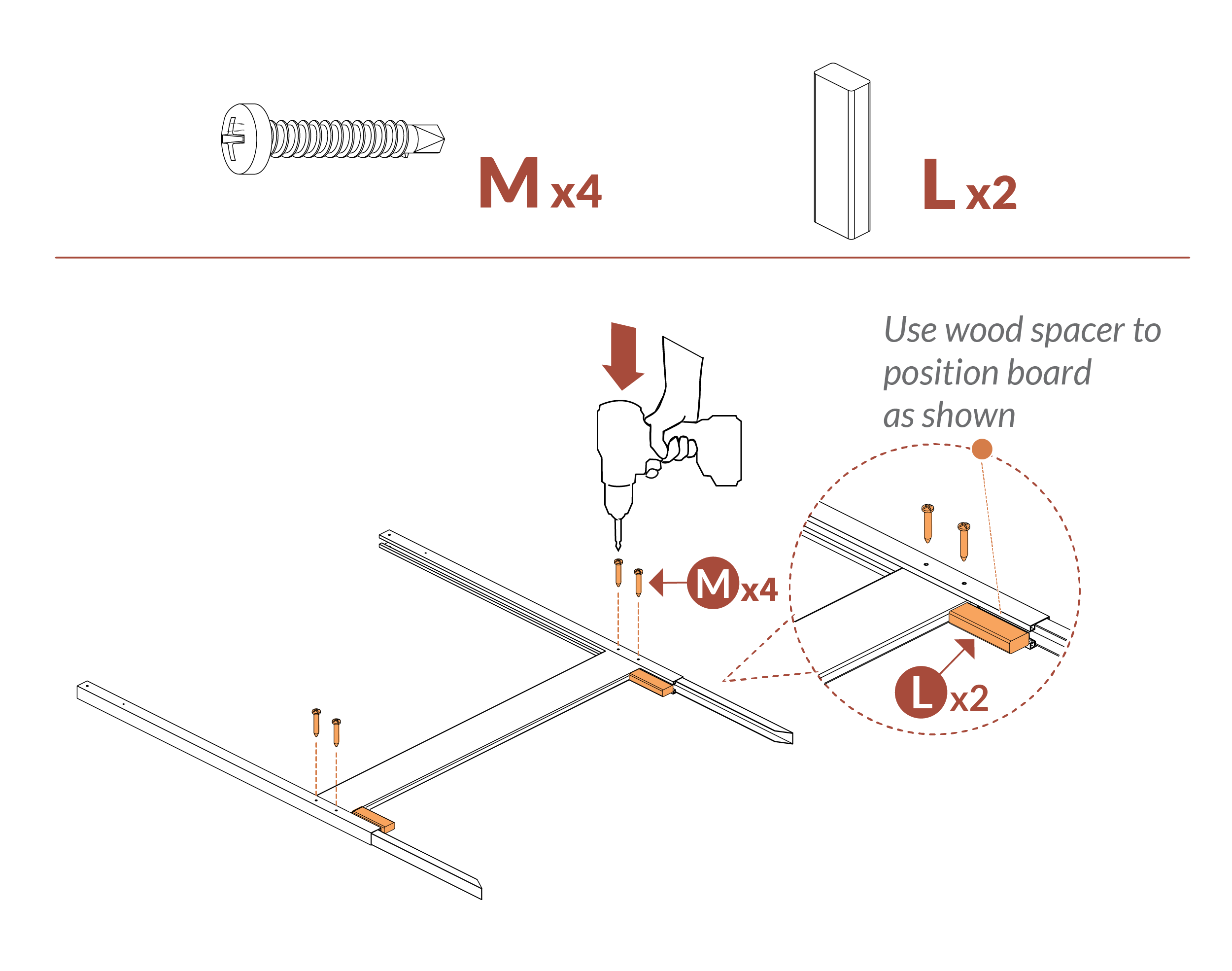

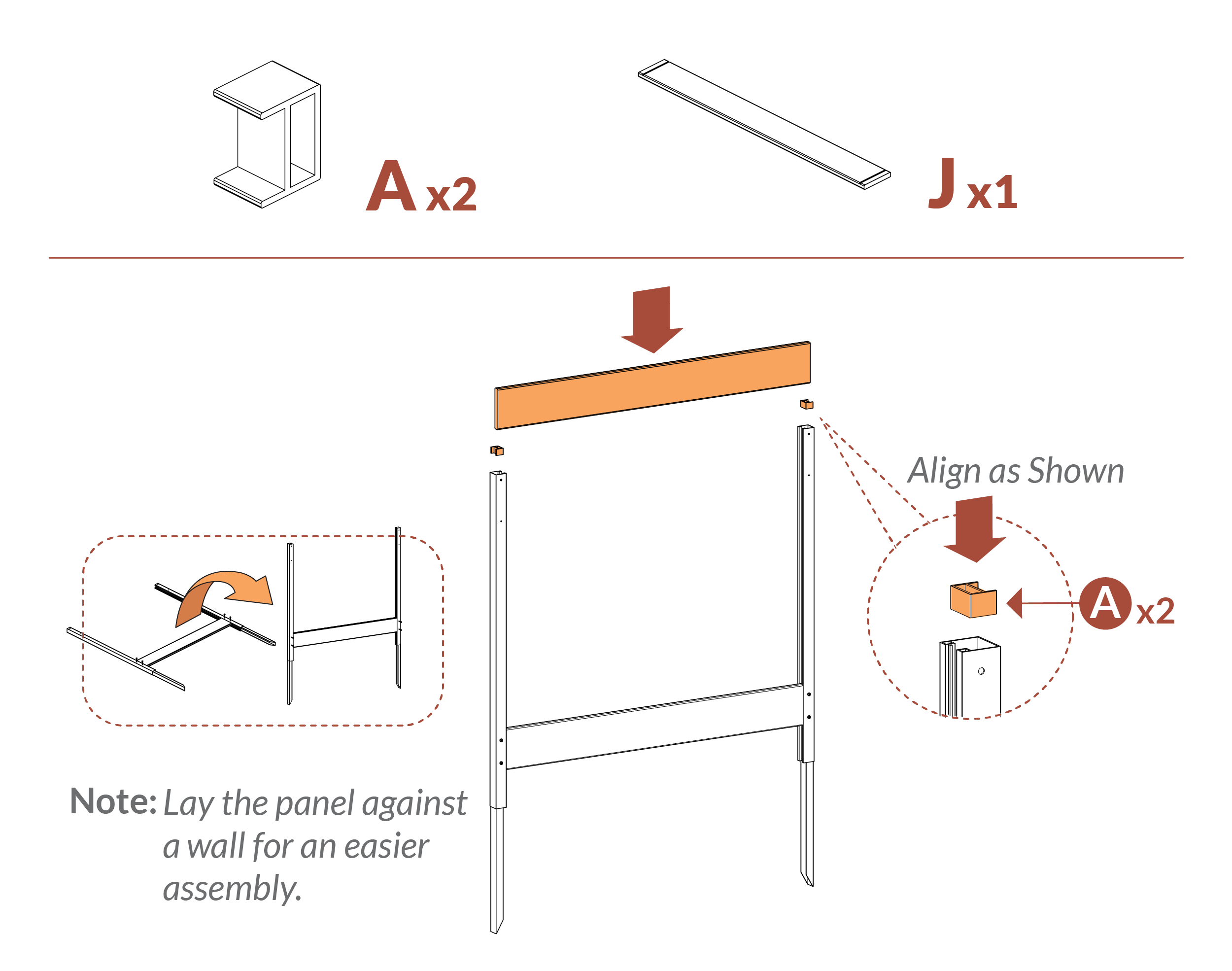

• Use Wood Spacers (L) to position the board as shown

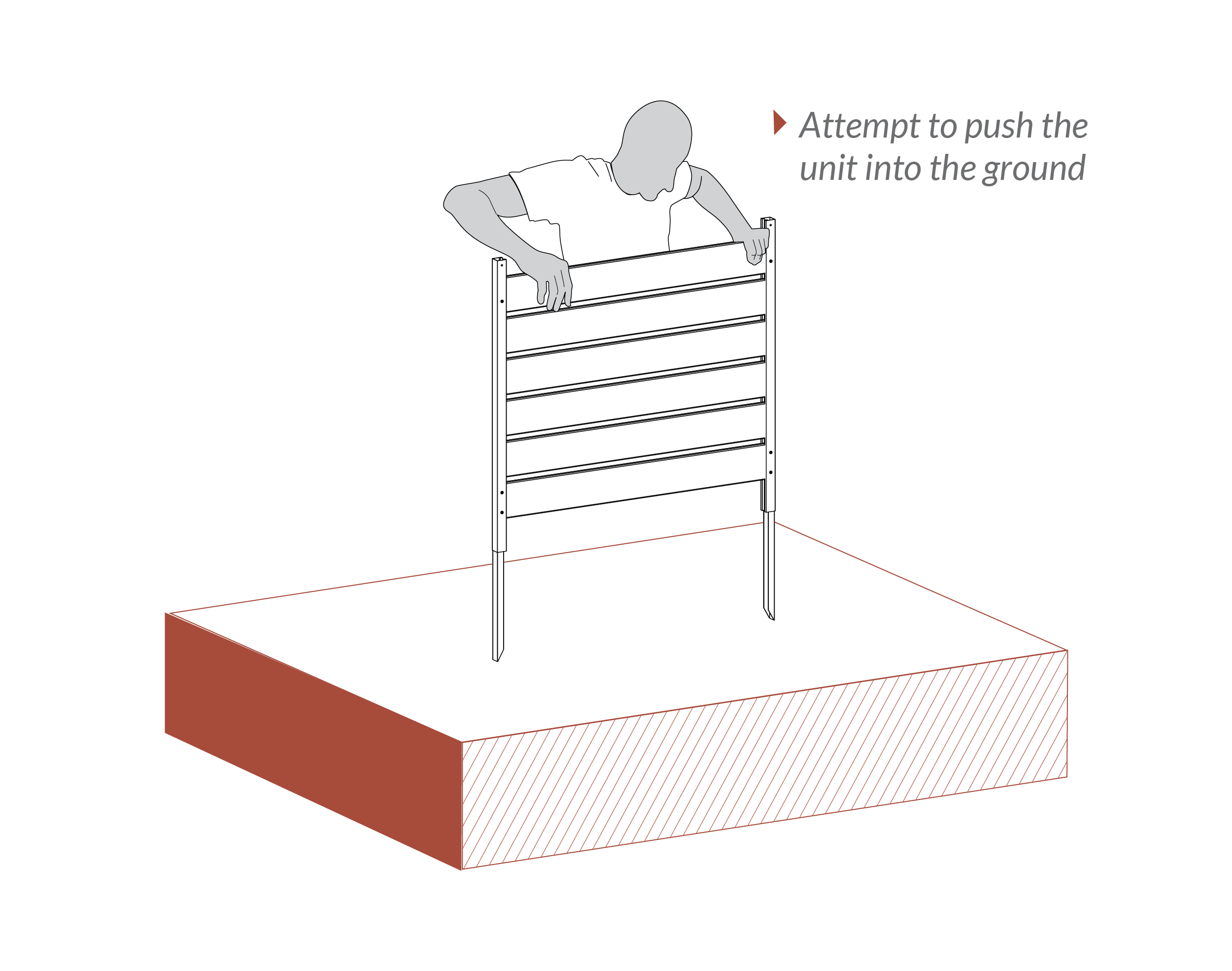

• Lay panel against a wall for an easier assembly.

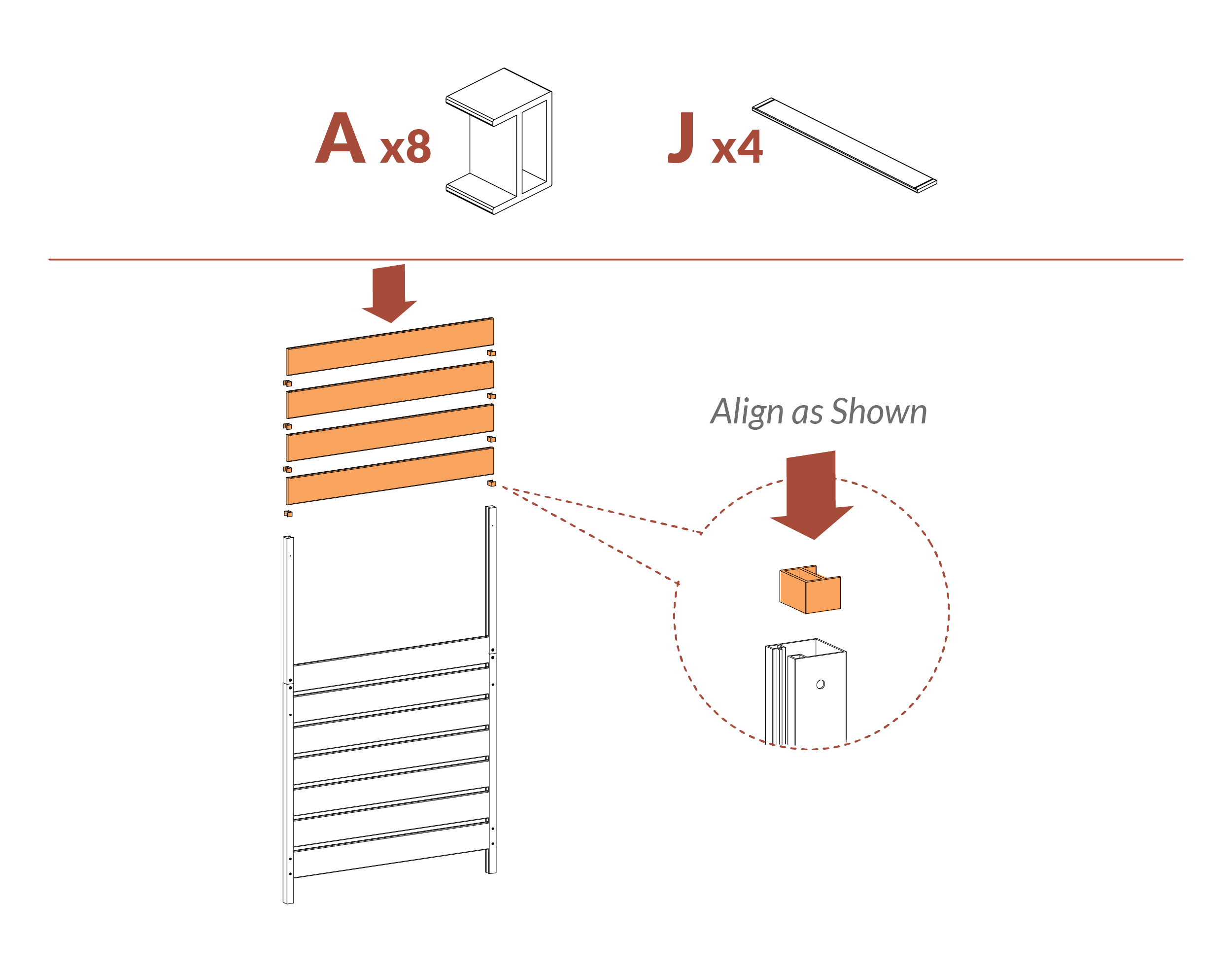

• Align as shown.

• If ground is too had, see next steps.

• All 13½" of the ground stakes should be inserted so they are no longer visible.
• Use Wood Block (K) to avoid striking the post directly.
• Install any additional panels before moving to the next step.

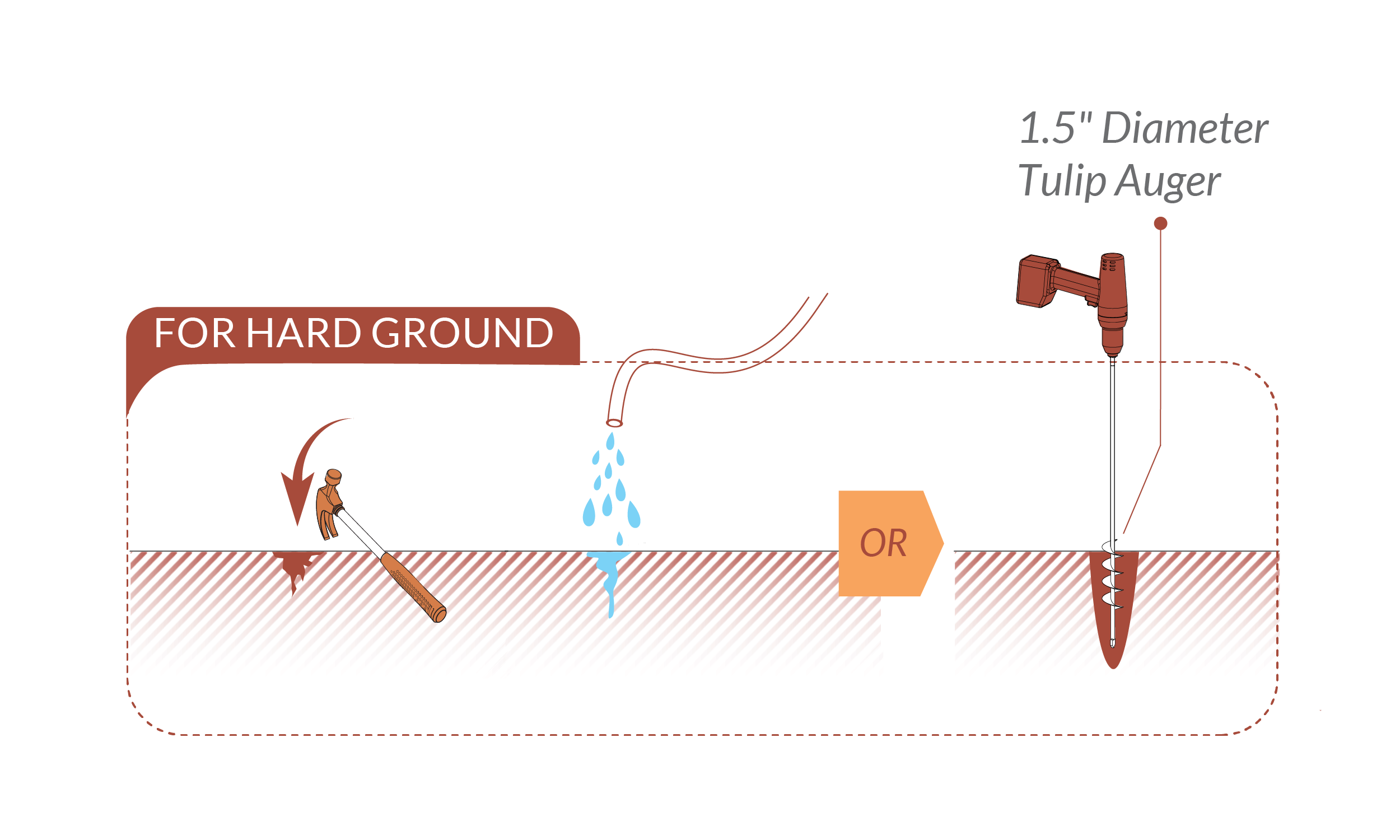

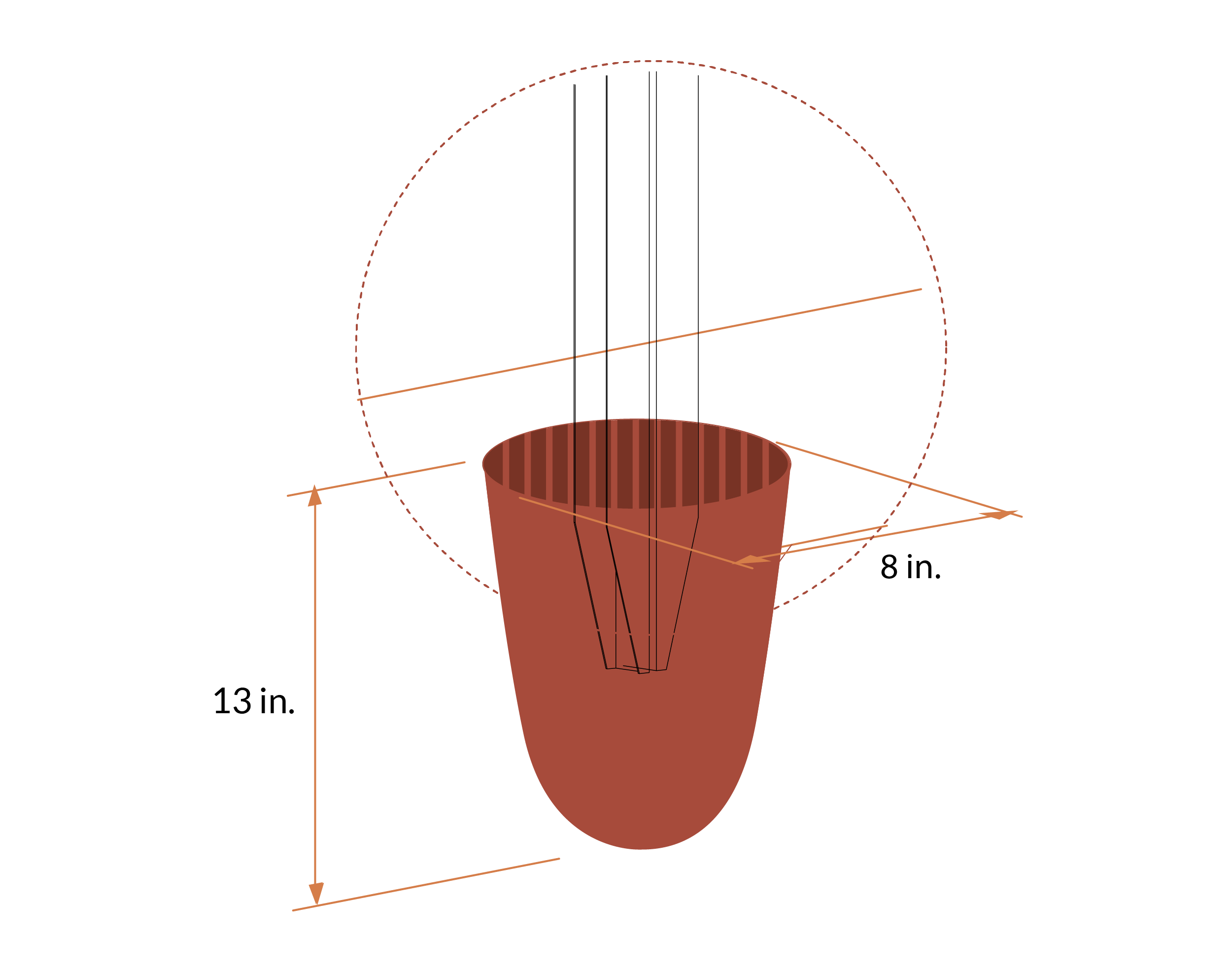

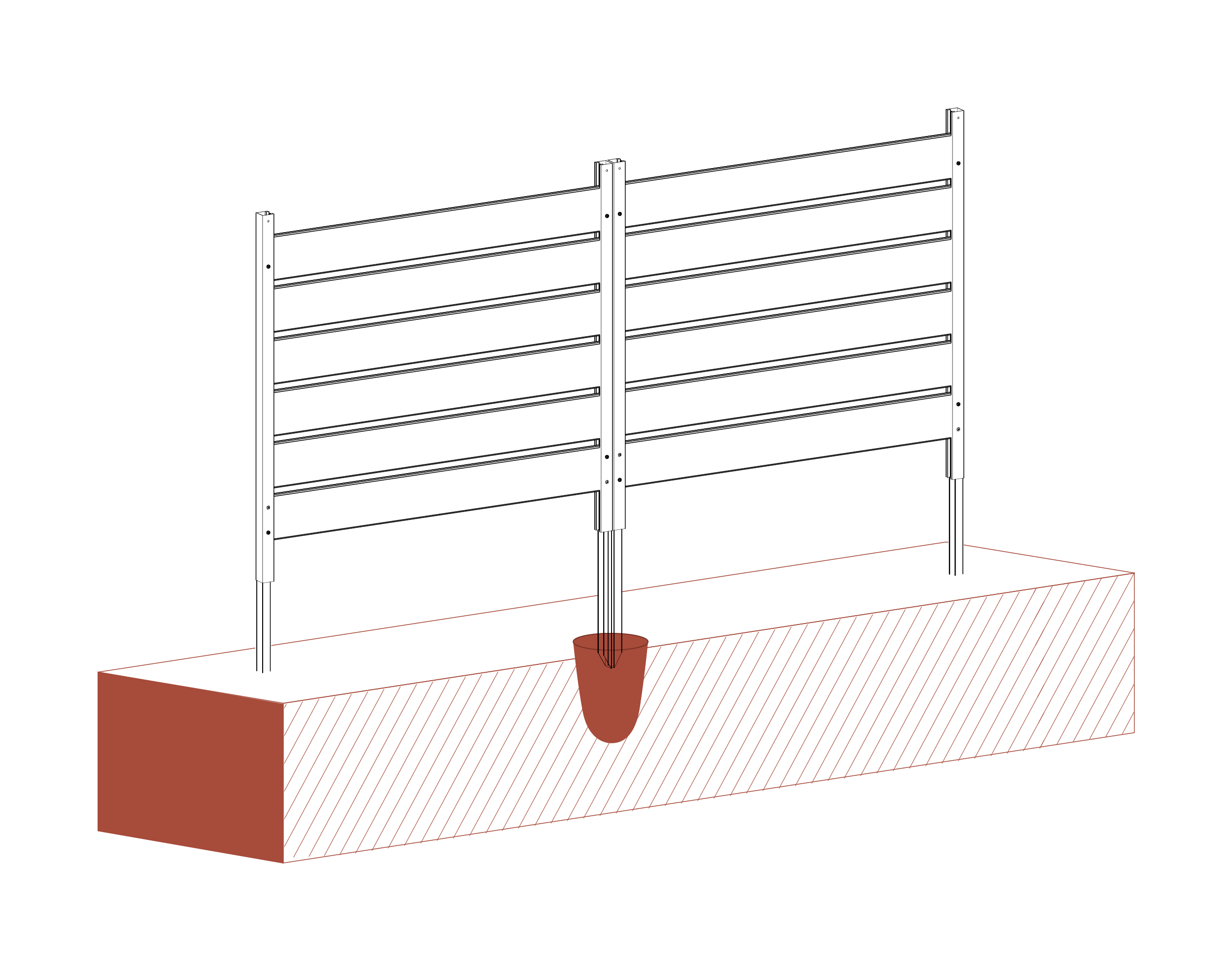

• If your ground is hard, either water the ground to soften it and loosen with a claw hammer, or use a tulip auger to drill holes into the ground.

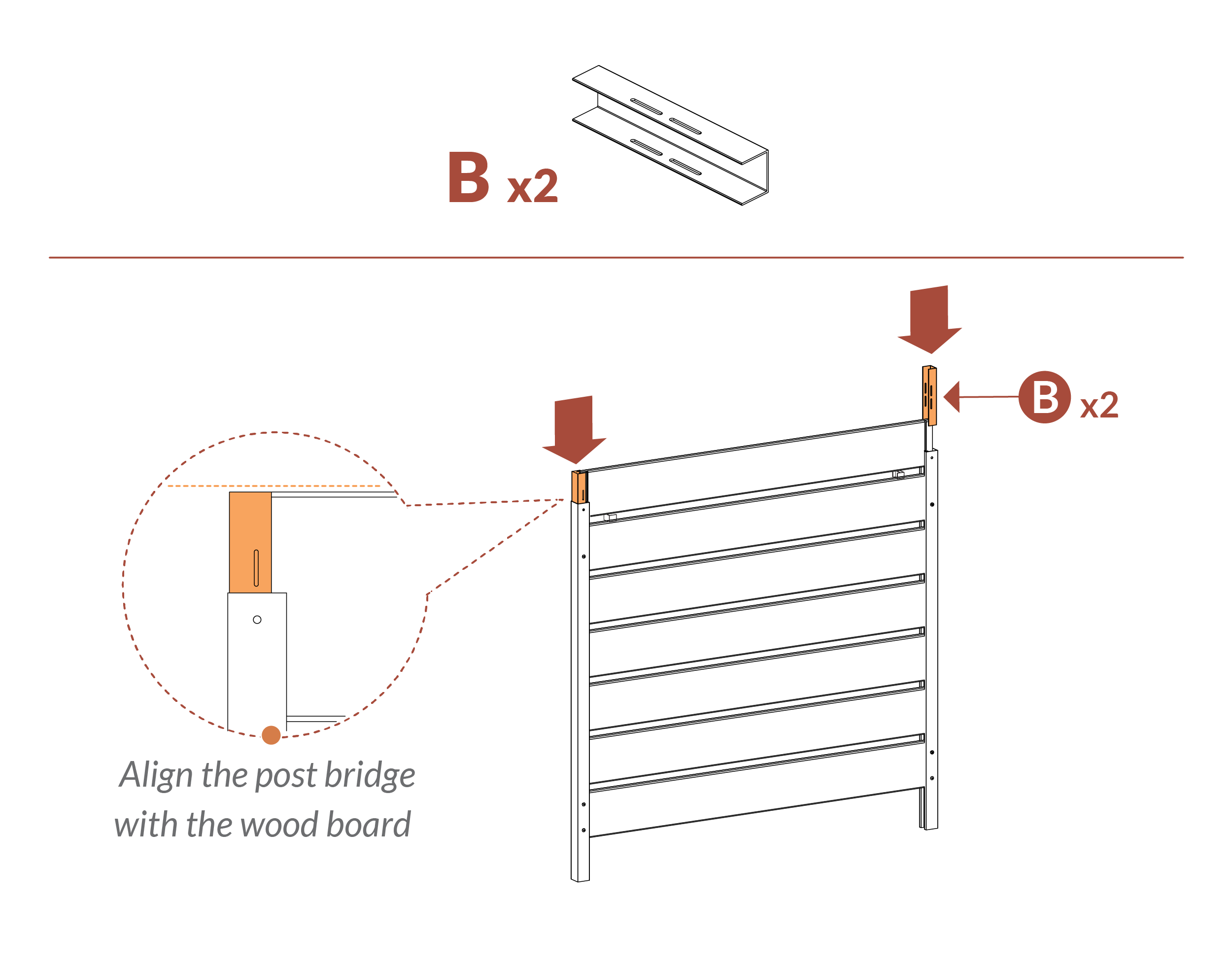

• Align the Post Bridges (B) with the wood board

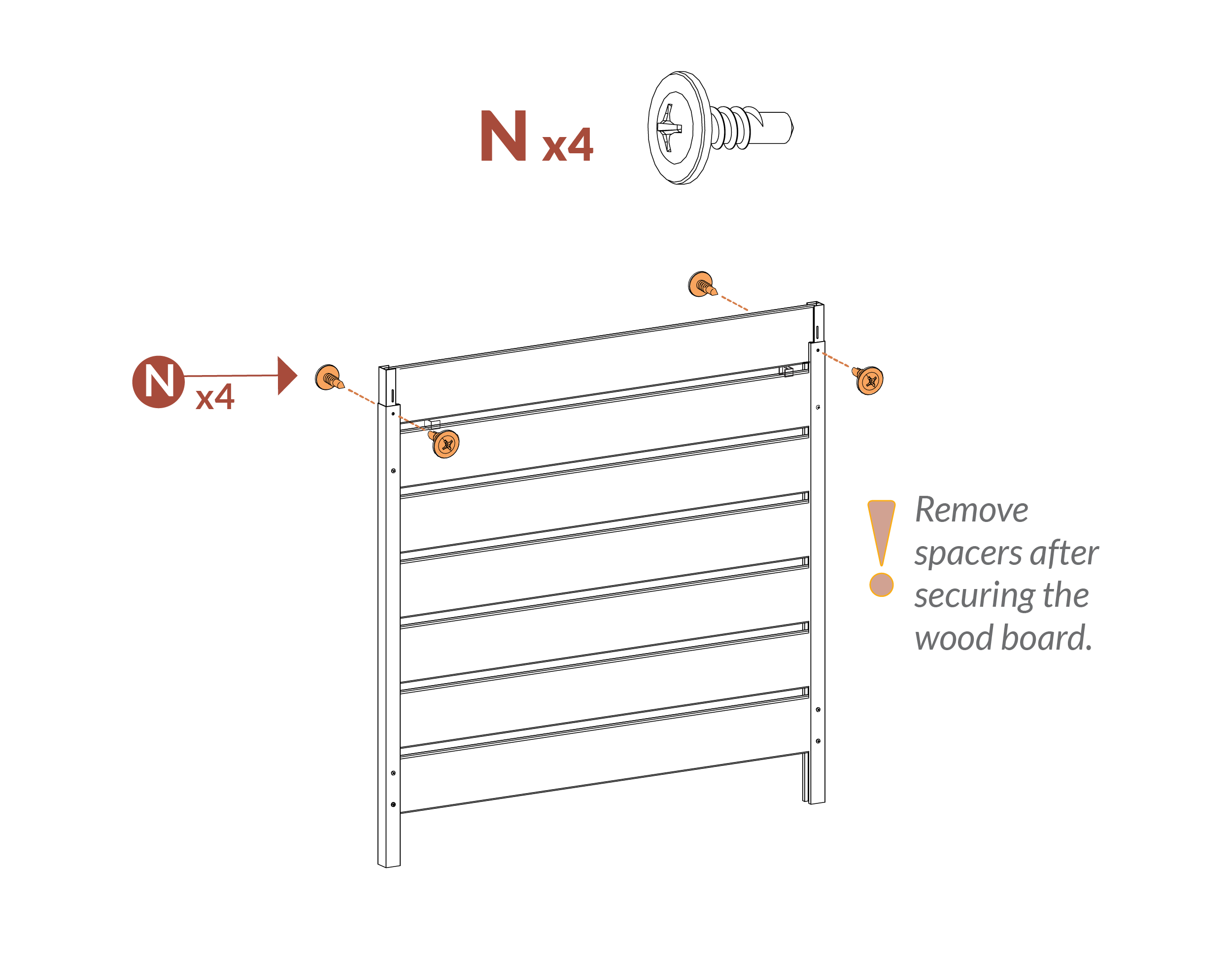

• Remove spacers once the board is secured.

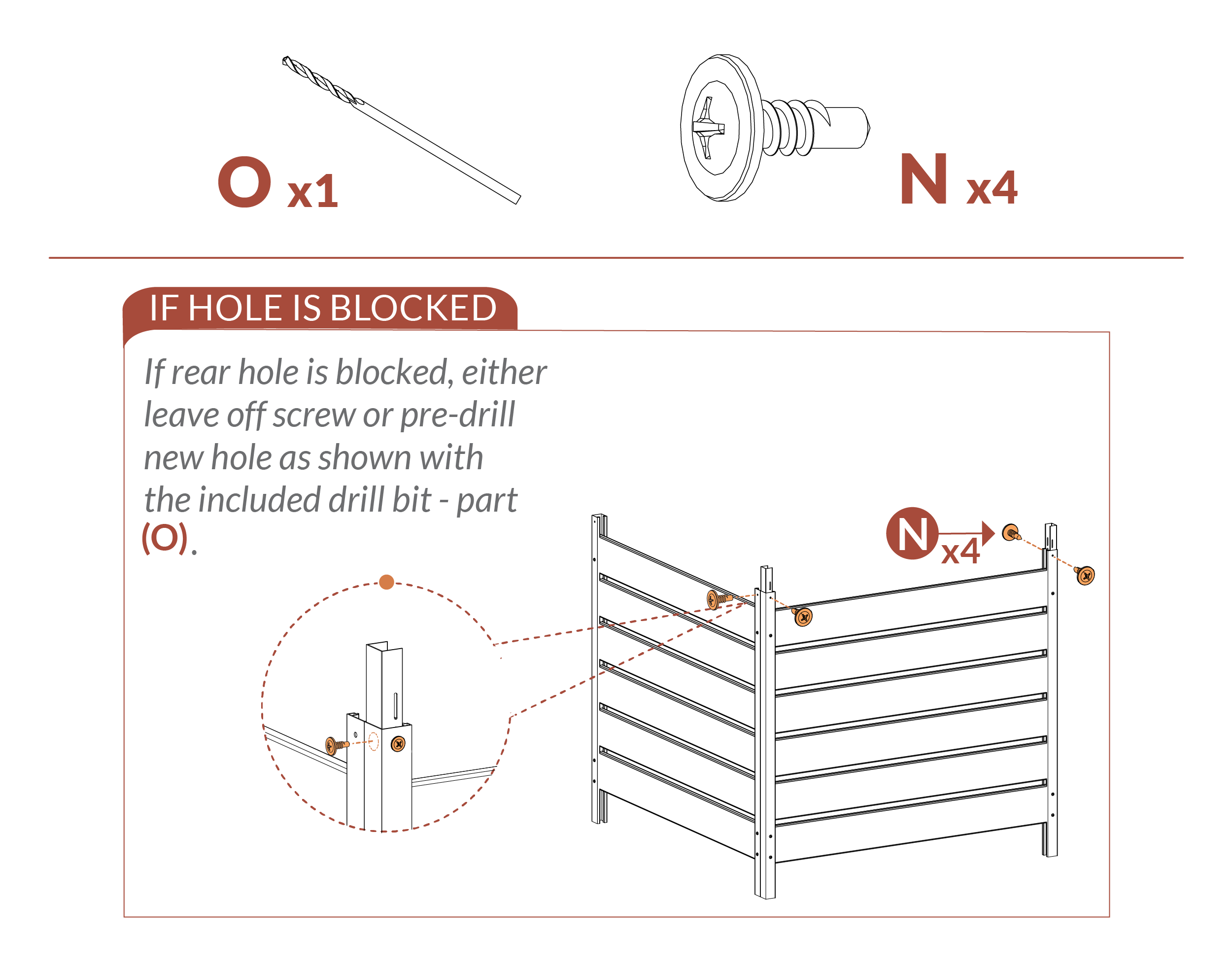

• If rear hole is blocked, either leave off screw or pre-drill new hole as shown with the included Drill Bit (O)
