Bessemer WoodTek Vinyl Privacy Screen Kit (2 Panels)
EC18027 Bessemer Privacy Screen

General Information

Important Safety Notes:

  • Check the inside of the larger pieces in your box for other materials packed inside.
  • When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
  • We recommend an area approximately 5' x 8' for unobstructed assembling.
  • You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

  • Have reference item number EC18027
  • Provide the specific part name
  • Include the batch lot number found on the end of the box

Product Specifications & Dimensions

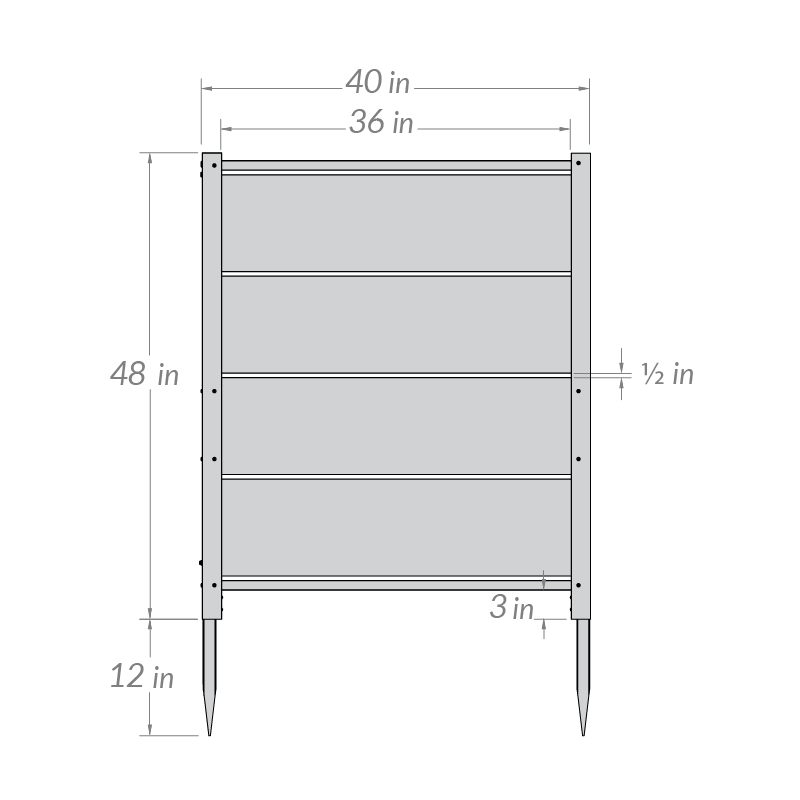

EC18027 Dimensions

Step 1: Part Identification

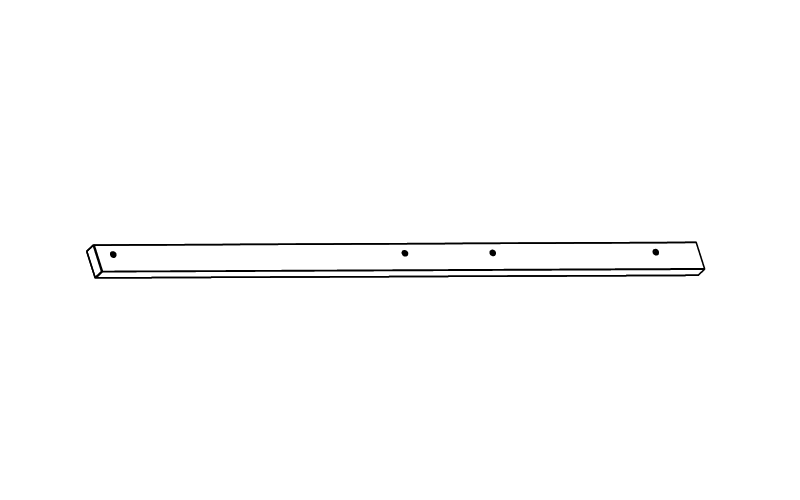

A — Left Post (2)

Part A ⅞" x 2" x 48"

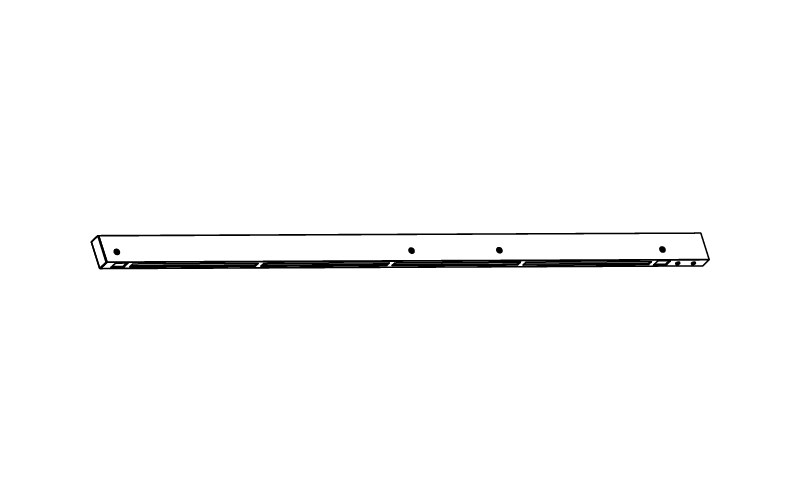

B — Right Post (2)

Part B ⅞" x 2" x 48"

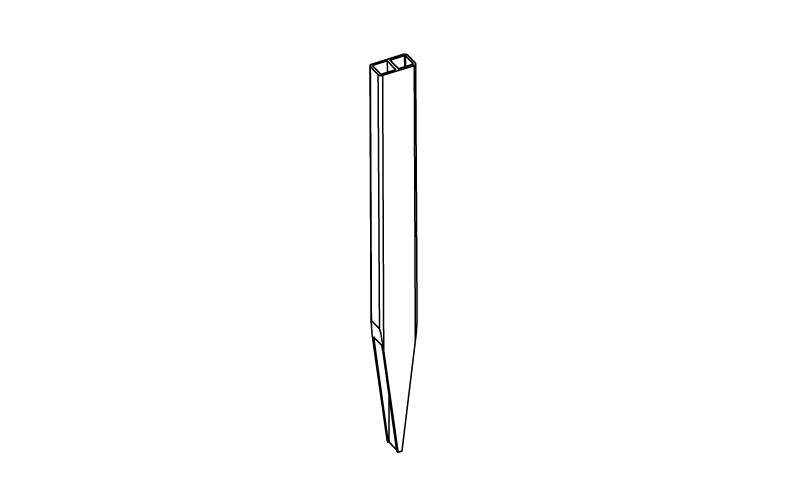

C — Post Anchor (4)

Part C ¾" x 1¼" x 15"

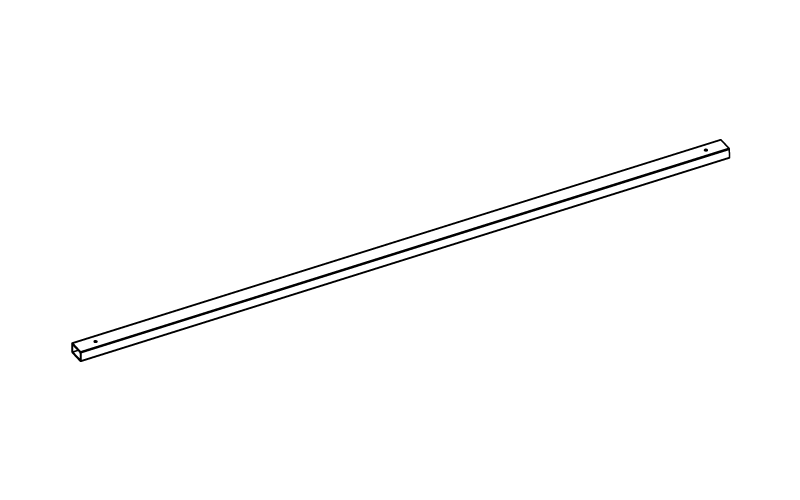

D — Rail (4)

Part D ⅝" x 1" x 39⅞"

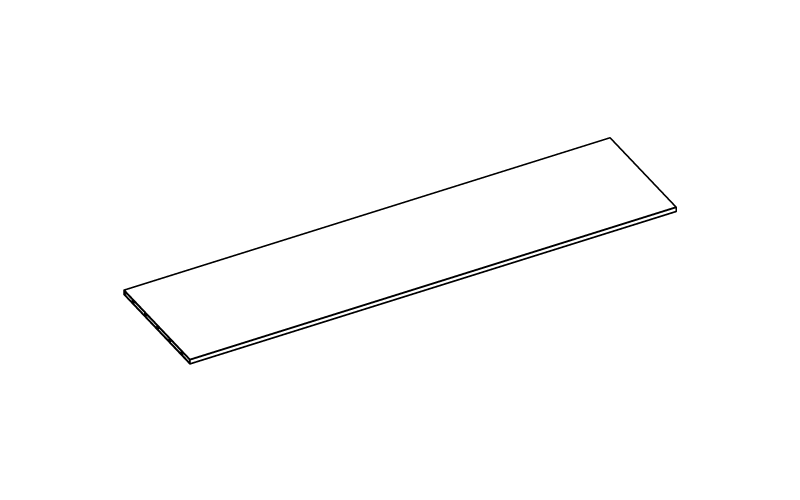

E — Board (8)

Part E ⅜" x 10" x 39⅞"

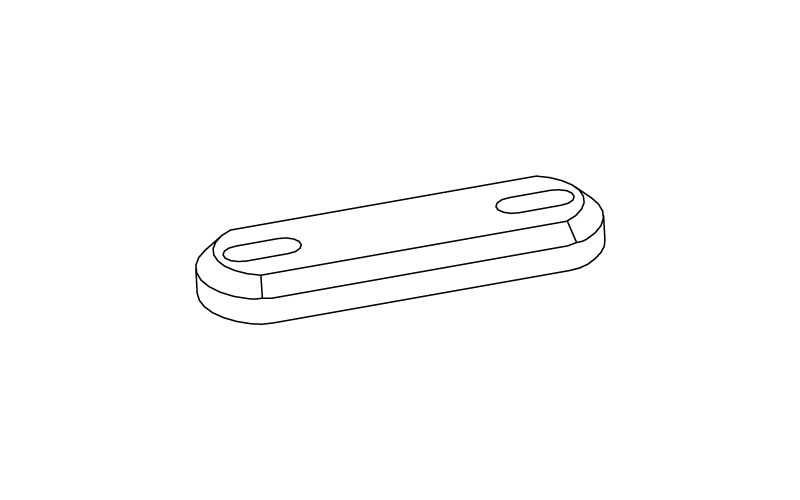

F — Joiner Clip (2)

Part F

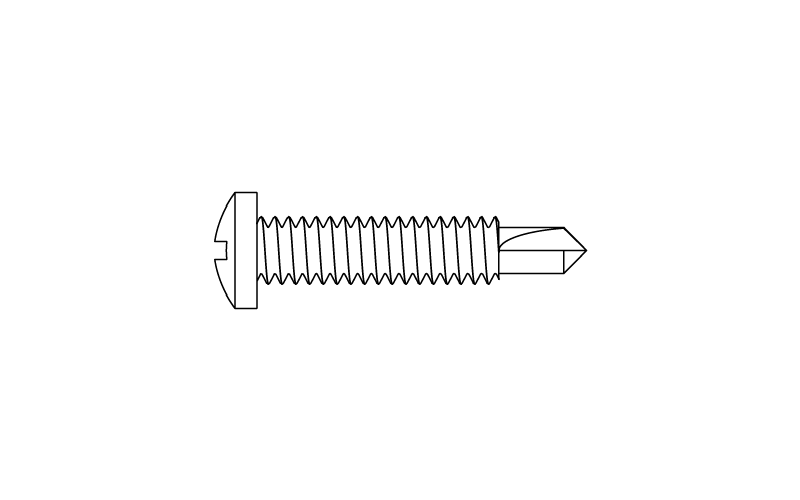

G — ¾" Self-Drilling Stainless Steel Screw (20)

Part G

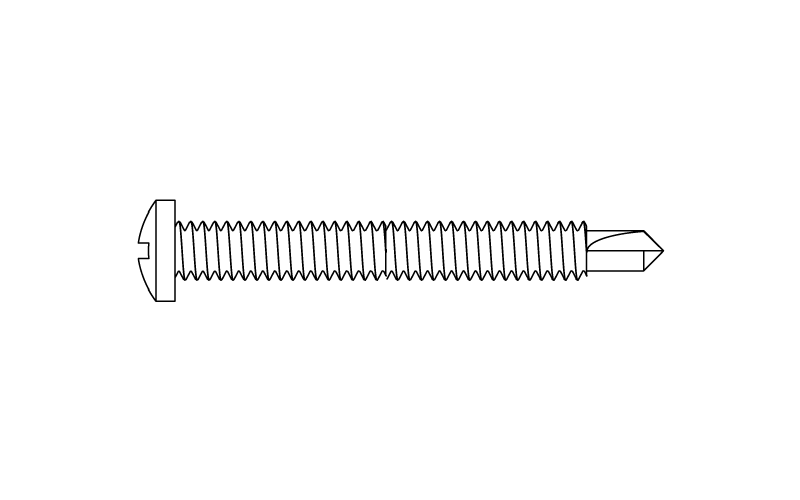

H — 1½" Self-Drilling Stainless Steel Screw (8)

Part H

Note: Check inside of rails for Post Anchors (C) when unboxing.

EC18027 Packaging Detail

Step 2

B × 1 Part B

D × 1 Part D

Step 1

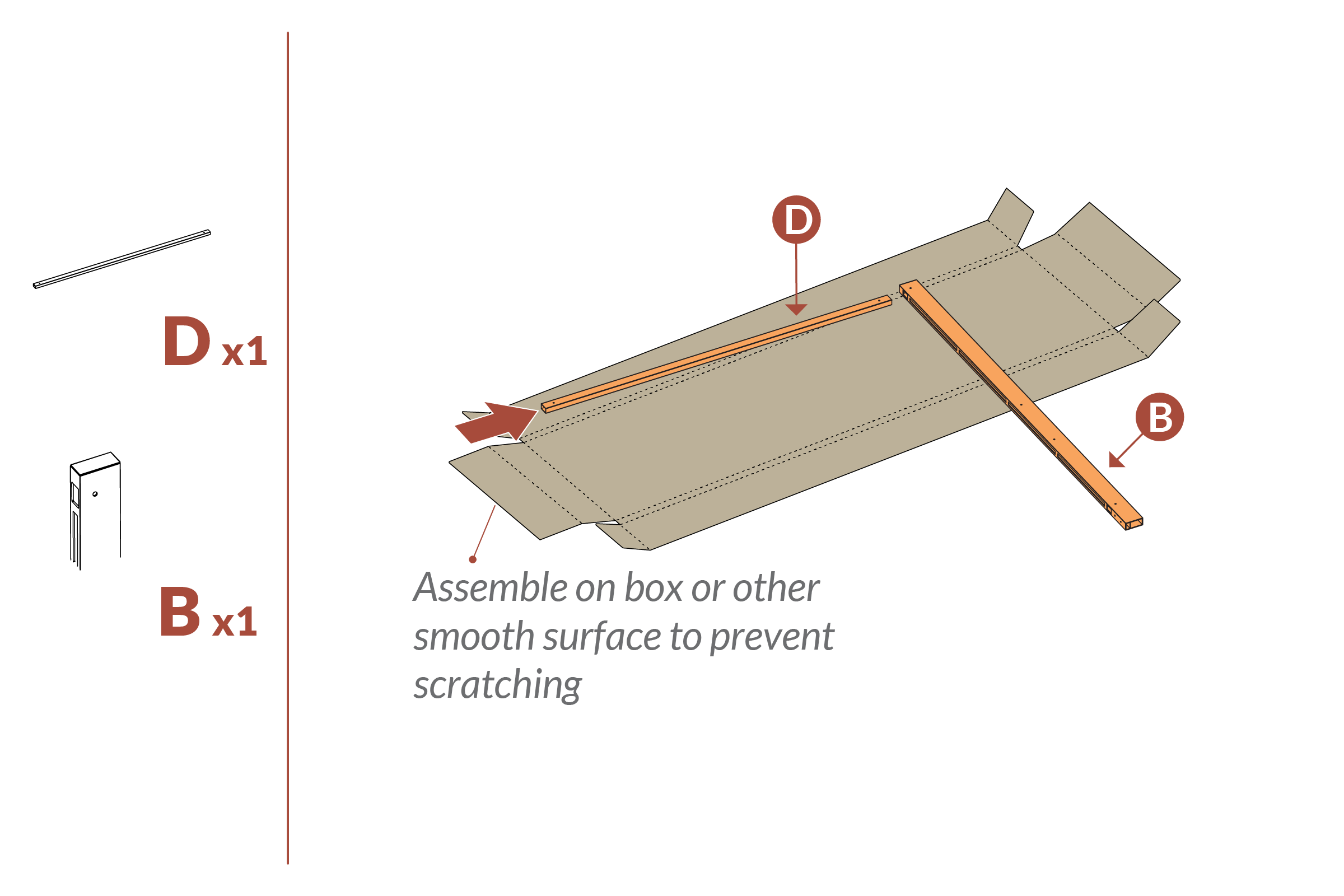

  • Insert (1) Rail (D) into Right Post (B) in the top routed hole.
  • Assemble on a box or other smooth surface to prevent scratching.

Step 3

B × 1 Part B

E × 1 Part E

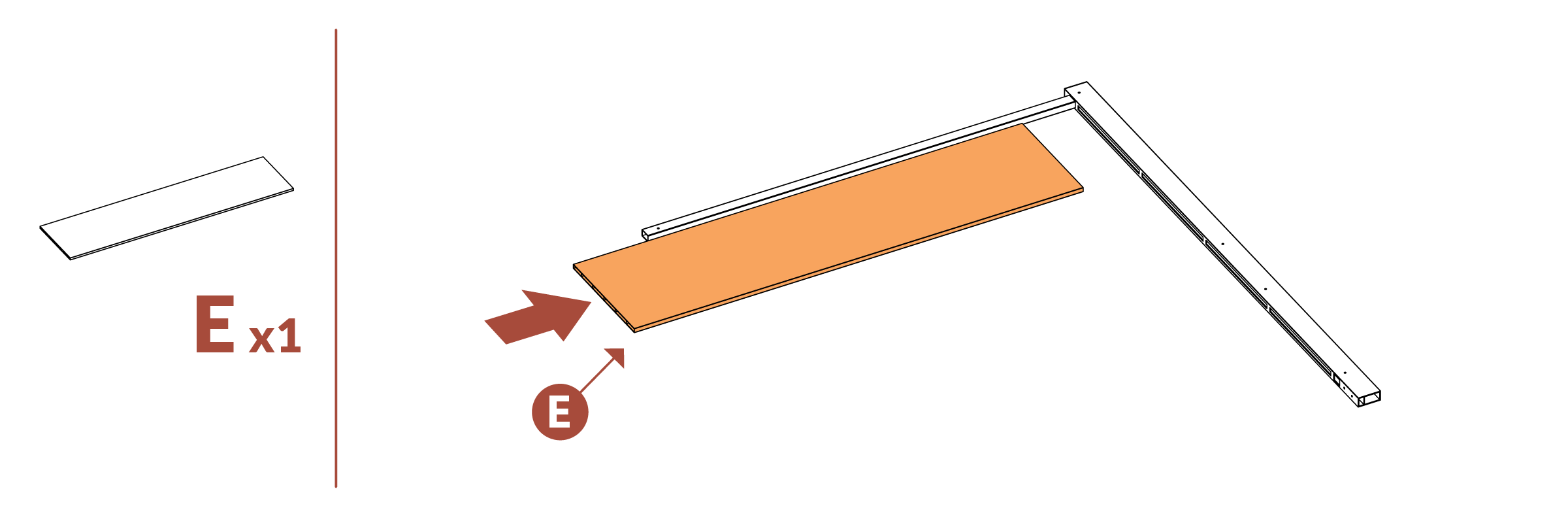

Step 2

  • Insert (1) Board (E) into the Right Post (B) at the top.

Step 4

B × 1 Part B

E × 3 Part E

Step 3

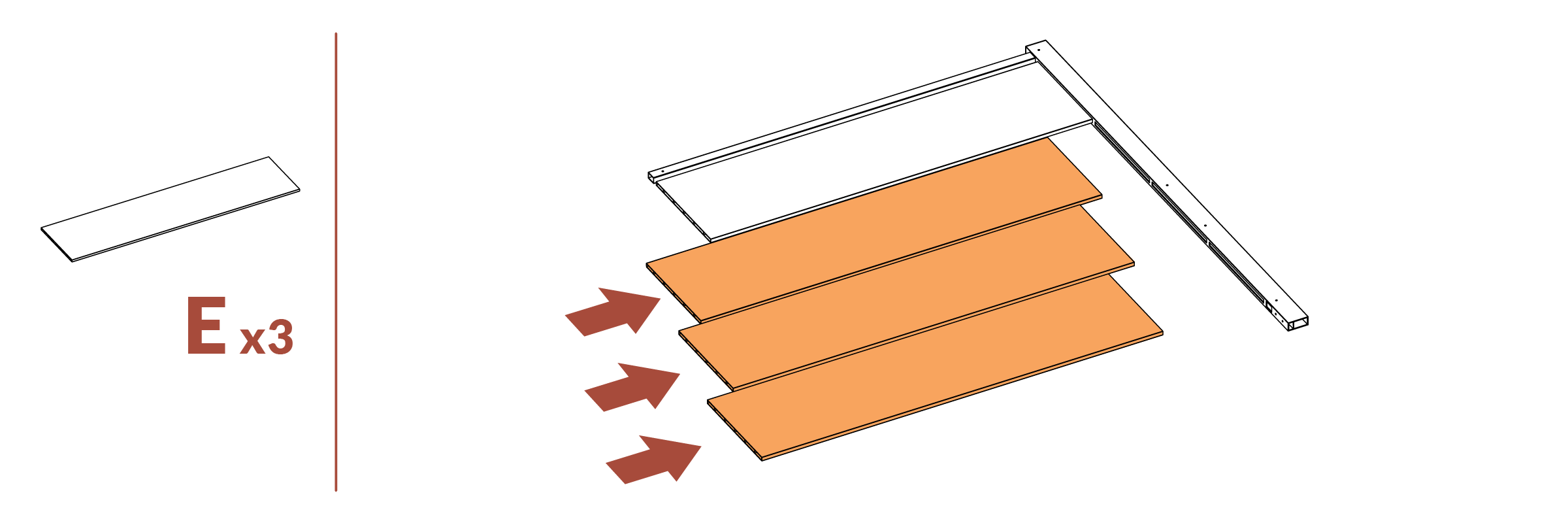

  • Continue inserting the remaining (3) Boards (E) into the other slots on the Right Post (B).

Step 5

B × 1 Part B

D × 1 Part D

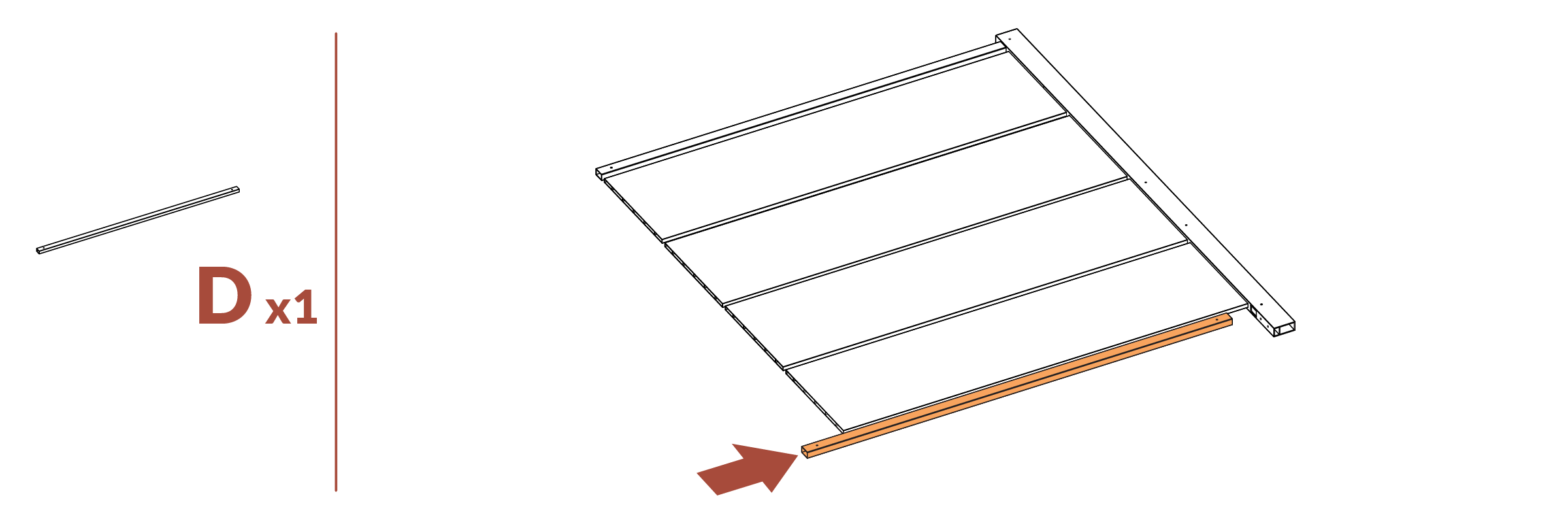

Step 4

  • Insert (1) Rail (D) into the Right Post (B) in the bottom routed hole.

Step 6

A × 1 Part A

Step 5

  • Attach Left Post (A) to the panel.
  • Ensure pre-drilled holes for the left and right post align.
  • For an easier assembly, use a wall as support for the right post.

Step 7

G × 8 Part G

Step 6

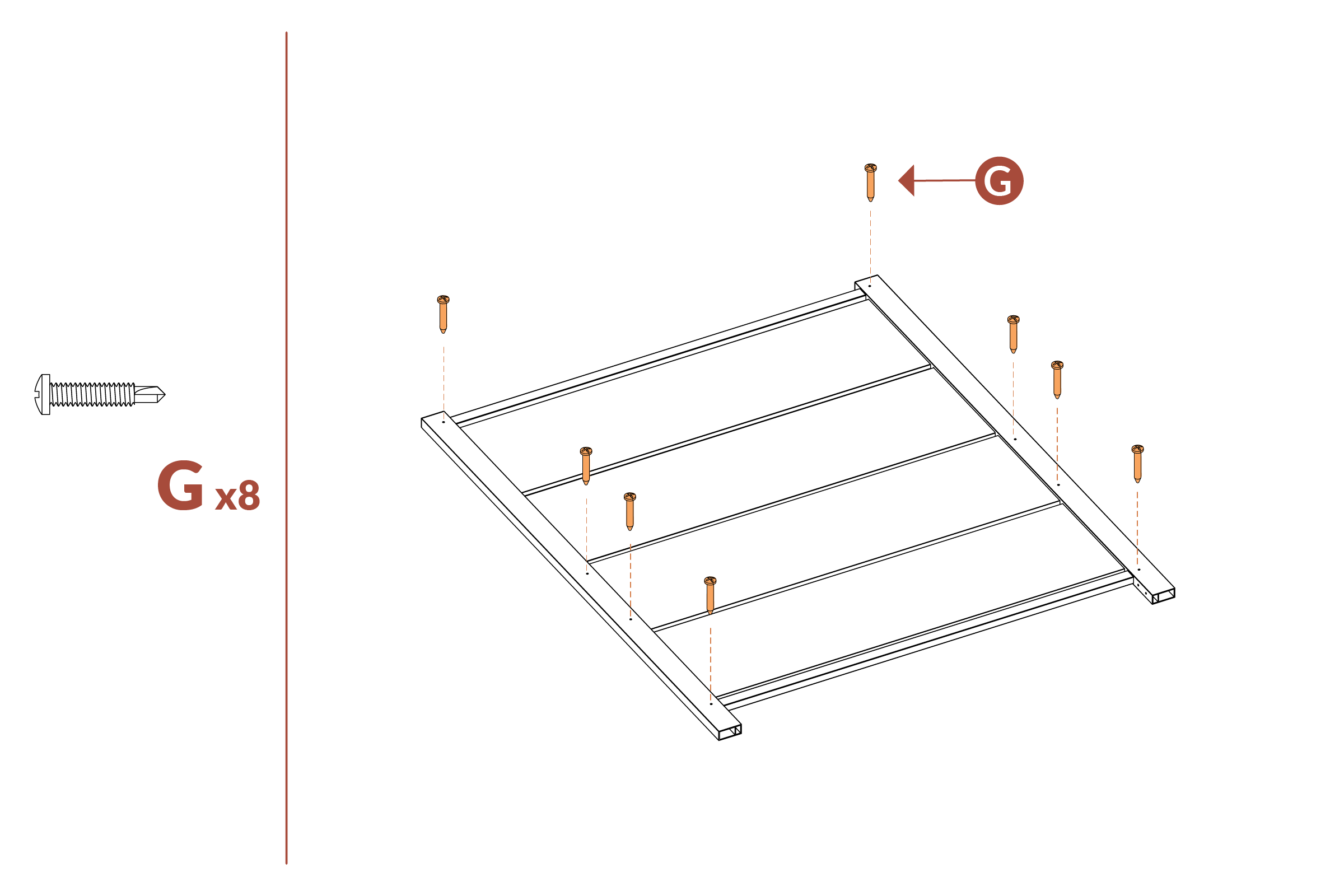

  • Insert (8) ¾" Self-Drilling Stainless Steel Screws (G) into the pre-drilled holes on the posts.

Step 8

C × 2 Part C

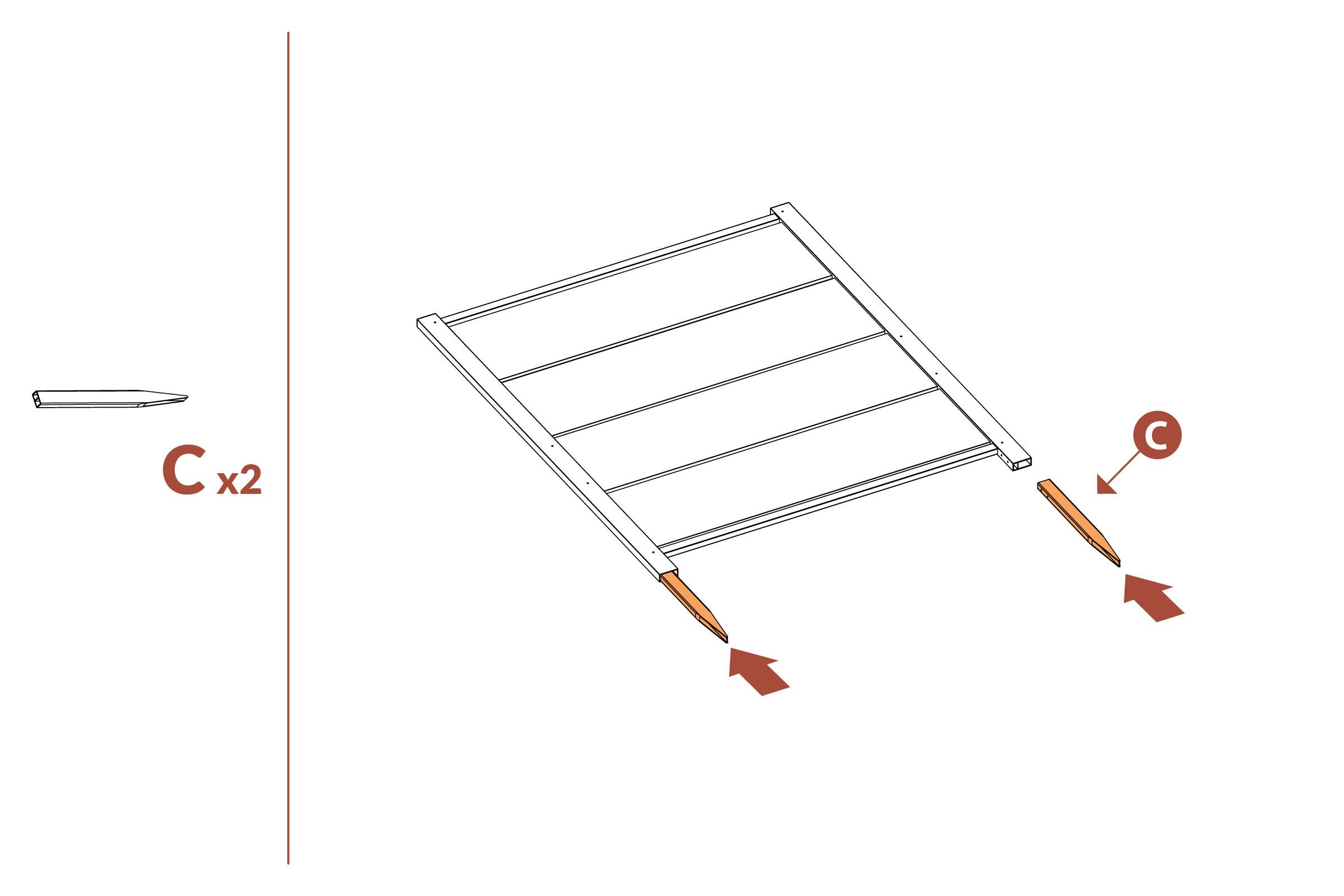

Step 7

  • Insert (2) Post Anchors (C) into the bottoms of the posts.

Step 9

H × 4 Part H

Step 8

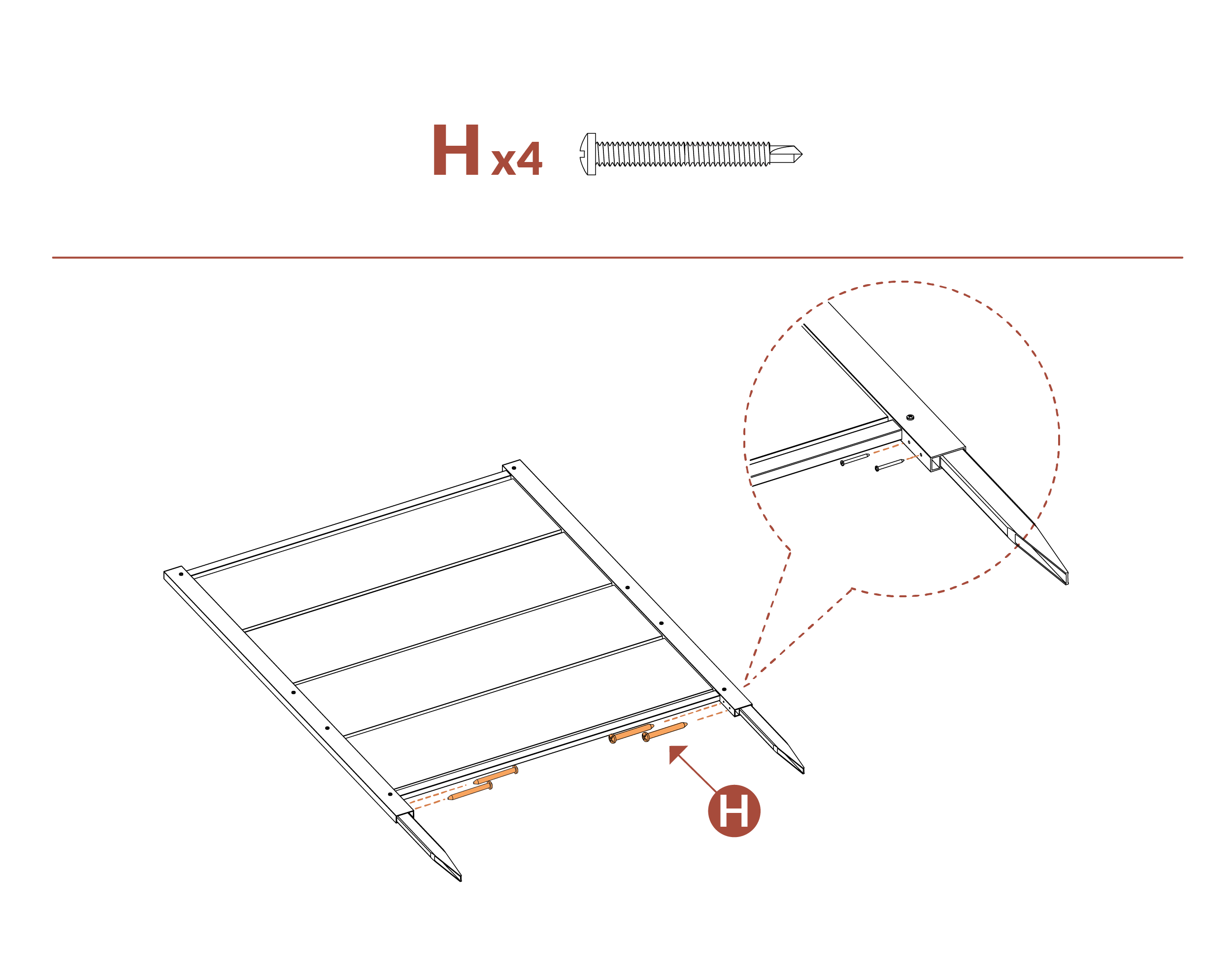

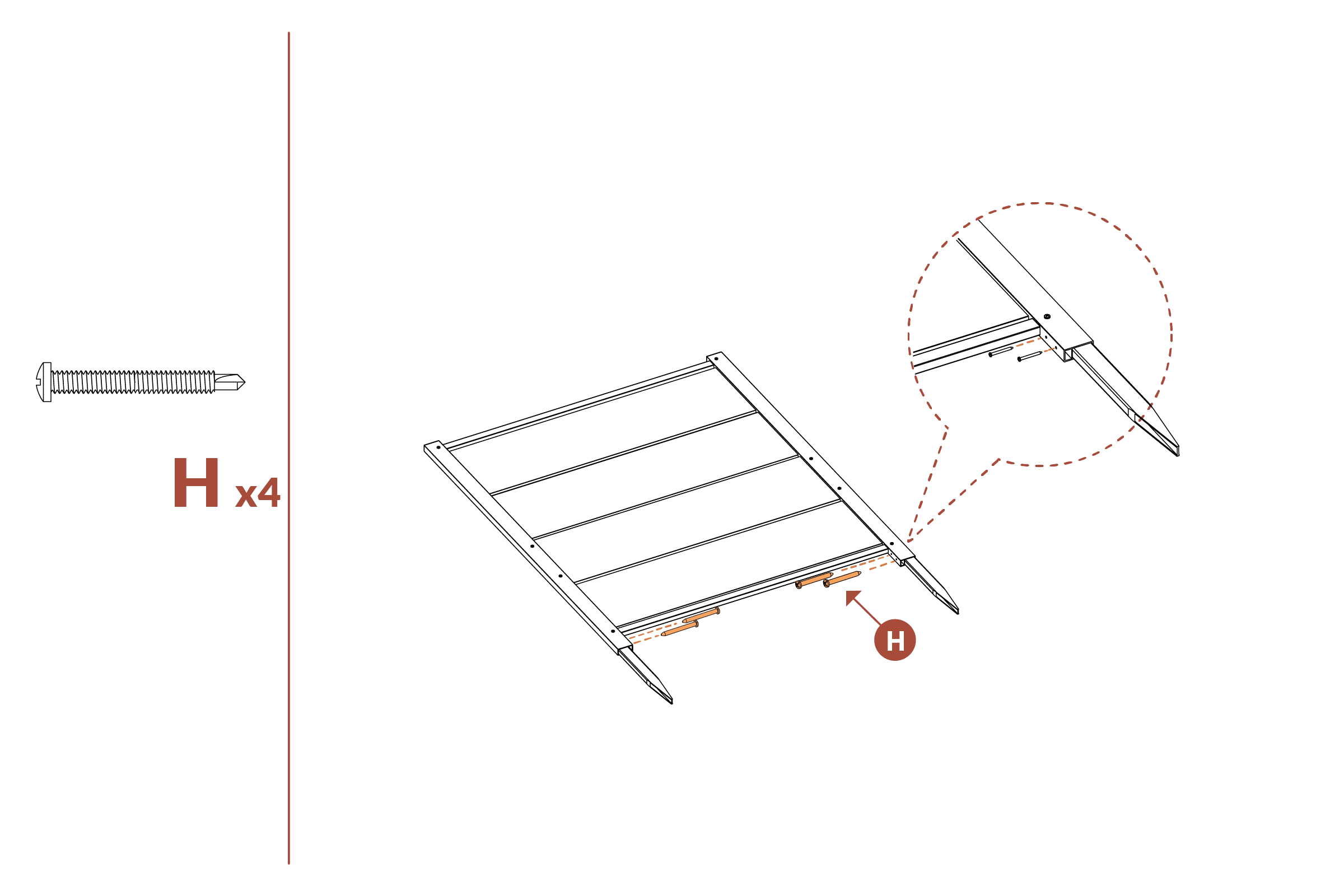

  • Insert (4) 1½" Self-Drilling Stainless Steel Screws (H) into the posts to secure the Post Anchors (C).

Step 10

Step 9

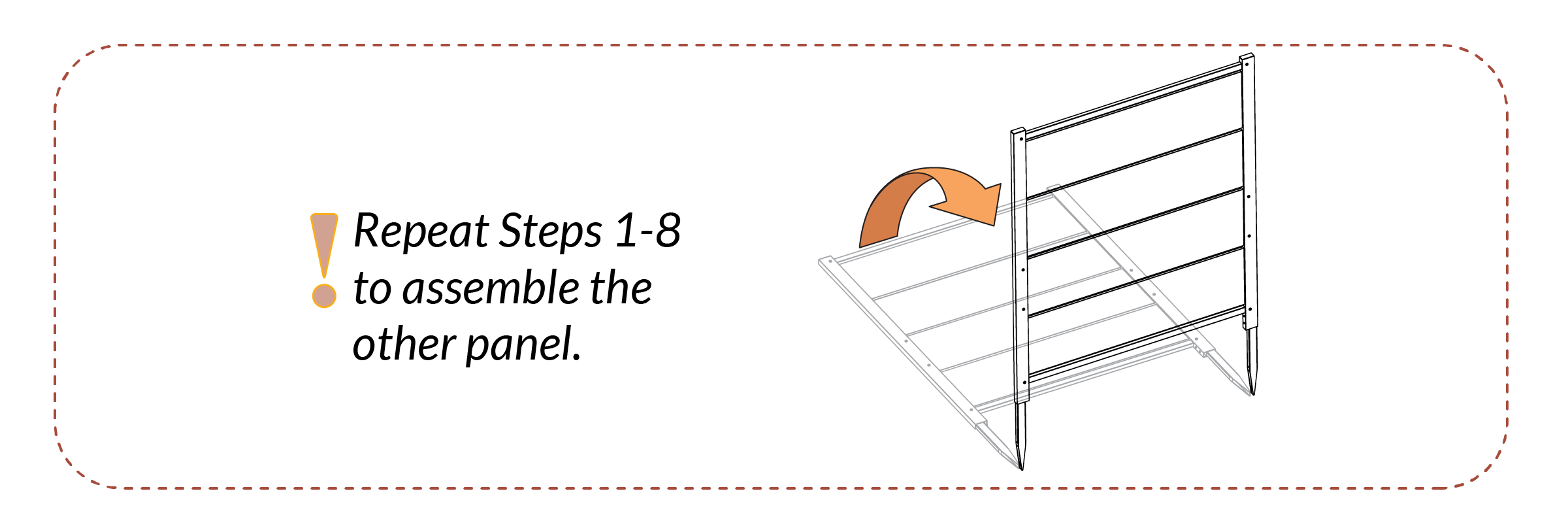

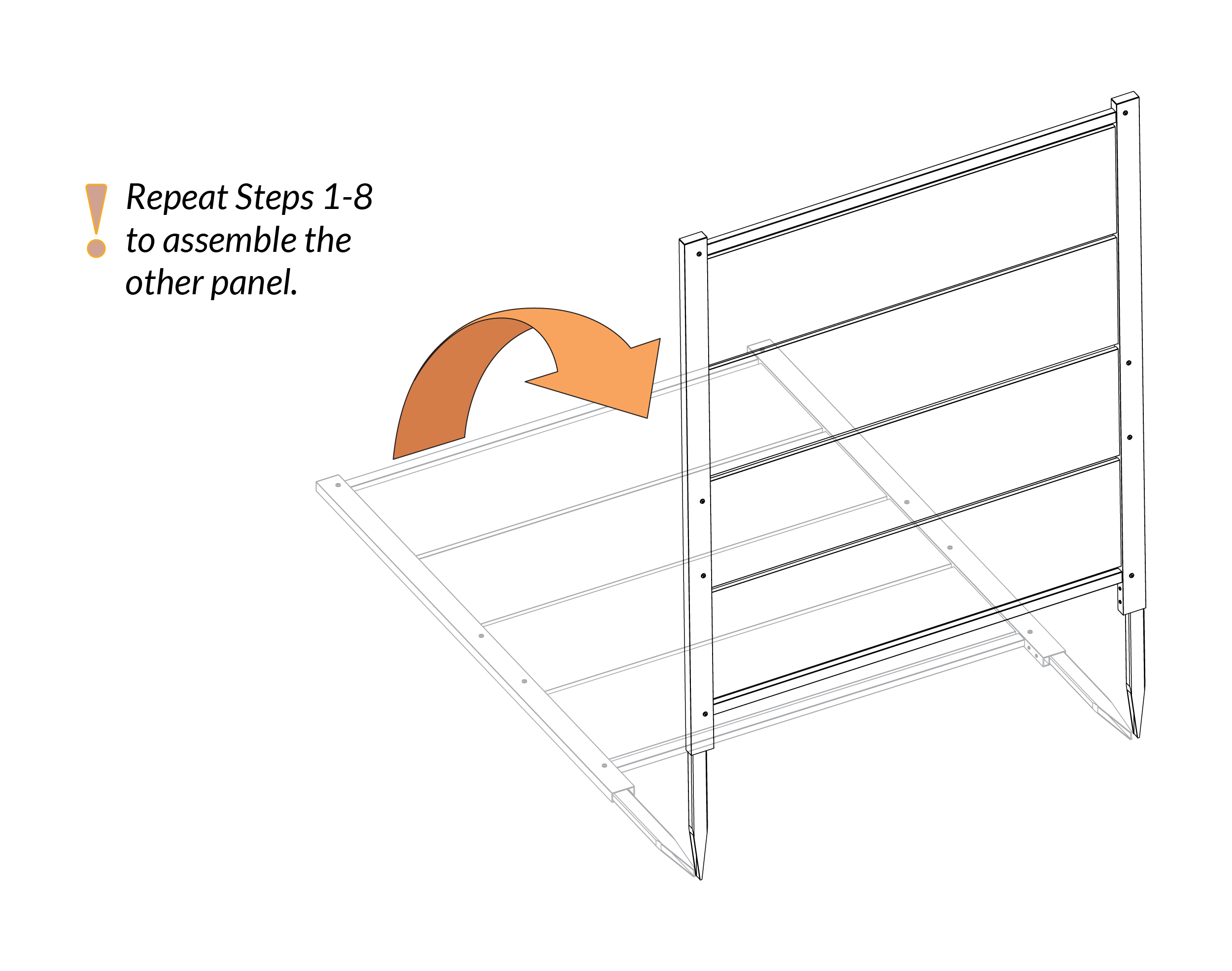

  • Repeat Steps 2–9 to assemble the second panel.

Step 11

Step 10

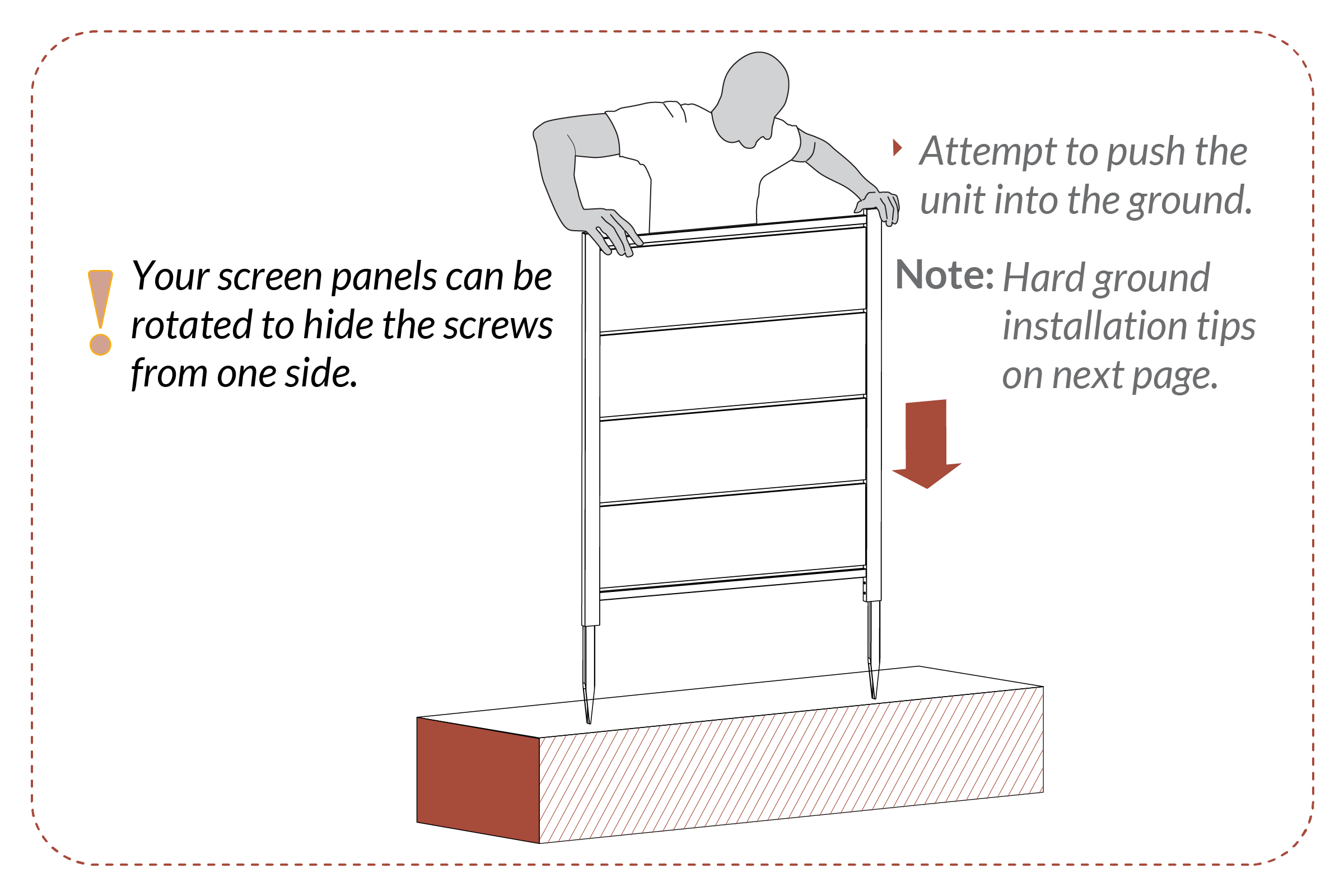

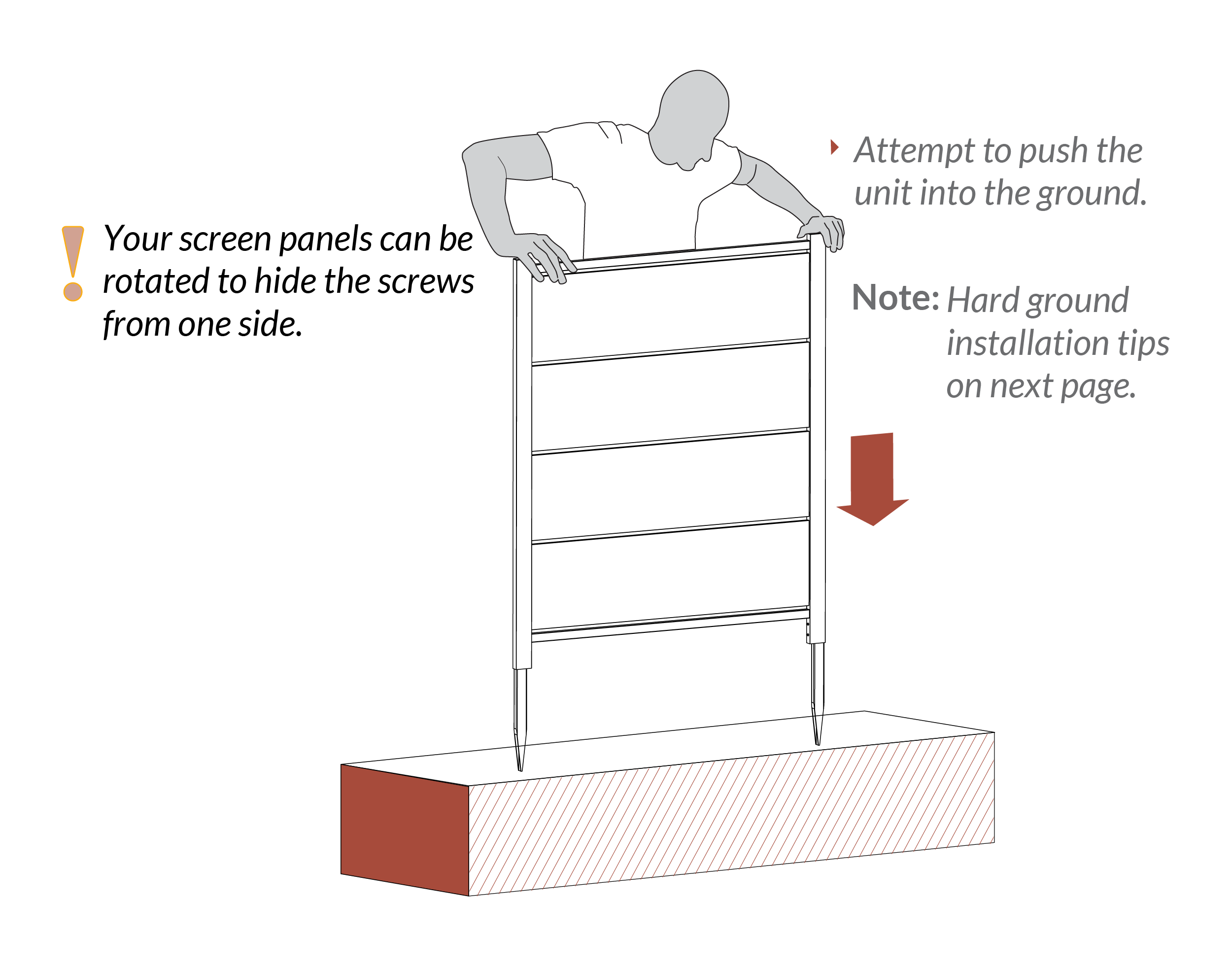

  • Attempt to push the assembled unit into the ground.
  • Your screen panels can be rotated to hide the screws from one side.

Step 12

Step 11

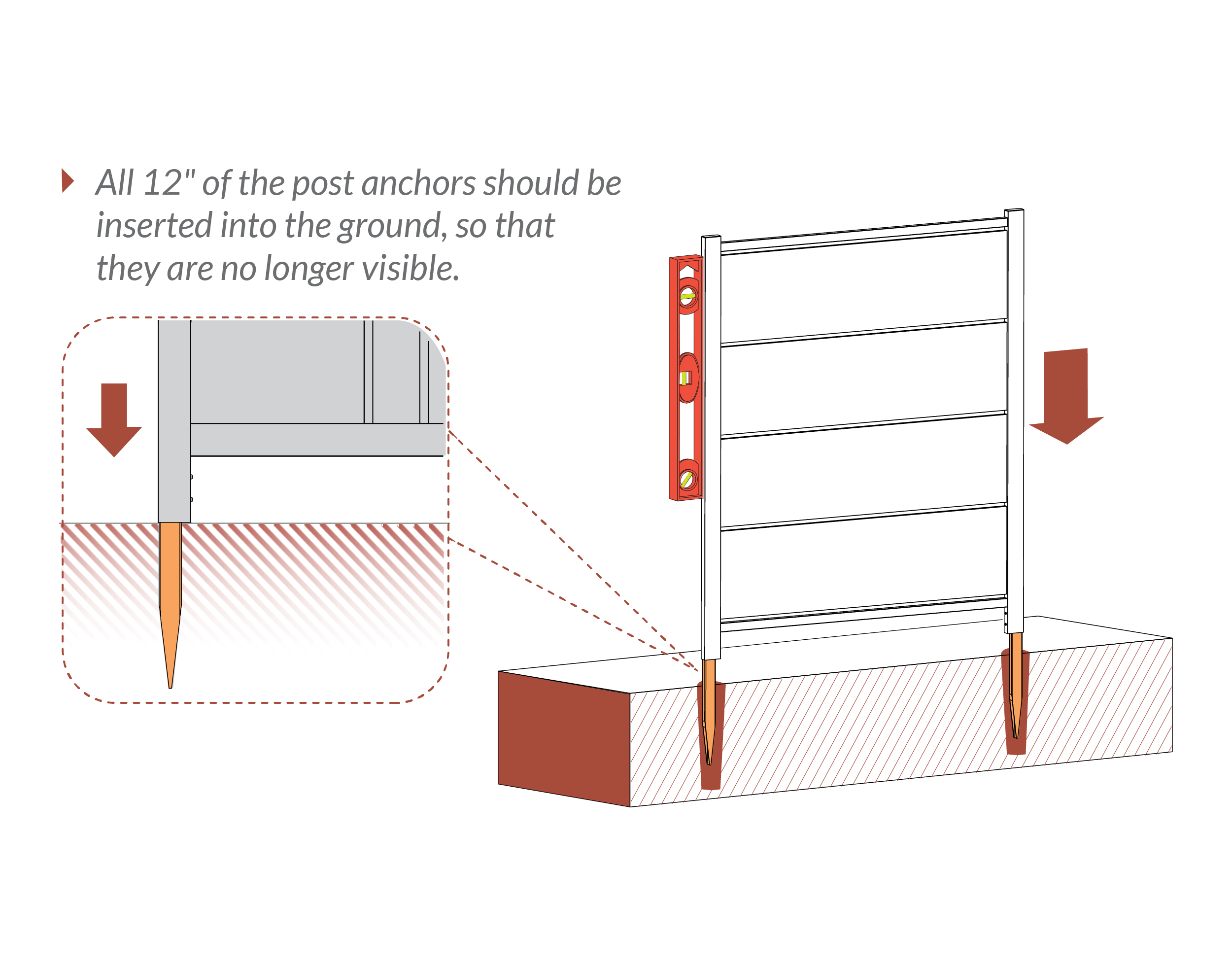

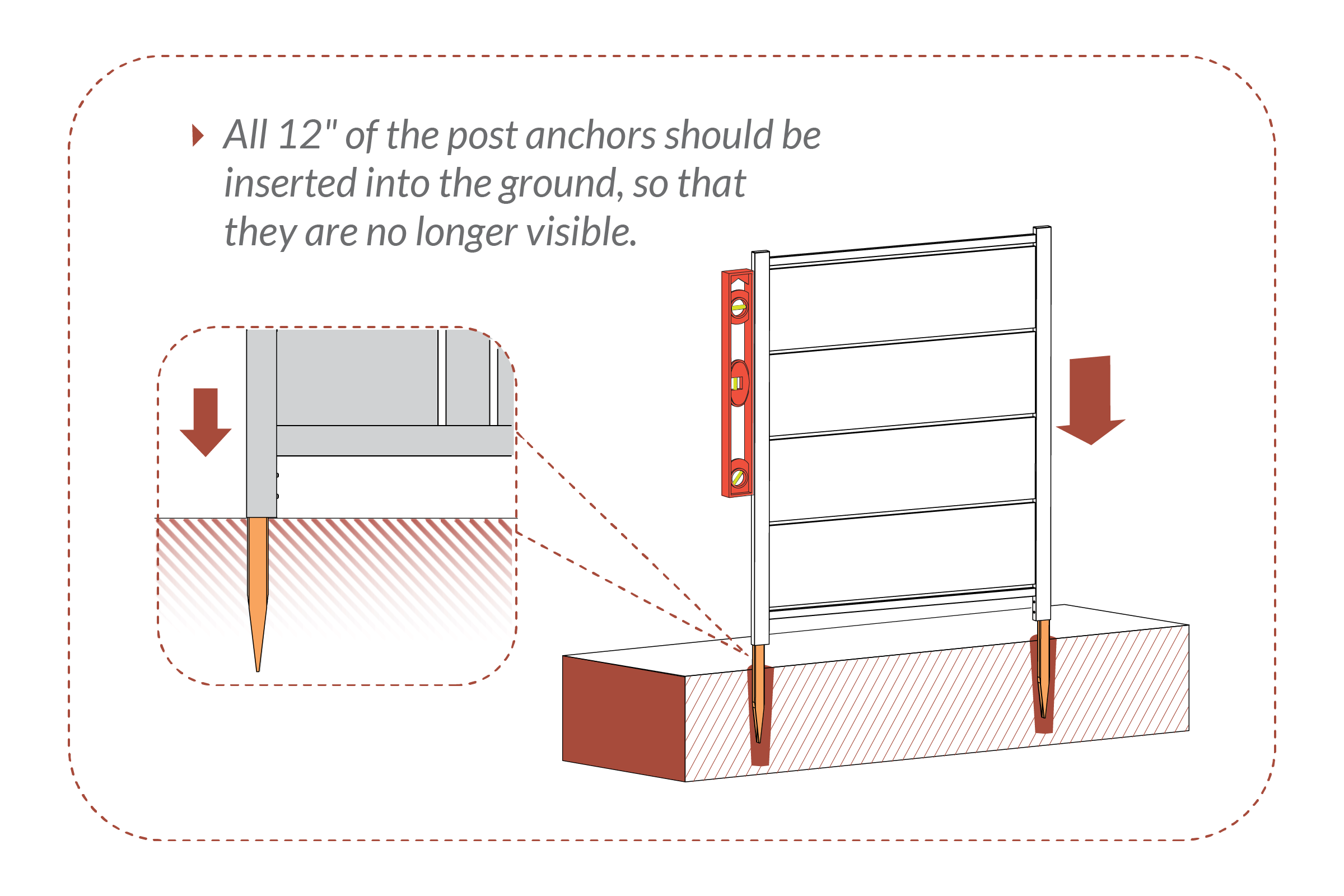

  • All 12" of Post Anchors (C) must be fully inserted into the ground.

Step 13

Step 12

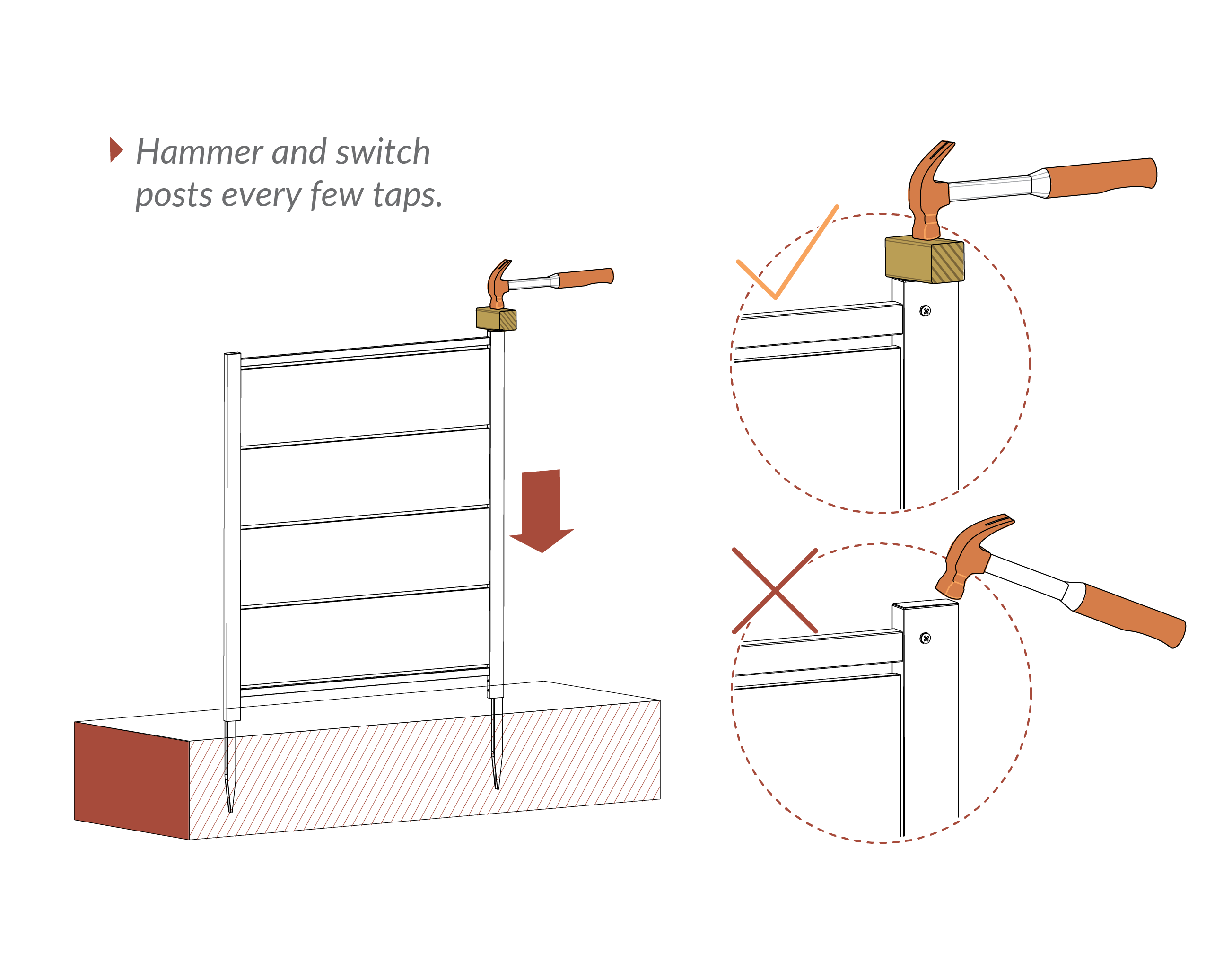

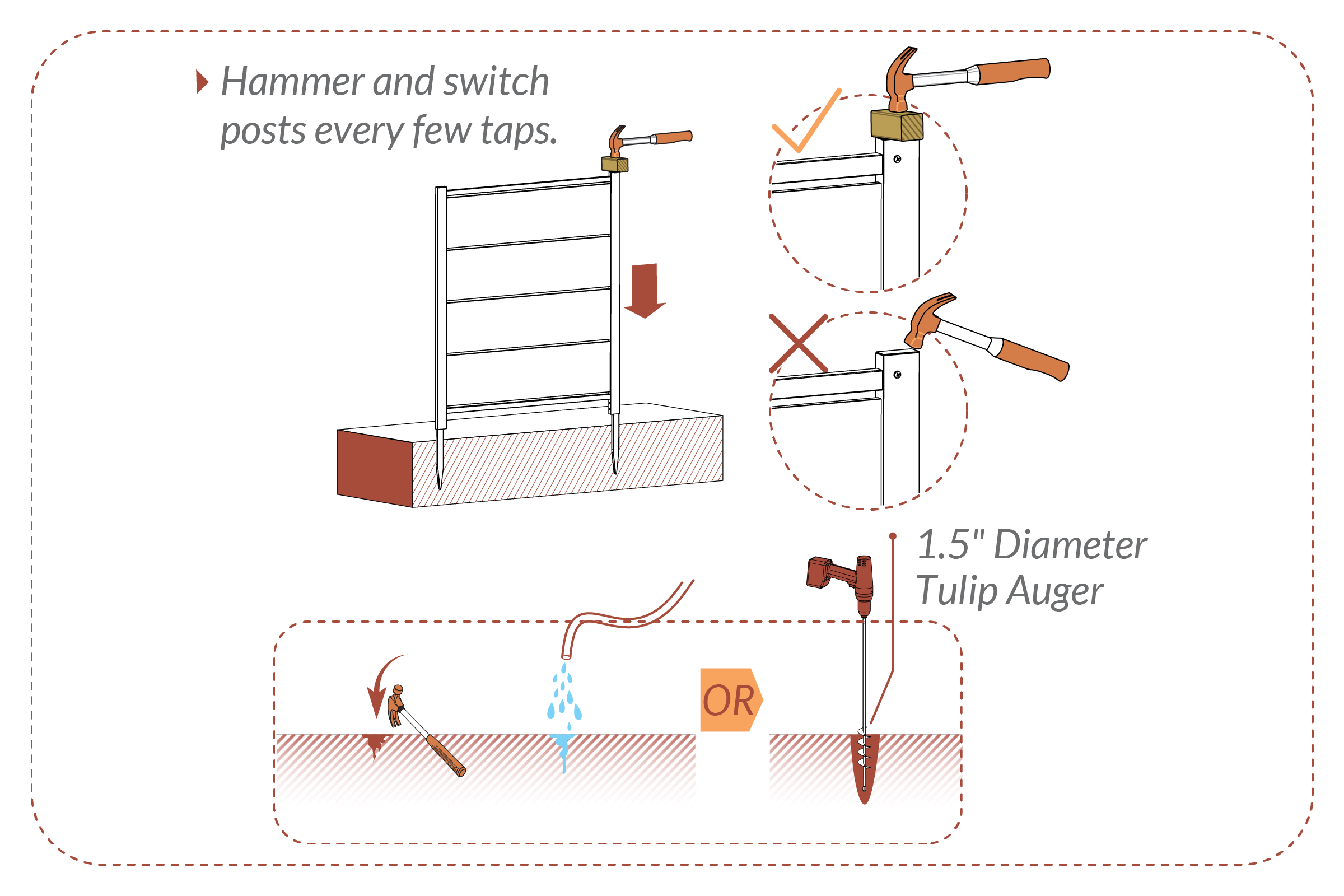

  • Hammer and switch posts every few taps to drive evenly into the ground.
  • If using a hammer, place a block of wood on top of the posts to avoid damaging them.

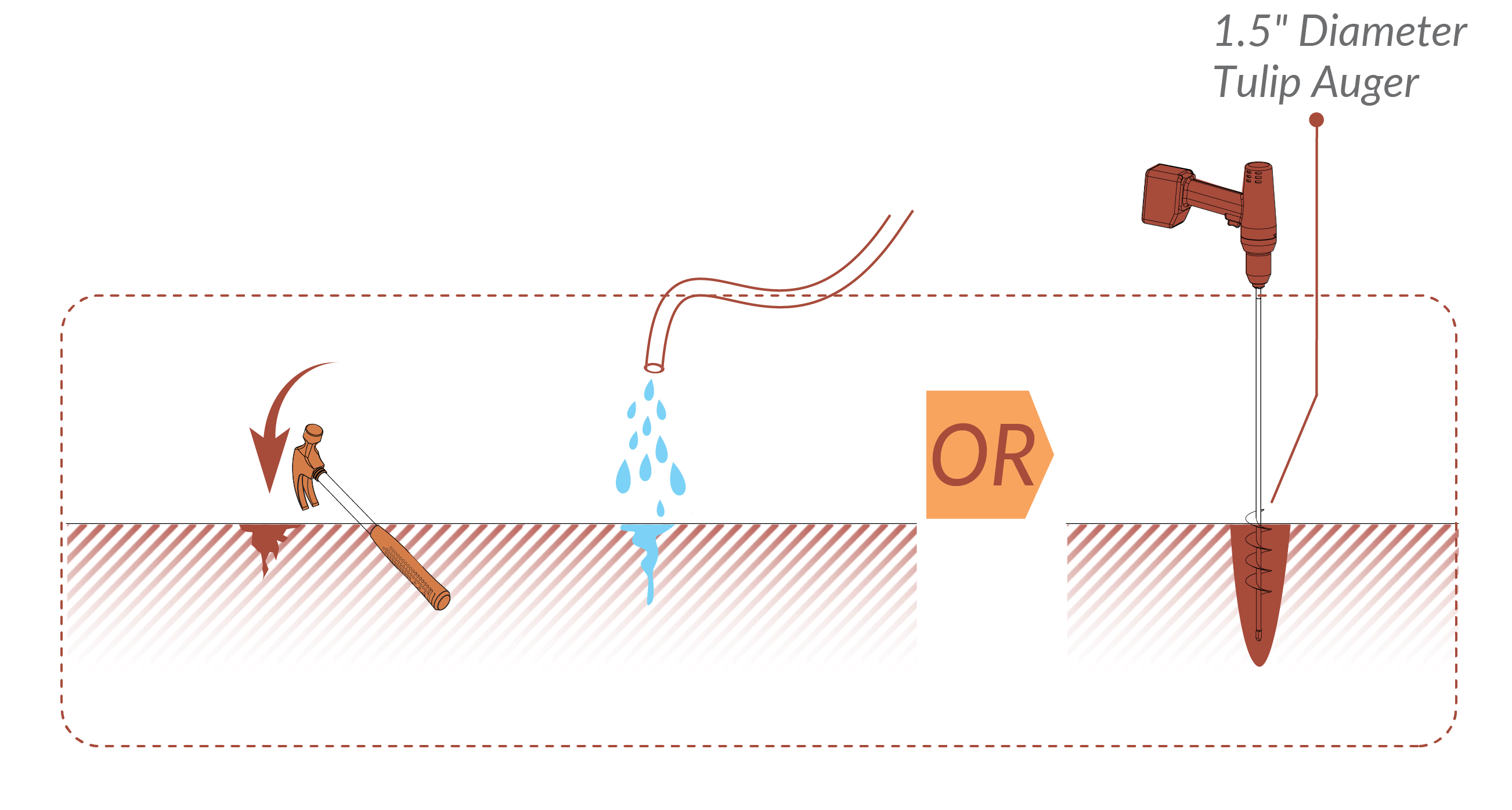

For Hard Ground: Soften soil with the claw side of a hammer and water, or use a cordless drill with a 1.5" diameter tulip auger.

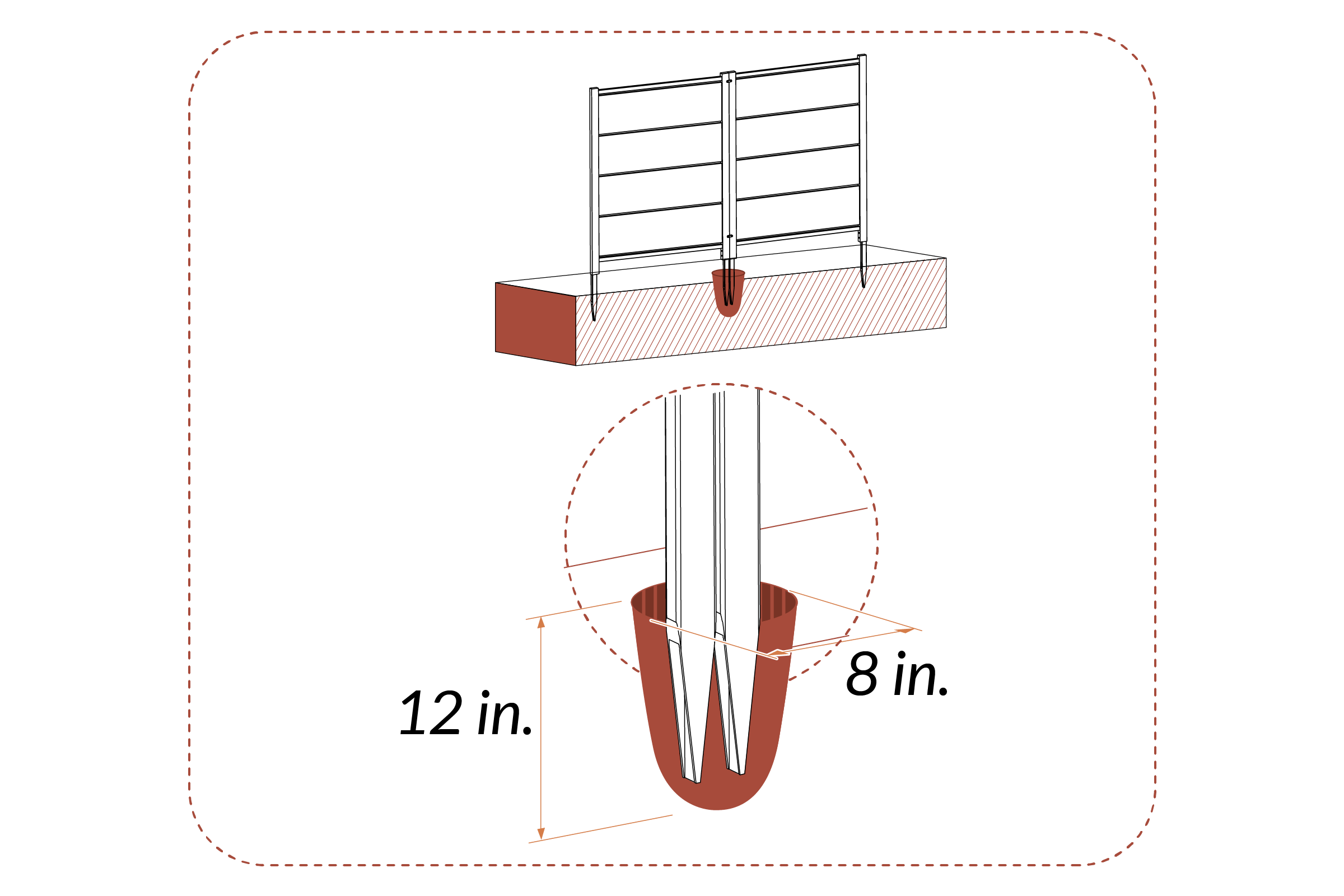

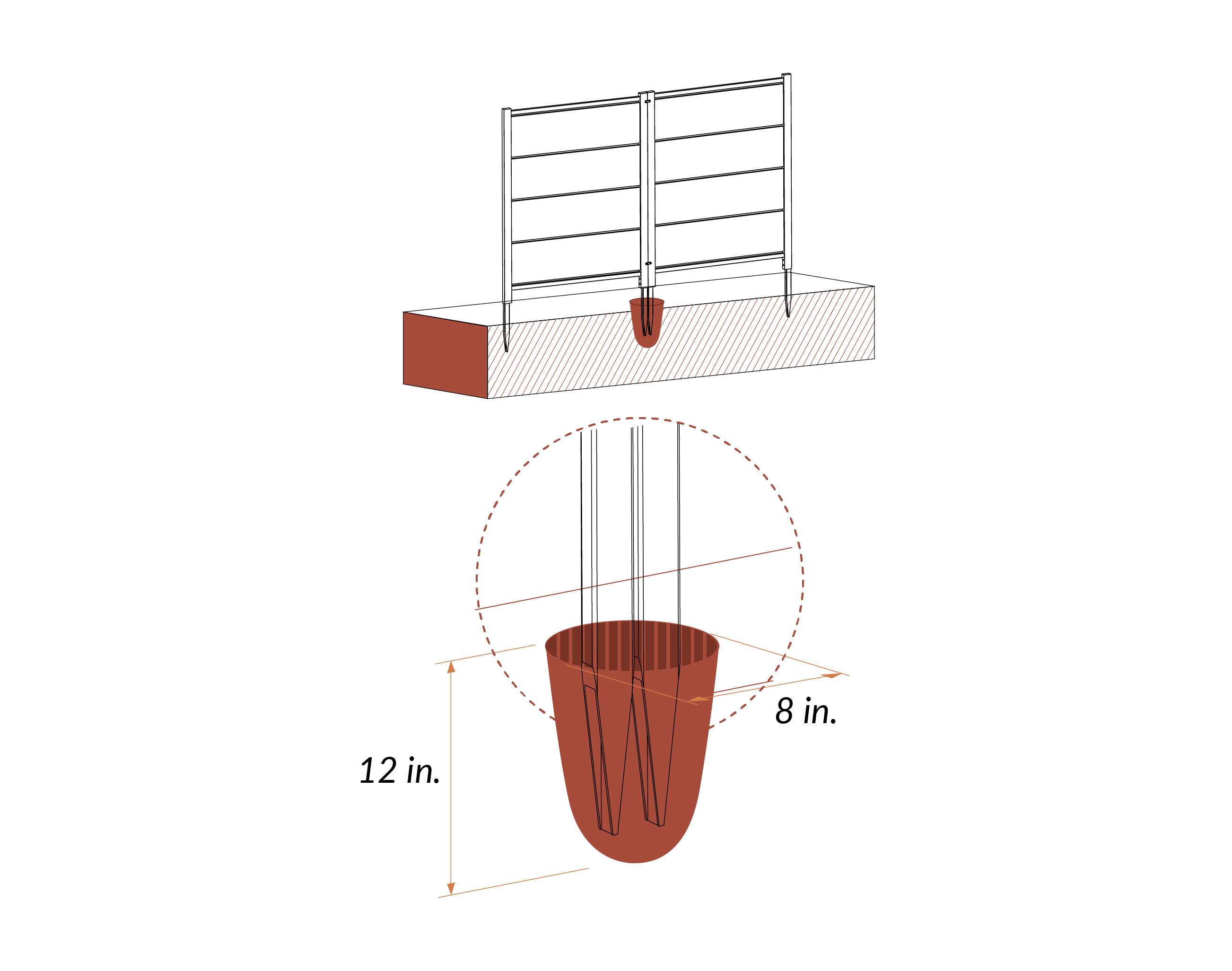

For Harder Ground: Dig a hole large enough to accommodate one post from each panel (approximately 8" in diameter and 12" deep), then backfill and compact the dirt.

For Harder Ground

Step 14

F × 2 Part F

G × 4 Part G

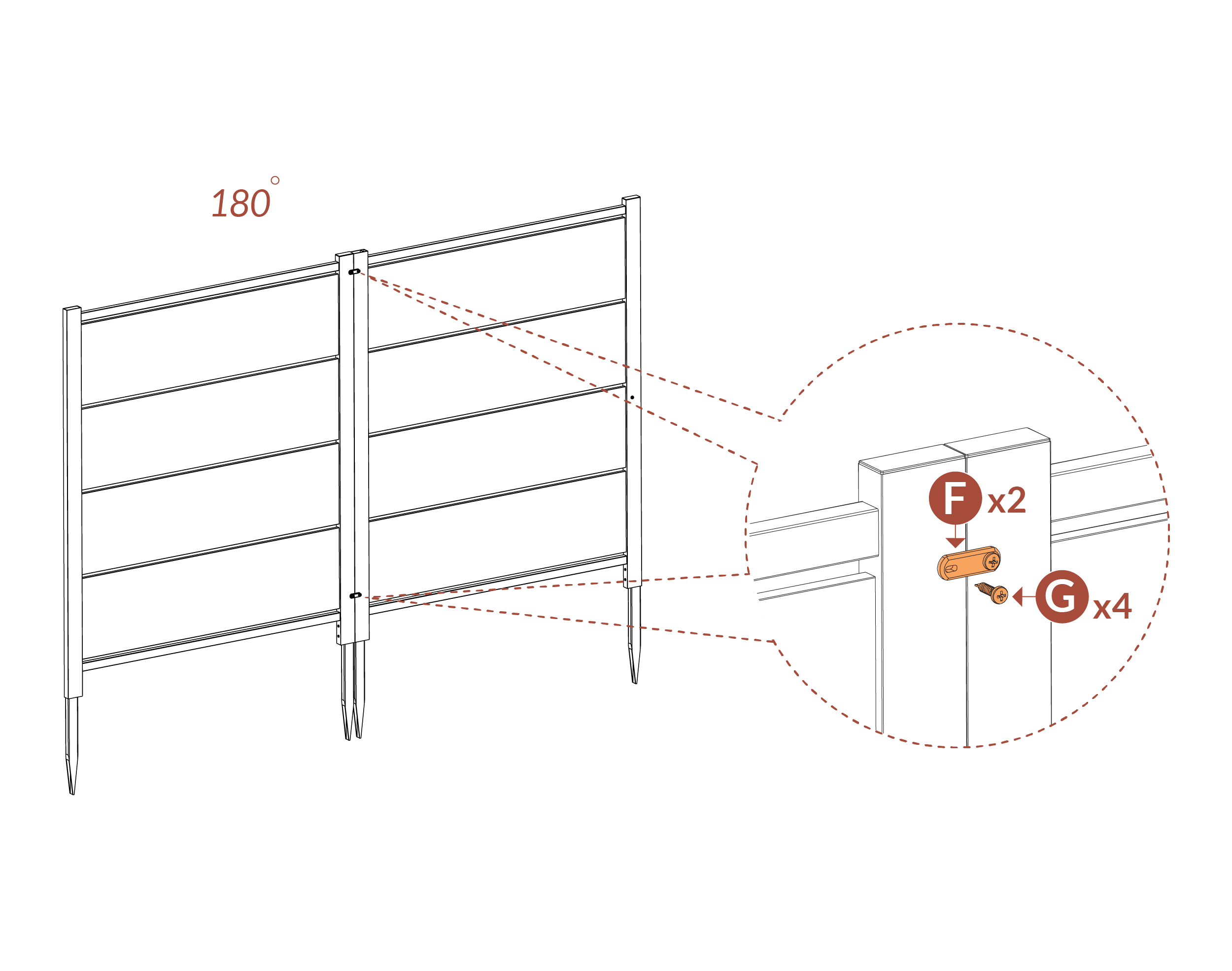

Step 13 — 90° Angle

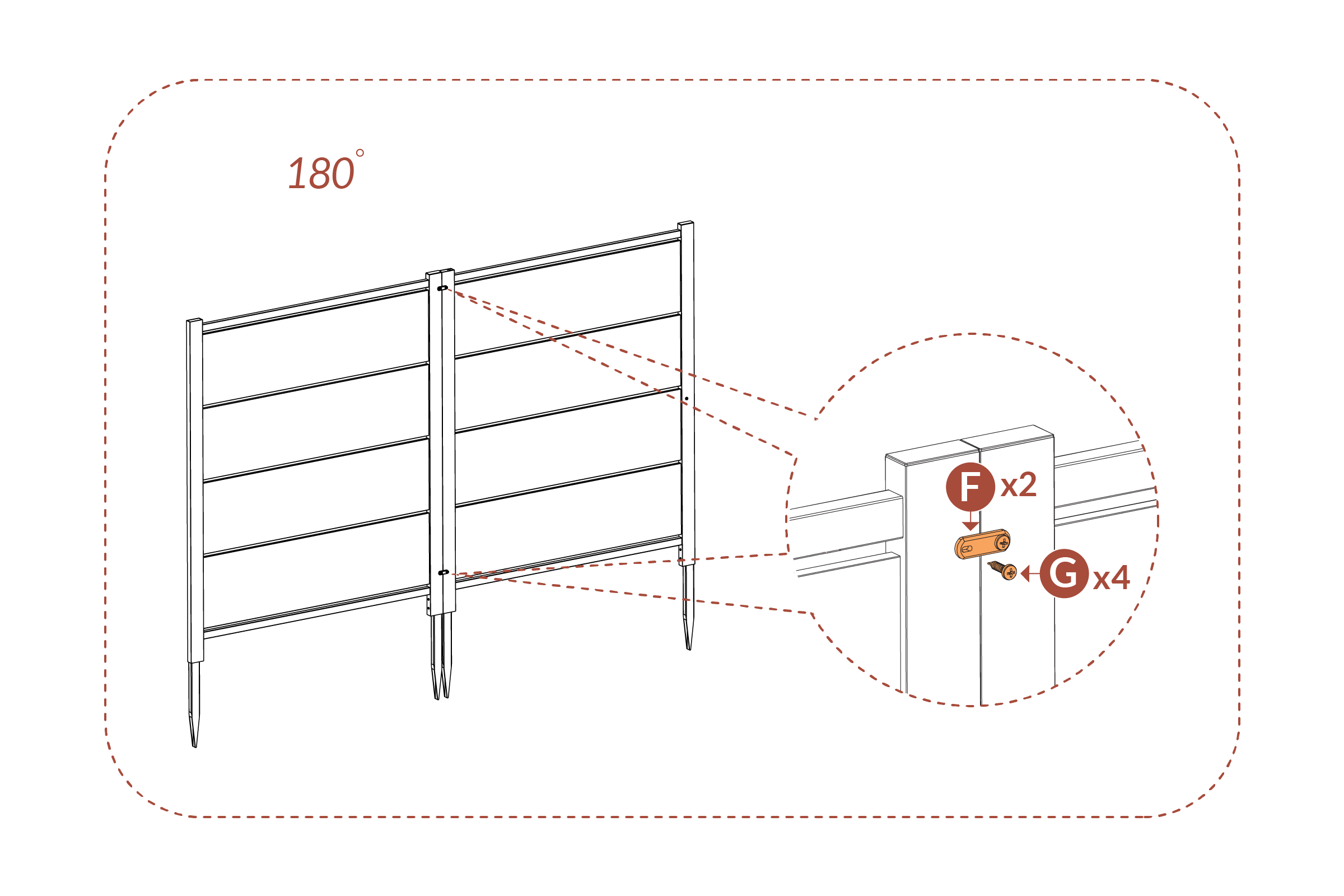

Step 13 — 180° Angle

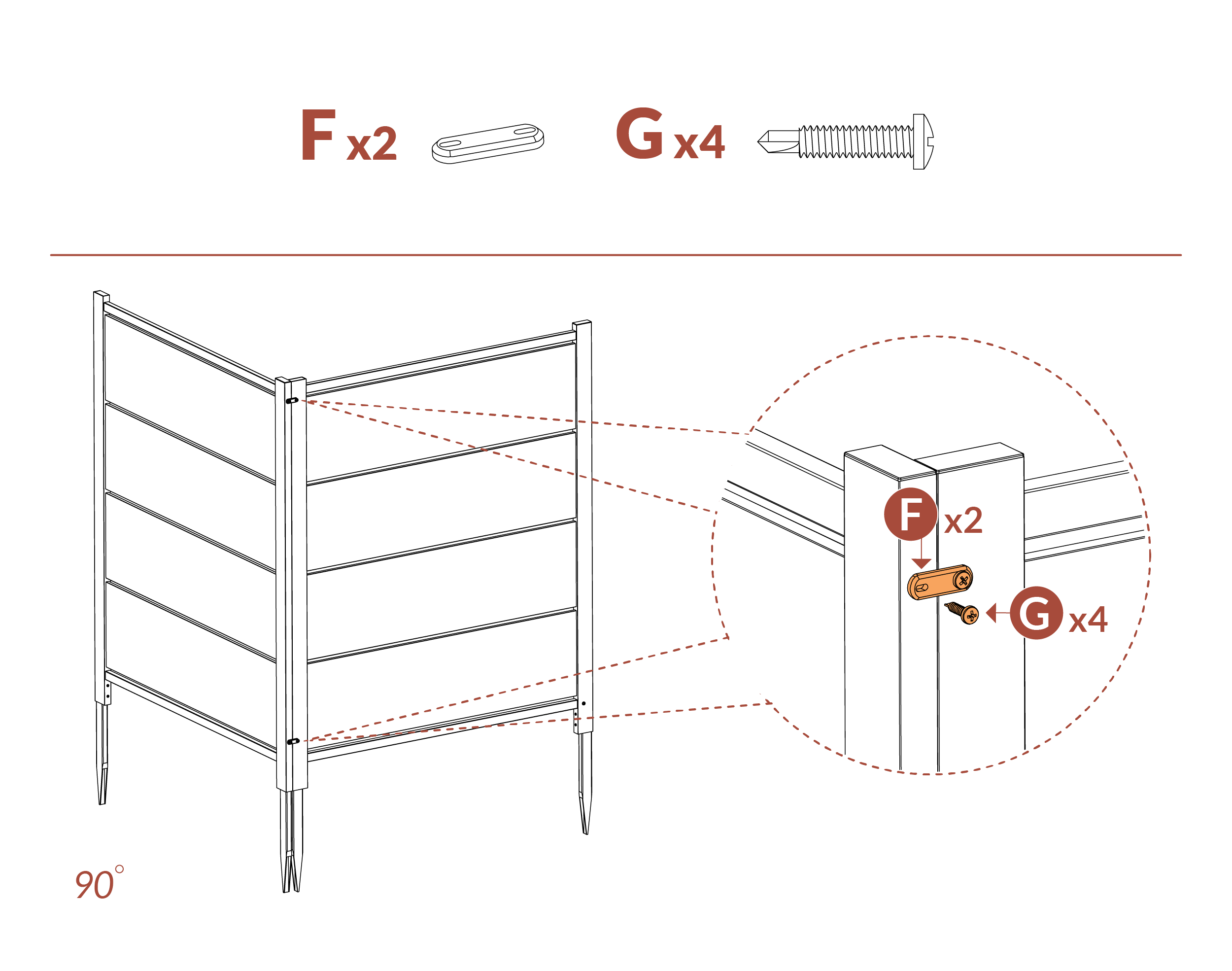

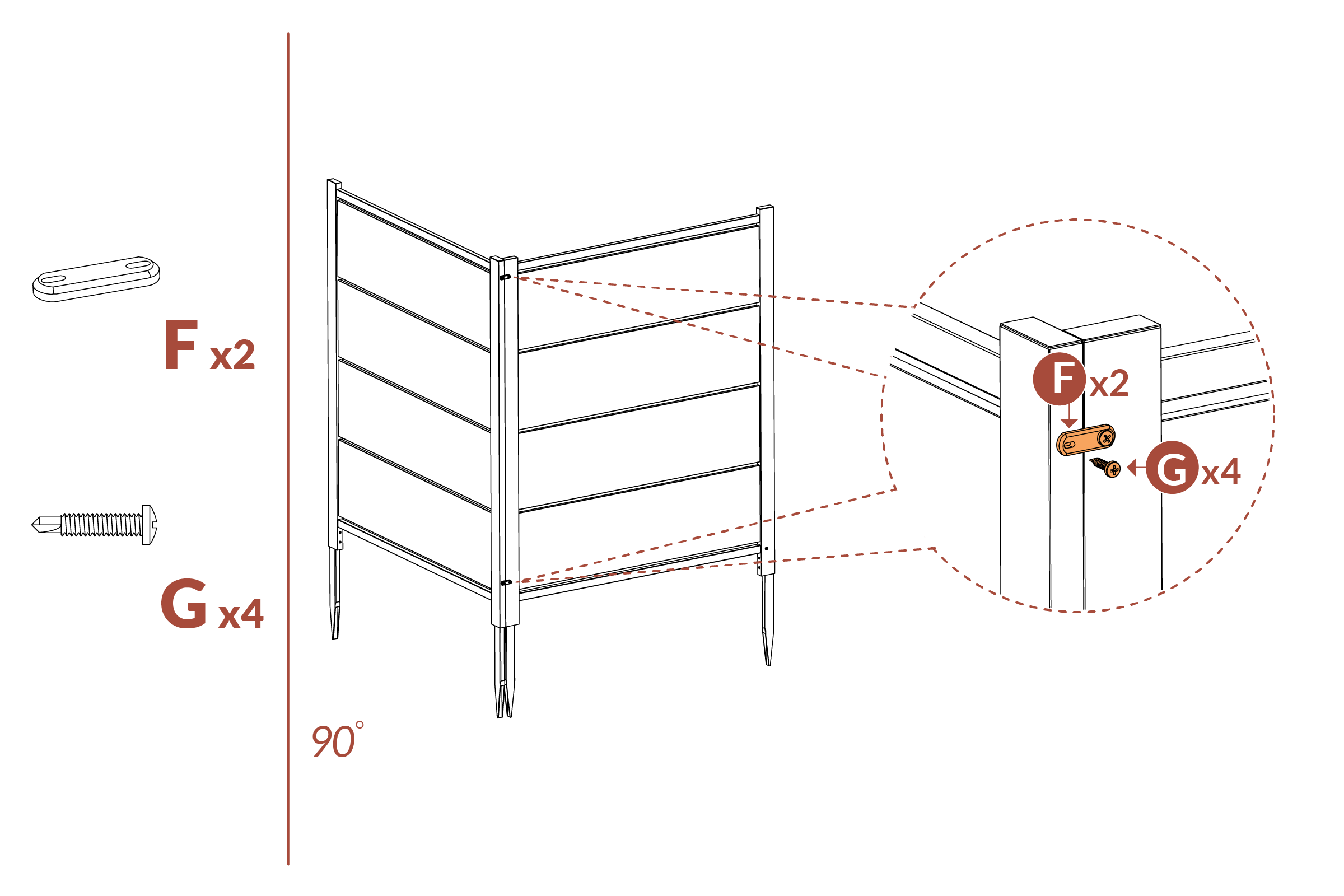

  • Connect the 2 panels using (2) Joiner Clips (F) and (4) ¾" Self-Drilling Stainless Steel Screws (G).
  • Units can be installed at a 90° or 180° layout depending on your preferred configuration.
