General Information

Important Safety Notes:

• Always assemble the product on a flat, stable surface.
• Use proper hand protection when handling metal components and tools.
• Do not fully tighten bolts until all components are properly aligned.
• Ensure the panel is level and secure before leaving it unattended.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@encloscreens.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number EC18042
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Product Specifications:

• Overall panel width: 38 in
• Overall assembled height: 71 ½ in
• Slat spacing: ⅜ in
• Anchor Depth into Ground: 12 ½ in

A — Top Panel (1)

2 in × 23 ¾ in × 38 in

B — Screen Panels (2)

2 in × 24 in × 38 in

C — Bracket (4)

D — Stake (2)

E — Washer (20)

F — Lock Washer (20)

G — Bolt (20)

H — Allen Wrench (1)

I — Wooden Block (1)

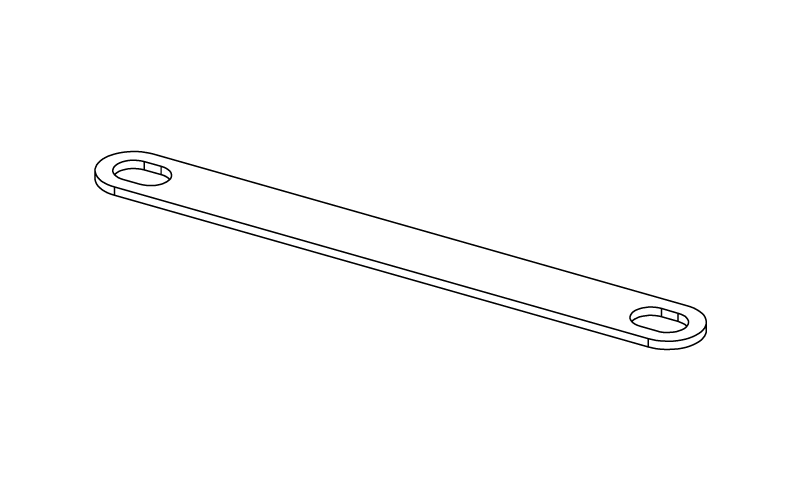

J — Joiner Clips (2)

• Identify the top panel and screen panels before assembly
• Note that Screen Panel (B) has two top screw holes
• Note that Top Panel (A) has no top screw holes
• Install (2) Stakes (D) onto Screen Panel (B) using (4) Washers (E), (4) Lock Washers (F), (4) Bolts (G), and the Allen wrench (H).

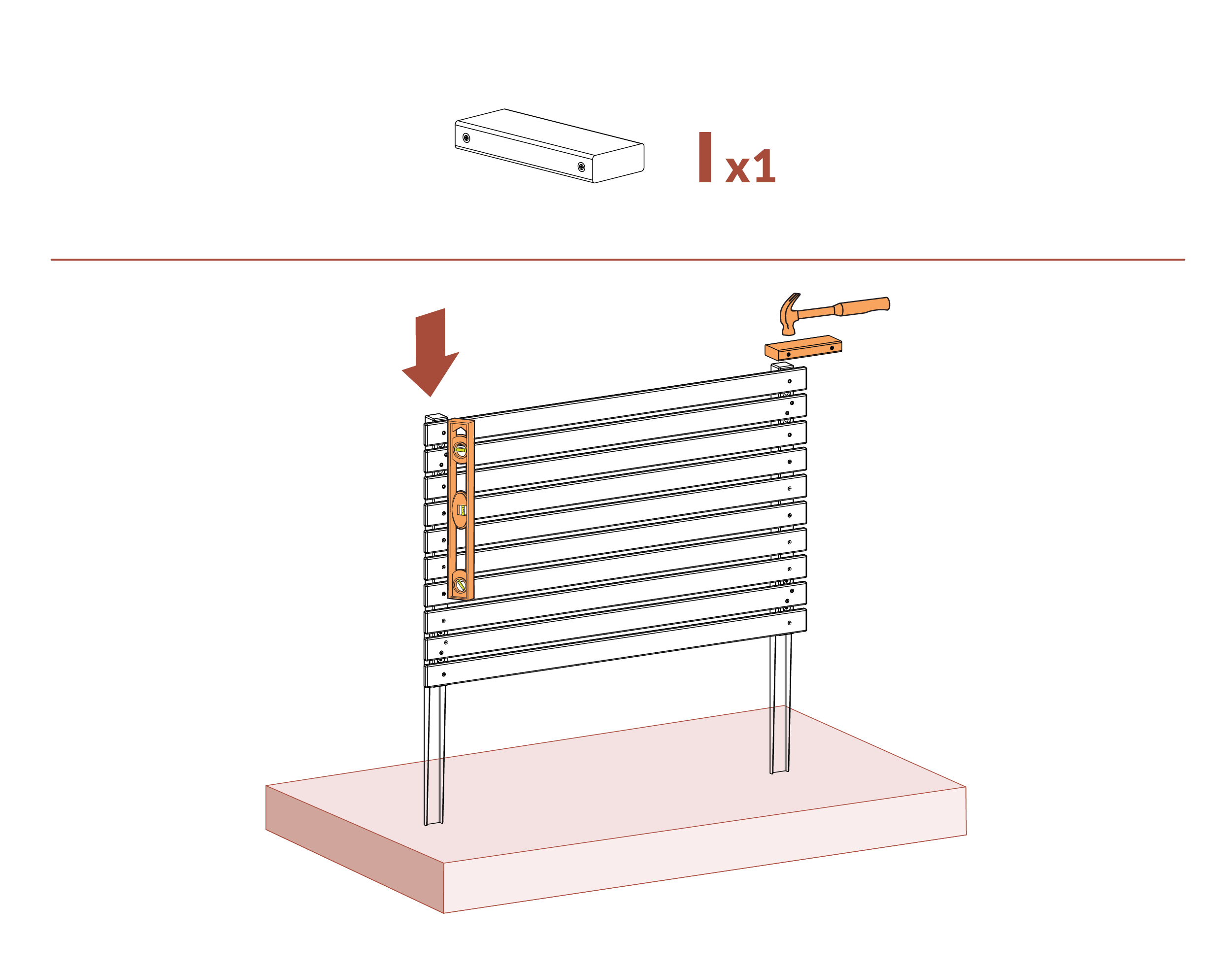

• Insert stakes into the ground
• Use the Wooden Block (I) and a hammer
• Alternate sides while hammering until the panel is level with the ground

• Stack Screen Panel (B) on top of panel in the ground
• Use (2) Brackets (C) and hardware to secure the bottom and middle panel together (hand tighten)
• Stack the Top Panel (A) onto the middle panel (Notice the top panel A has no top screw holes)
• Repeat the process and use (2) Brackets (C) and hardware to secure the middle and top panel (hand tighten)
• Fully tighten at the end with Allen Wrench (H)

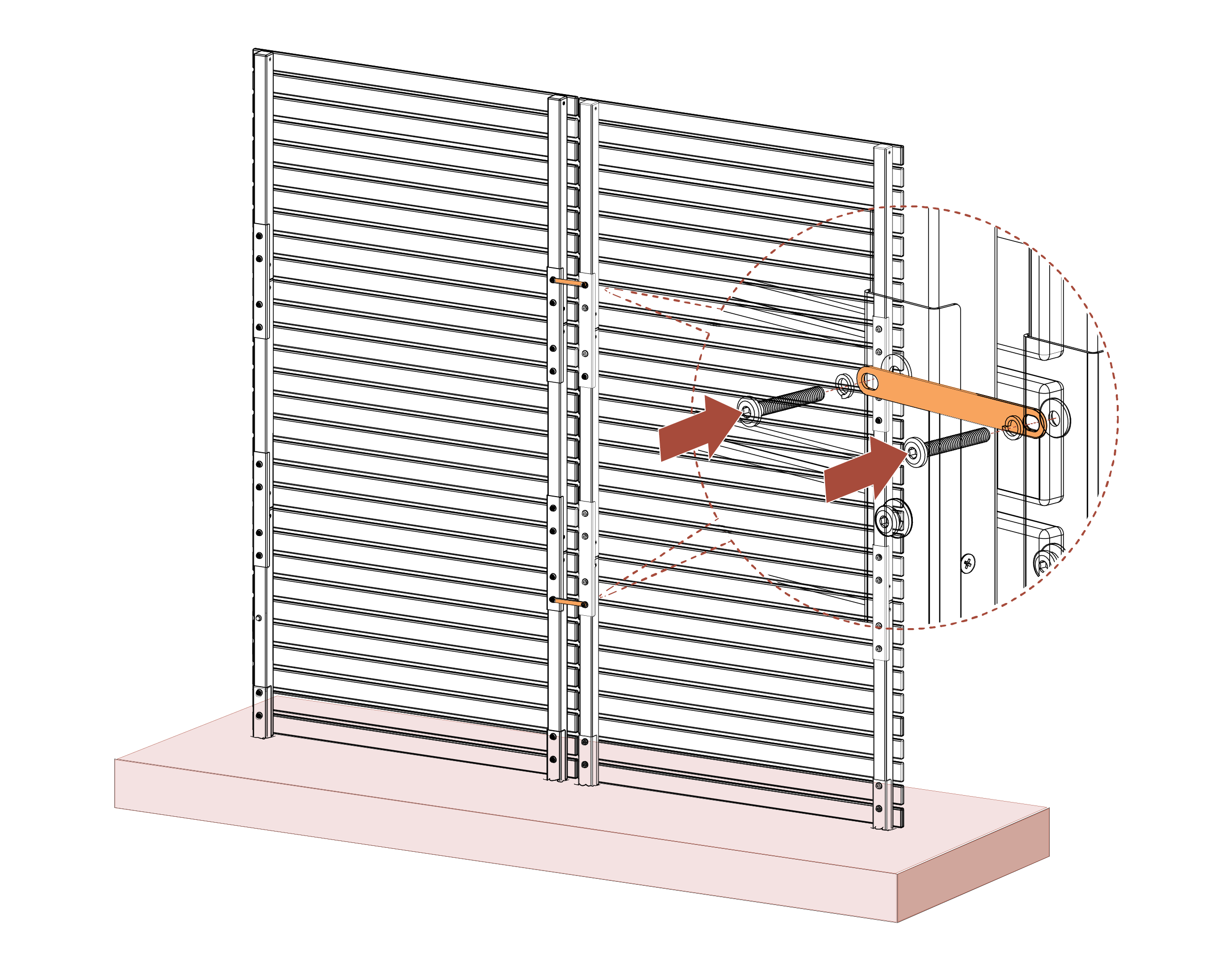

• If you have a second panel, after building it, they can be joined together using joiner clips.
• Insert Joiner Clips (J) between panels
• Reinsert bolts and washers
• Hand tighten all bolts first
• Fully tighten using the included Allen wrench (H)
